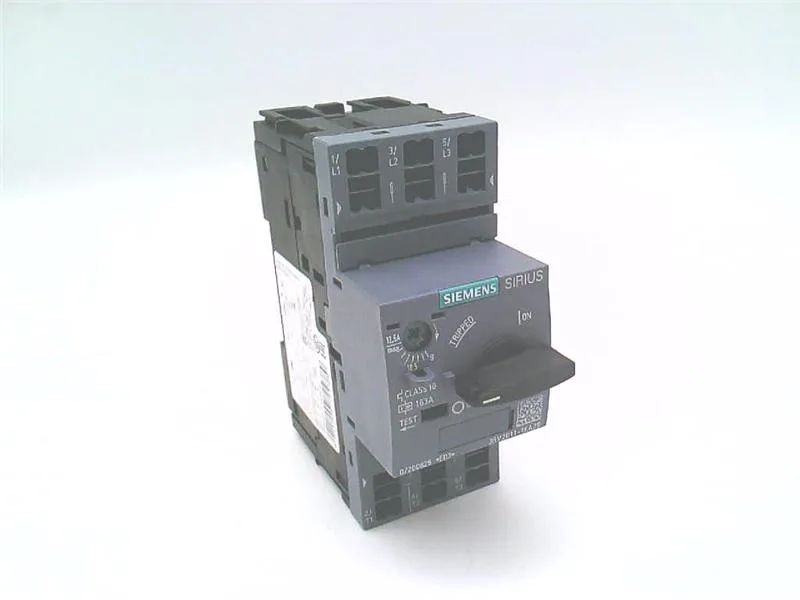

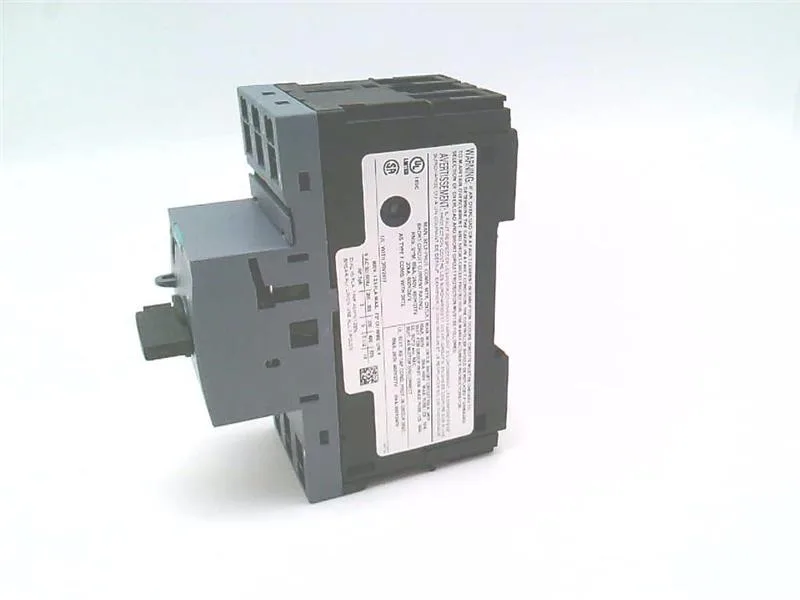

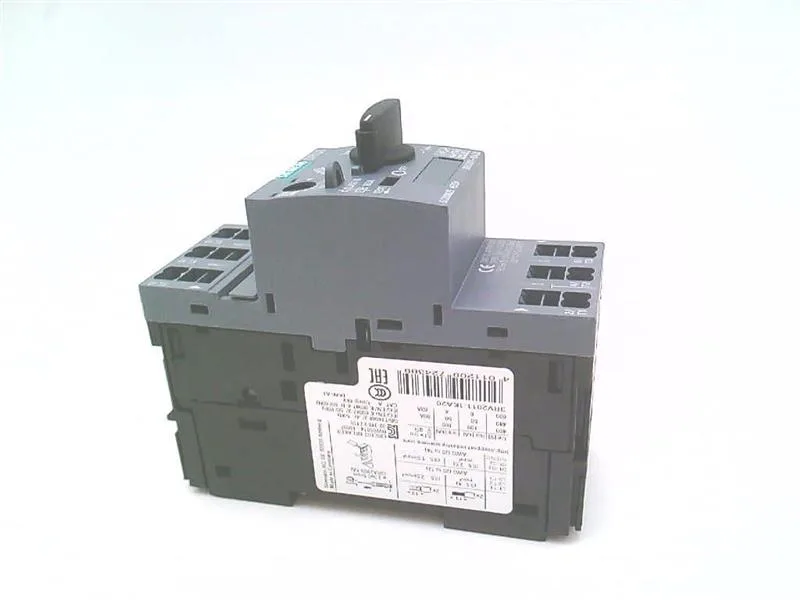

Siemens 3RV2011-1KA20 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-1KA20 SIRIUS Motor Protection Circuit Breake

MPN3RV2011-1KA20
Active

Siemens SIRIUS 3RV2011-1KA20 motor protection circuit breaker, 12.5 A continuous, 100 kA SCCR at 400 V, Class 10 trip, spring-loaded terminals, 45 mm wide.

$35.89Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV2011-1KA20 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-1KA20 — Electrical
ParameterValue
Rated operational current (Ie)12.5 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV2011-1KA20 — Protection & Tripping
ParameterValue
Overload release setting range9 ... 12.5 A
Instantaneous short-circuit trip current163 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)42 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-1KA20 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-1KA20 — Connections
ParameterValue
Main-circuit terminal typespring-loaded terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 2.5 mm²)
Conductor range, AWG (main contacts)2x (20 ... 12)
3RV2011-1KA20 — Mechanical
ParameterValue
Height106 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-1KA20 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-1KA20 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Motor Protection Circuit Breaker, 12.5 A — SIRIUS 3RV2011-1KA20

The Siemens 3RV2011-1KA20 is a SIRIUS-branded motor protection circuit breaker designed specifically for motor protection, with a continuous current rating of 12.5 A at both 480 V and 600 V. Short-circuit breaking capacity is 100 kA at 400 V and 240 V, 42 kA at 500 V, and 4 kA at 690 V, giving solid SCCR headroom for most industrial panel designs.

Mounting and Termination

Dimensions are 45 mm wide, 106 mm high, 97 mm deep — a standard 45 mm module that fits alongside contactors in a motor starter lineup. Required clearance distances: 50 mm upwards and downwards, 30 mm at the sides, zero forwards and backwards.

Frequently asked questions

What are the key ratings for the 3RV2011-1KA20?

Continuous current is 12.5 A at 480 V and 600 V. Short-circuit breaking capacity is 100 kA at 400 V, 42 kA at 500 V, and 4 kA at 690 V. Trip class is Class 10. Phase failure detection is included.

What is the mounting method and required clearance?

It mounts on 35 mm DIN rail per DIN EN 60715, screw or snap-on, in any orientation. Clearances: 50 mm upwards and downwards, 30 mm at sides, zero forwards and backwards.
