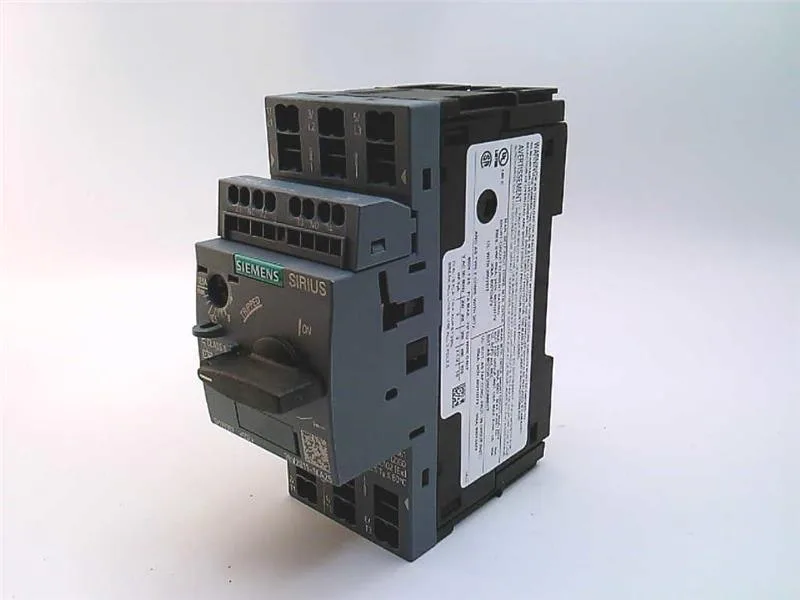

Siemens SIRIUS 3RV2011-1KA25 motor-protective circuit breaker, CLASS 10, 12.5 A at 480/600 V, 100 kA breaking capacity at 240/400 V, spring-loaded terminals, DIN rail mount.
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 12.5 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 9.25 W |
| Power loss, per pole (AC, hot) | 3.1 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 9 ... 12.5 A |
| Instantaneous short-circuit trip current | 163 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 100 kA |
| Breaking capacity at 500 V (AC) | 42 kA |
| Breaking capacity at 690 V (AC) | 6 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 4 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | spring-loaded terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (0.5 ... 2.5 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 1.5 mm²) |
| Conductor range, AWG (main contacts) | 2x (20 ... 12) |
| Parameter | Value |
|---|---|
| Height | 106 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
The 3RV2011-1KA25: Rated at 12.5 A at both 480 V and 600 V, this breaker is sized for a 2 hp motor at 230 V — that's a common frame size for pumps, fans, or small conveyors. CLASS 10 trip curve clears locked-rotor conditions in under 10 seconds.
The spring-loaded terminals accept 2x (0.5 to 2.5 mm²) solid or stranded, so you can land two conductors per side without ferrules. Depth is 97 mm, width 45 mm, height 106 mm.
Yes, the mounting position is any. It fastens via screw or snap-on onto 35 mm DIN rail per DIN EN 60715.
Spring-loaded terminals that accept 2x (0.5 to 2.5 mm²) solid or stranded conductors.
-20 to +60 °C during operation, -50 to +80 °C during storage and transport.
