The Siemens 3RV2021-4CA10 is a SIRIUS-branded motor-protective circuit breaker designed for branch-circuit protection of three-phase motors. Its trip class 10 ensures fast overload clearing during start-up without nuisance trips on normal acceleration curves. Screw and snap-on mounting per DIN EN 60715, any position allowed. Ambient range -20 to +60 °C operating; storage down to -50 °C. Terminals are M4 screw-type for the main current circuit, accepting 2x (1…2.5 mm²) or 2x (2.5…10 mm²) solid or stranded.
Siemens 3RV2021-4CA10 SIRIUS, 100 kA
MPN3RV2021-4CA10
Active

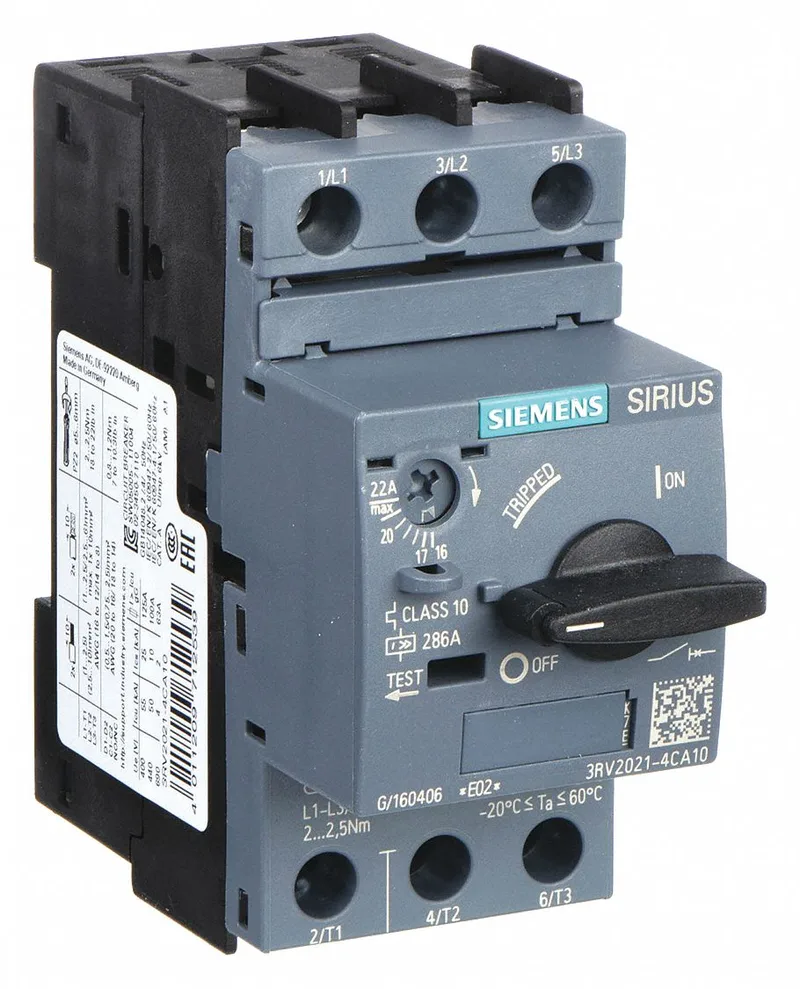

Siemens SIRIUS 3RV2021-4CA10 motor-protective circuit breaker, trip class 10, 45 mm wide, 97 mm deep.
$41.91Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 22 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 10.5 W |
| Power loss, per pole (AC, hot) | 3.5 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 16 ... 22 A |
| Instantaneous short-circuit trip current | 286 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 55 kA |
| Breaking capacity at 500 V (AC) | 10 kA |
| Breaking capacity at 690 V (AC) | 4 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 2 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | screw-type terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| Conductor range, AWG (main contacts) | 2x (16 ... 12), 2x (14 ... 8) |
| Parameter | Value |
|---|---|
| Height | 97 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
Product details
Frequently asked questions
Does it include phase-failure detection?
Yes, phase failure detection is built in. Ground fault detection is not included.
