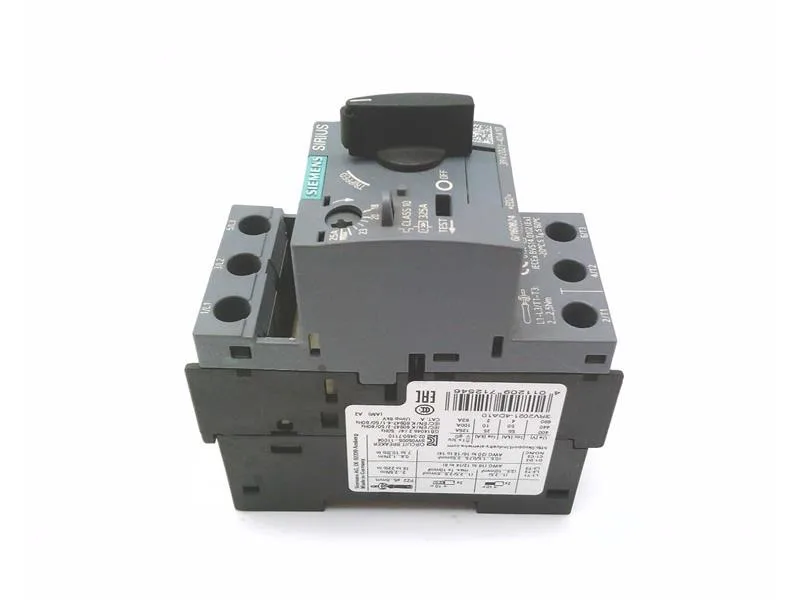

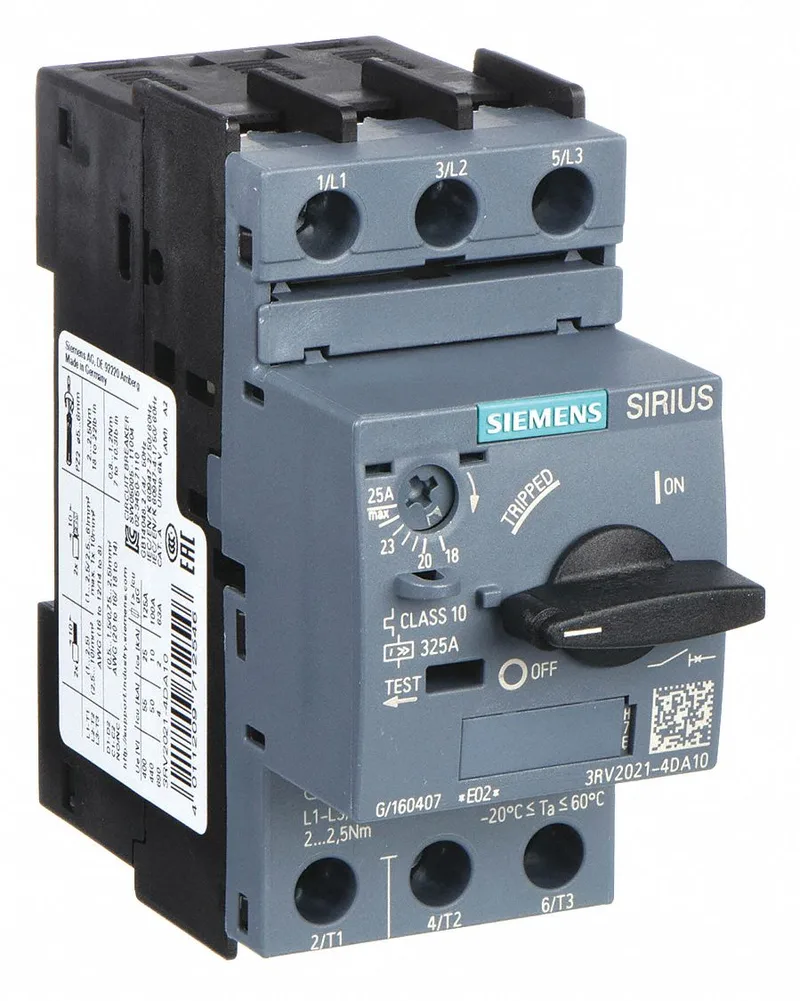

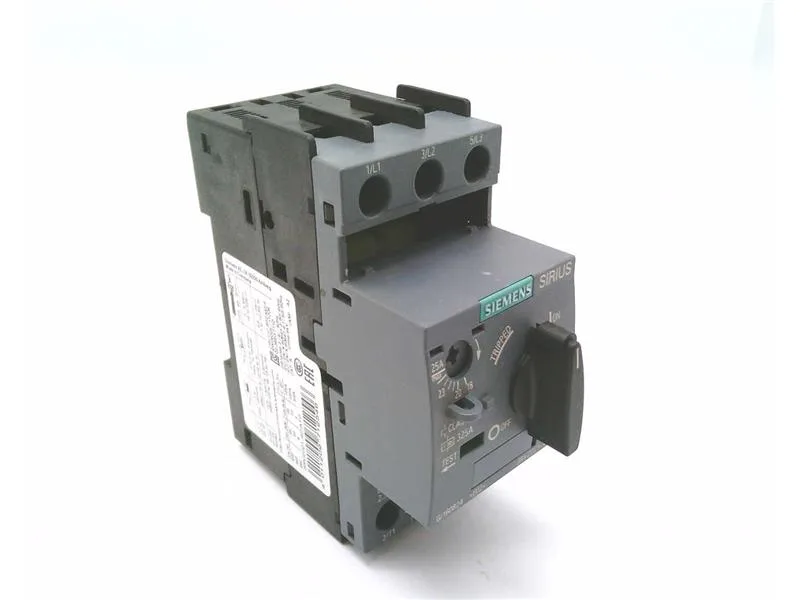

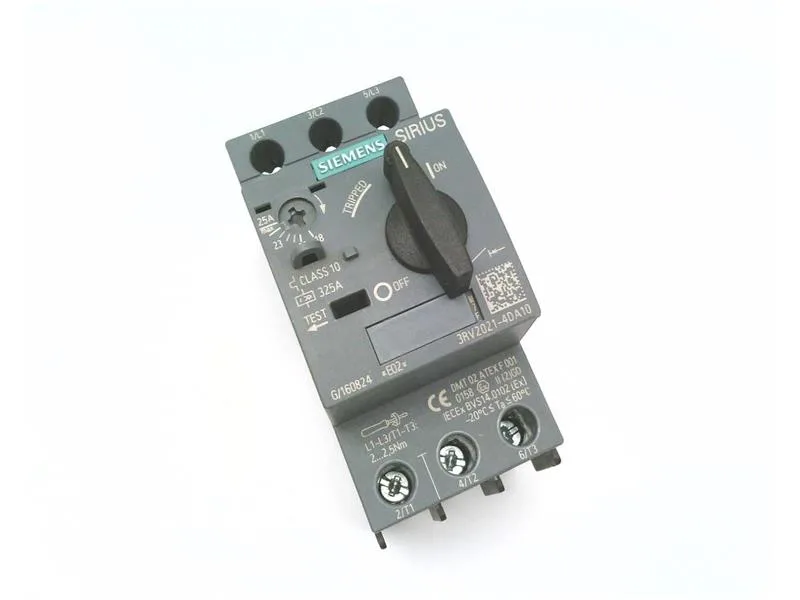

SIRIUS 3RV2021-4DA10 motor protection circuit breaker, CLASS 10, 45 mm wide, screw-type terminals, phase failure detection, current production.
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 25 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 10.5 W |
| Power loss, per pole (AC, hot) | 3.5 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 18 ... 25 A |
| Instantaneous short-circuit trip current | 325 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 55 kA |
| Breaking capacity at 500 V (AC) | 10 kA |
| Breaking capacity at 690 V (AC) | 4 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 2 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | screw-type terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| Conductor range, AWG (main contacts) | 2x (16 ... 12), 2x (14 ... 8) |
| Parameter | Value |
|---|---|
| Height | 97 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
At 400 V, the rated short-circuit breaking capacity is 25 kA, and the gL/gG fuse backup rating is 63 A. The part is 45 mm wide and 97 mm deep.
The screw-type terminals accept 2x (1 to 2.5 mm²) or 2x (2.5 to 10 mm²) solid or stranded wire.
Any mounting position is allowed. Required clearances: 50 mm upwards and downwards, 30 mm at the side, 0 mm forwards and backwards. No special derating needed for side-by-side mounting as long as side clearance is met.
Required clearances: 50 mm upwards, 50 mm downwards, 30 mm at the side, 0 mm forwards and backwards. Mounting position is any.
