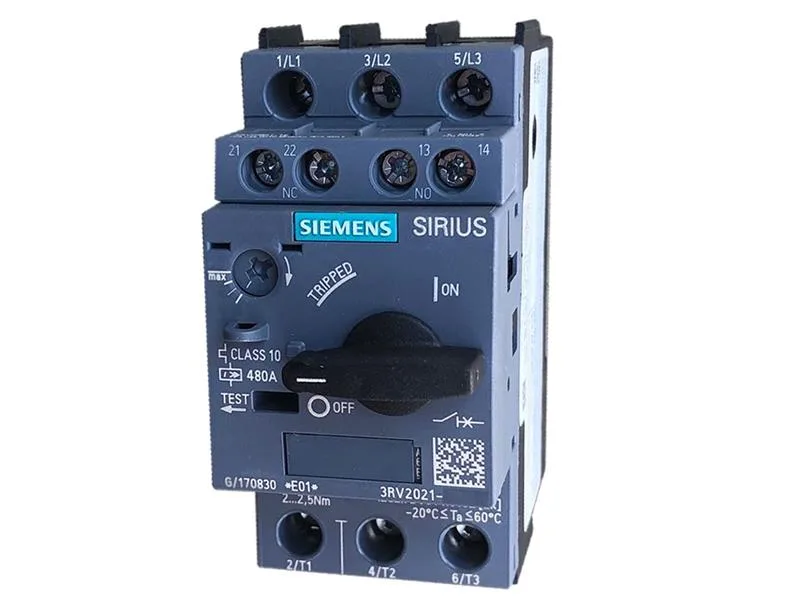

Siemens SIRIUS 3RV2021-4NA15 motor protection circuit breaker, 45 mm wide, CLASS 10, phase failure detection, DIN rail mount.
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 28 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 13.25 W |
| Power loss, per pole (AC, hot) | 4.4 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 23 ... 28 A |
| Instantaneous short-circuit trip current | 364 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 55 kA |
| Breaking capacity at 500 V (AC) | 10 kA |
| Breaking capacity at 690 V (AC) | 4 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 2 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | screw-type terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Parameter | Value |
|---|---|
| Height | 97 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
If you're stocking spares for a SIRIUS-breaker line, this one's worth a slot – it's current, covers the common voltages, and mounts as screw-on or snap-on rail. No phase-fail surprises, no exotic trip curve.
Any mounting position, with clearances: 50 mm up/down, 30 mm sides, 0 mm forward/back. M4 main contact screws, terminal accepts 2x (0.5–1.5 mm²) or 2x (0.75–2.5 mm²) solid/stranded.
45 mm wide, 97 mm deep, 97 mm high.
It is rated CLASS 10.
Screw and snap-on onto 35 mm DIN rail per DIN EN 60715.
