Siemens 3RV2023-1KA10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2023-1KA10 SIRIUS Motor Protection Circuit Breake

MPN3RV2023-1KA10
Active

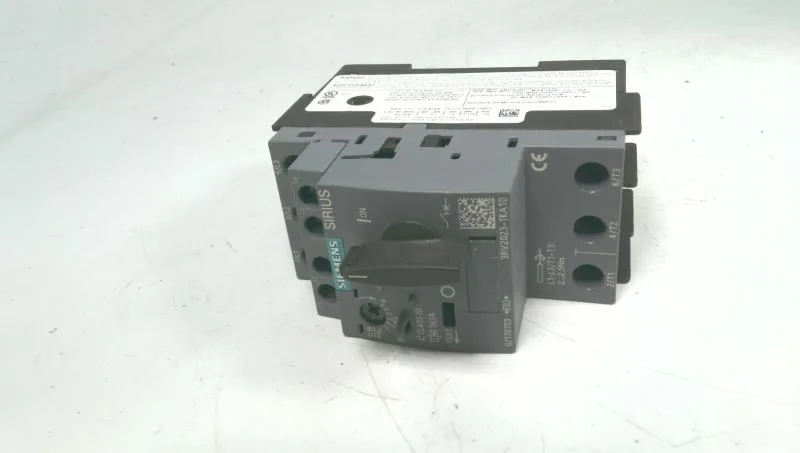

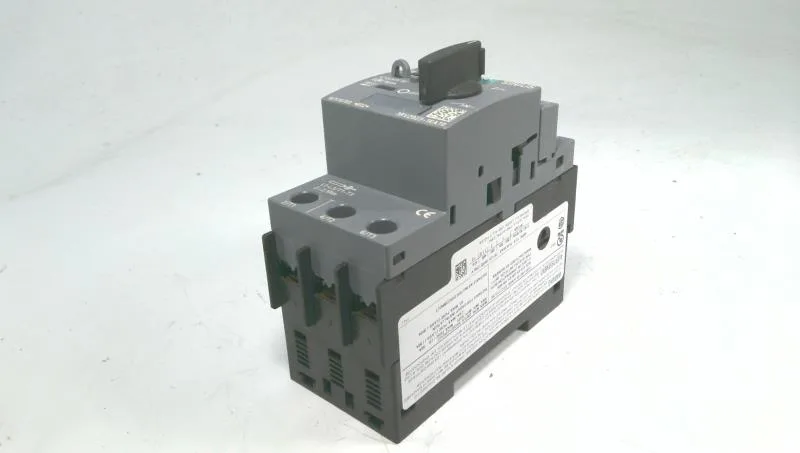

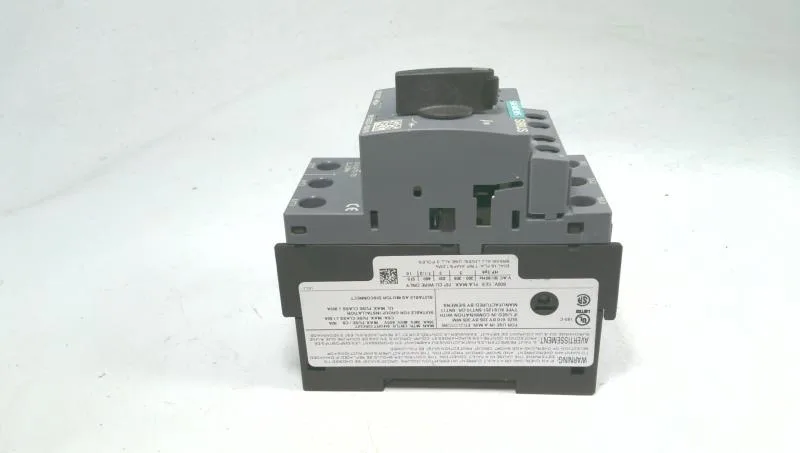

Siemens SIRIUS 3RV2023-1KA10 motor protection circuit breaker, Class 10, size S0, 45 mm wide, screw and snap-on DIN rail mount, 12.5 A at 480/600 V AC-3.

$38.10Ref. price · indicative, final on quote
Siemens 3RV2023-1KA10 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV2023-1KA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS0
3RV2023-1KA10 — Electrical
ParameterValue
Rated operational current (Ie)12.5 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV2023-1KA10 — Protection & Tripping
ParameterValue
Overload release setting range9 ... 12.5 A
Instantaneous short-circuit trip current163 A
Trip classCLASS 10
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2023-1KA10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2023-1KA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
Conductor cross-section, finely stranded with ferrule2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
Conductor range, AWG (main contacts)2x (16 ... 12), 2x (14 ... 8)
3RV2023-1KA10 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2023-1KA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2023-1KA10 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Motor Protection Circuit Breaker, Class 10 — SIRIUS 3RV2023-1KA10

The Siemens 3RV2023-1KA10 is a SIRIUS motor protection circuit breaker in the S0 frame size, designed for motor protection with a Class 10 trip characteristic — meaning it will trip within 10 seconds at 7.2× the thermal setting, which is the standard for protecting standard induction motors during start-up without nuisance tripping on normal inrush. Rated at 12.5 A for AC-3 duty at both 480 V and 600 V, with a breaking capacity of 4 kA at 690 V and 6 kA at AC 690 V, this breaker is sized for motor branch circuits in industrial control panels.

The 45 mm width (S0 frame) fits standard DIN-rail spacing, and the 97 mm depth leaves clearance for wiring behind the panel door. Terminals accept 2× (1 to 2.5 mm²) or 2× (2.5 to 10 mm²) solid or stranded wire, with M4 screws for the main contacts. A Pozidriv size 2 screwdriver tip is specified, with shaft diameter 5 to 6 mm.

Frequently asked questions

What clearance is needed around the 3RV2023-1KA10 in a panel?

Allow 50 mm above and below, 30 mm to the sides, and zero forward or backward clearance. The breaker can be mounted in any position.

Where can I buy the 3RV2023-1KA10?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit a request for quote to confirm current availability and pricing.
