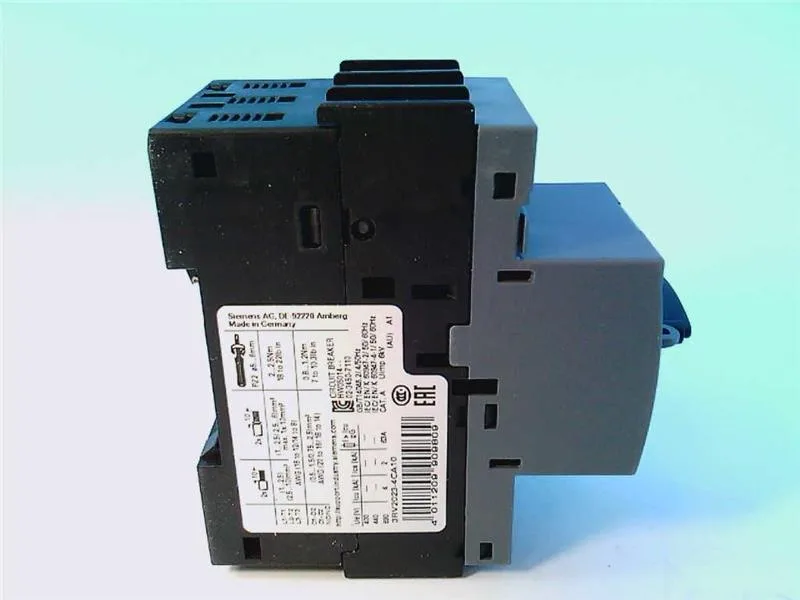

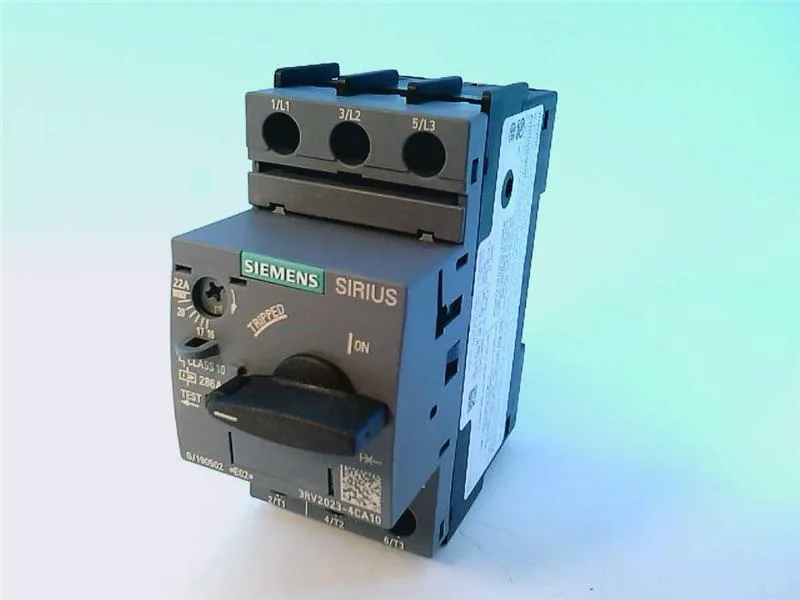

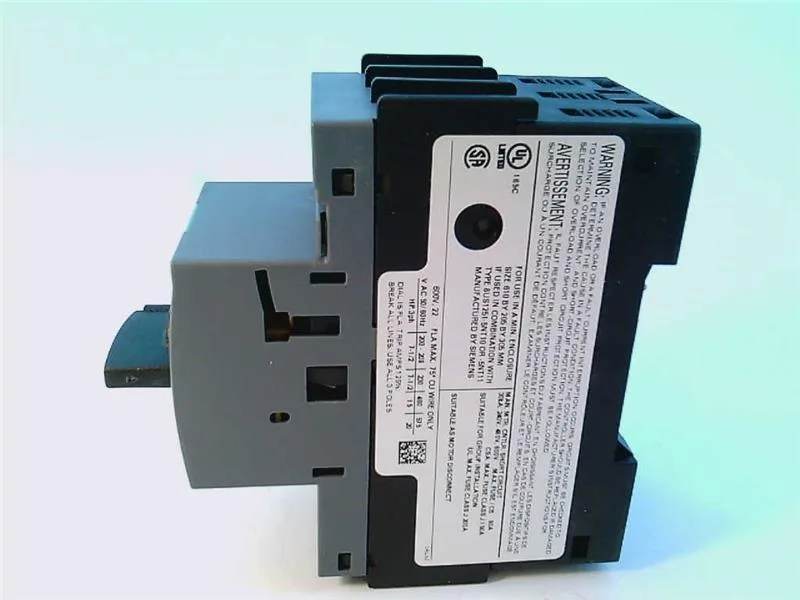

Siemens 3RV2023-4CA10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2023-4CA10 SIRIUS Motor Protection Circuit Breake

MPN3RV2023-4CA10
Active

Siemens SIRIUS motor protection circuit breaker, 3RV2023-4CA10, S0 frame, Class 10, screw terminals, 45 mm wide, for 35 mm DIN rail.

$41.91Ref. price · indicative, final on quote
Siemens 3RV2023-4CA10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2023-4CA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS0
3RV2023-4CA10 — Electrical
ParameterValue
Rated operational current (Ie)22 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)10.5 W
Power loss, per pole (AC, hot)3.5 W
3RV2023-4CA10 — Protection & Tripping
ParameterValue
Overload release setting range16 ... 22 A
Instantaneous short-circuit trip current286 A
Trip classCLASS 10
Breaking capacity at 690 V (AC)4 kA
Breaking capacity at 690 V2 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2023-4CA10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2023-4CA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
Conductor cross-section, finely stranded with ferrule2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
Conductor range, AWG (main contacts)2x (16 ... 12), 2x (14 ... 8)
3RV2023-4CA10 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2023-4CA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2023-4CA10 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Rated for operating voltages from 20 V to 690 V, it handles short-circuit breaking capacities up to 4 kA at 690 V AC and 2 kA at 690 V. The gG fuse coordination is rated at 63 A at 400 V, 50 A at 500 V, and 50 A at 690 V. Motor horsepower ratings span 1.5 hp at 110/120 V up to 20 hp at 575/600 V.

Clearance requirements: 50 mm above and below, 30 mm at the sides. The screw terminals accept 2 × 1–2.5 mm² or 2 × 2.5–10 mm² solid or stranded wire, with an M4 thread for the main contacts. A Pozidriv size 2 screwdriver tip with a 5–6 mm shaft diameter is specified.

Frequently asked questions

Where can I buy 3RV2023-4CA10 and how do I get a price?

The 3RV2023-4CA10 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the closest functional second-source to 3RV2023-4CA10?

The 3RV2023-4DA10 is the closest peer — same S0 frame, same Class 10 trip class, same screw terminals, and same 45 mm width. The difference is the thermal setting range; check your motor FLA against the 4DA10's adjustment band before substituting.

Will 3RV2023-4CA10 drop into a panel specified around 3RV2023-4DA10 without rewiring?

Yes — both share the S0 frame, 45 mm width, 35 mm DIN rail mounting, and screw terminals. The footprint and wiring are identical. Only the thermal setting range differs.

What is 3RV2023-4CA10's listed depth?

97 mm.

What is 3RV2023-4CA10's listed width?

45 mm.
