Siemens 3RV2031-4BA10 — Motor Protection Circuit Breakers (MPCB)

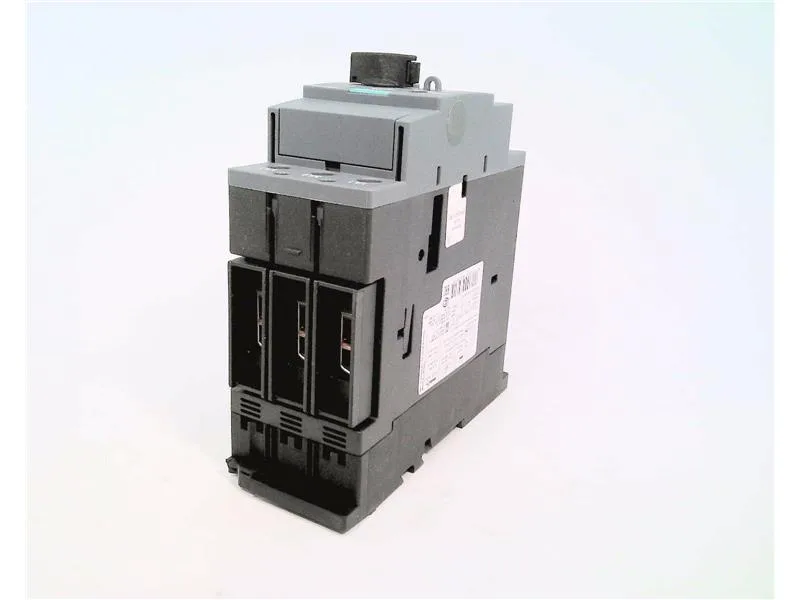

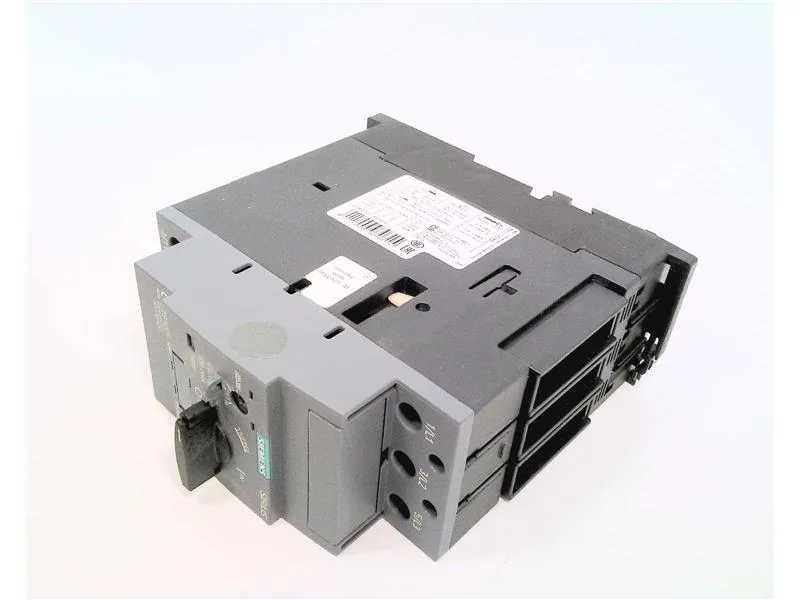

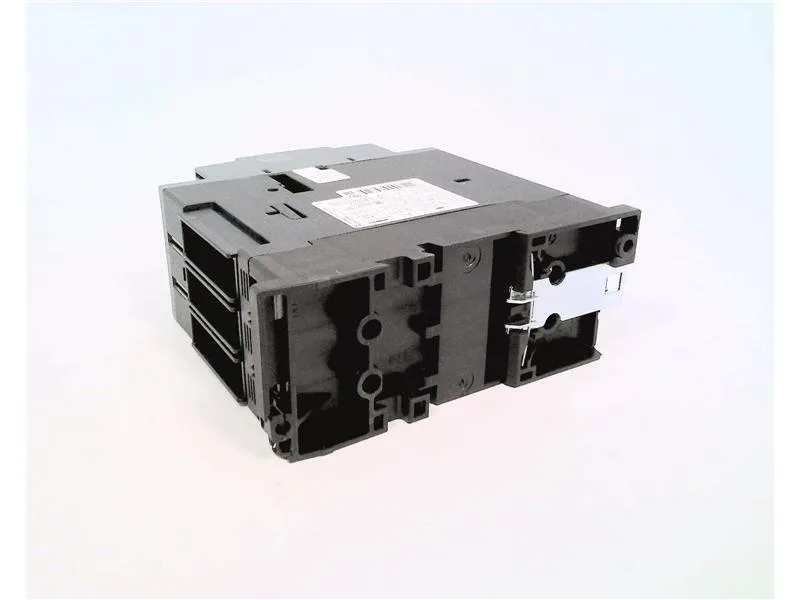

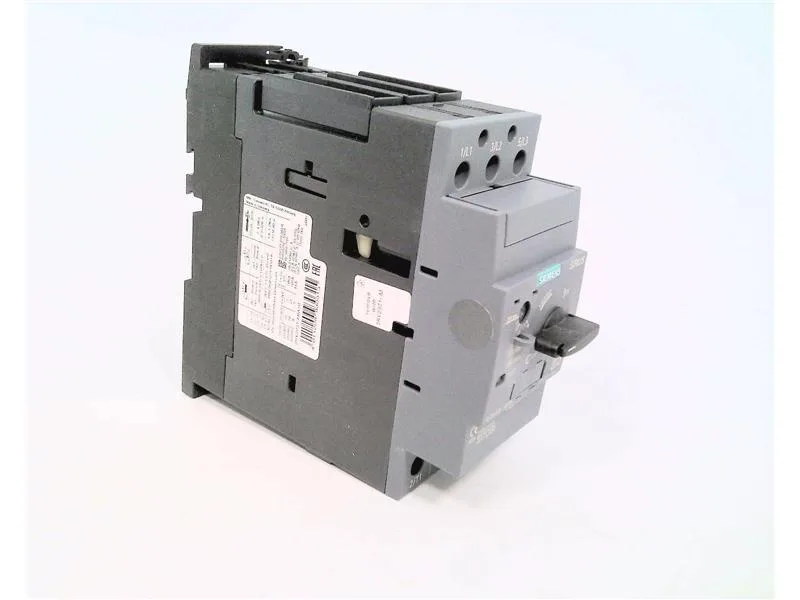

Siemens 3RV2031-4BA10 Motor Protection Circuit Breaker

MPN3RV2031-4BA10
Active

Siemens SIRIUS, circuit breaker for motor protection, order code 3RV2031-4BA10, Trip Class 10, screw and snap-on mounting onto 35 mm DIN rail, phase failure detection.

$69.85 – $179.00Ref. price · indicative, final on quote
Siemens 3RV2031-4BA10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2031-4BA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS2
3RV2031-4BA10 — Electrical
ParameterValue
Rated operational current (Ie)20 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)14.5 W
Power loss, per pole (AC, hot)4.8 W
3RV2031-4BA10 — Protection & Tripping
ParameterValue
Overload release setting range14 ... 20 A
Instantaneous short-circuit trip current260 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)65 kA
Breaking capacity at 500 V (AC)12 kA
Breaking capacity at 690 V (AC)5 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V3 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2031-4BA10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)50 000
Endurance, auxiliary contacts (typ.)50 000
Switching frequency, AC-3 (max.)15 1/h
3RV2031-4BA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (1 ... 25 mm²), 1x (1 ... 35 mm²)
Conductor cross-section, finely stranded with ferrule2x (1 ... 16 mm²), 1x (1 ... 25 mm²)
Conductor range, AWG (main contacts)2x (18 ... 3), 1x (18 ... 2)
3RV2031-4BA10 — Mechanical
ParameterValue
Height140 mm
Width55 mm
Depth149 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2031-4BA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2031-4BA10 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Motor protection breaker, Trip Class 10, 55 mm wide

The Siemens 3RV2031-4BA10 is a SIRIUS series motor protection circuit breaker (MPCB) with Trip Class 10 rating. The 55 mm width is the panel-space footprint — typical for this current range.

Breaking capacity and fault clearing

At 400 V it clears 30 kA, at 500 V it handles 6 kA, and at 690 V it manages 3 kA. Ground fault detection is not included.

Terminals accept solid or stranded copper: 2× (1–25 mm²) or 1× (1–35 mm²), with M6 screw-type terminals for the main current circuit.

Frequently asked questions

What is the price of siemens 3rv2031-4ba10?

Price is the primary decision factor for sourcing buyers comparing distributors.

Is 3rv2031-4ba10 in stock and available for immediate shipment?

Stock availability determines lead time and urgency for production or maintenance.

What is the replacement or equivalent for siemens 3rv2031-4ba10?

Buyers often need a drop-in replacement if the part is obsolete or unavailable.

Where can I find the datasheet for 3rv2031-4ba10?

Engineers need full specifications and dimensions for design validation.

What is the trip range and setting instructions for 3rv2031-4ba10?

Correct setting ensures proper motor protection and avoids nuisance trips.

Can 3rv2031-4ba10 be used for a 20A motor load?

Buyers need to confirm compatibility with their motor's full load current.
