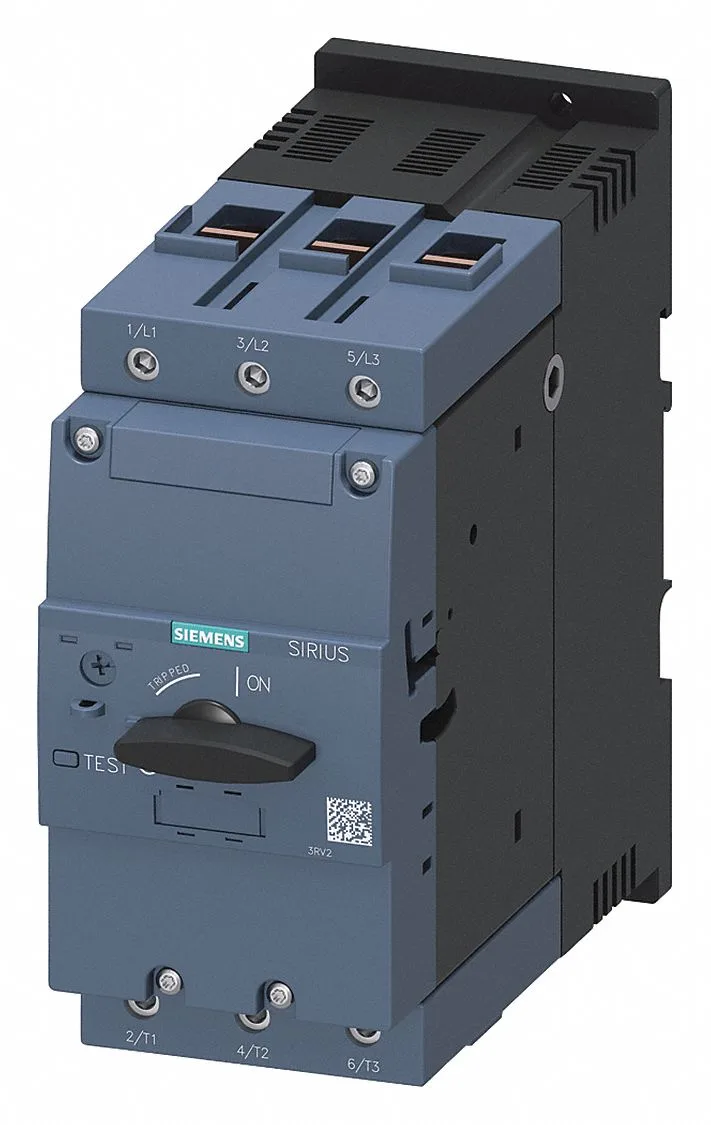

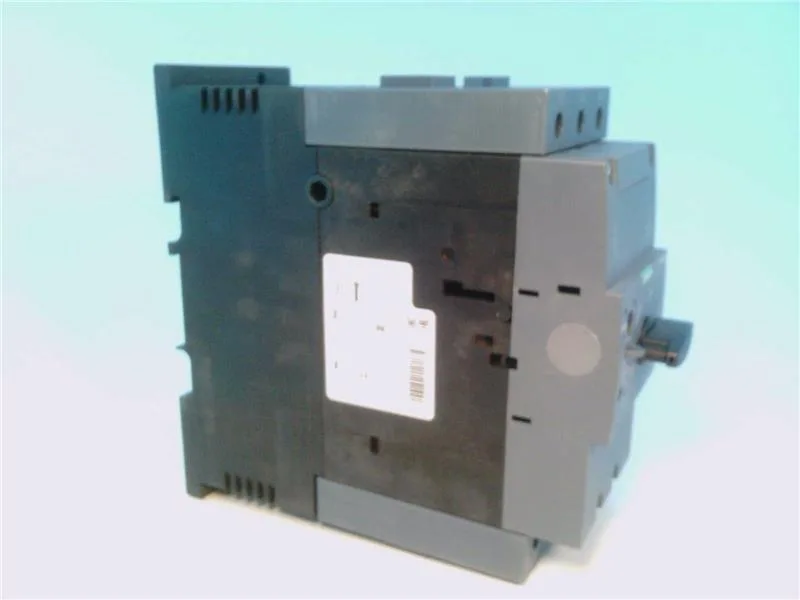

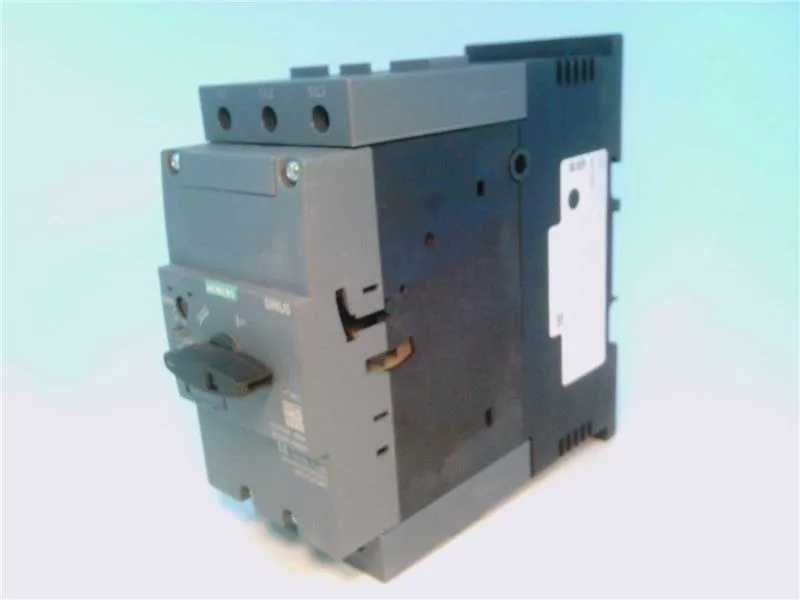

Siemens 3RV2041-4MA10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2041-4MA10, 100 A, 100 kA, Motor Protection CB

MPN3RV2041-4MA10
Active

Siemens SIRIUS, 3RV2041-4MA10, Motor protection circuit breaker, up to 100 A at 480/600 V, 100 kA breaking capacity at 240 V AC, Trip Class 10, screw terminals, 70 x 165 x 176 mm.

$160.02Ref. price · indicative, final on quote
Siemens 3RV2041-4MA10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2041-4MA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS3
3RV2041-4MA10 — Electrical
ParameterValue
Rated operational current (Ie)100 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 31 000 V
Rated impulse withstand voltage (Uimp)8 kV
Number of poles3
Power loss (AC, hot)44 W
Power loss, per pole (AC, hot)14.7 W
3RV2041-4MA10 — Protection & Tripping
ParameterValue
Overload release setting range80 ... 100 A
Instantaneous short-circuit trip current1 300 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)65 kA
Breaking capacity at 500 V (AC)8 kA
Breaking capacity at 690 V (AC)5 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V3 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2041-4MA10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)25 000
Endurance, auxiliary contacts (typ.)25 000
Switching frequency, AC-3 (max.)15 1/h
3RV2041-4MA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (2,5 ... 50 mm²), 1x (10 ... 70 mm²)
Conductor cross-section, finely stranded with ferrule2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²)
3RV2041-4MA10 — Mechanical
ParameterValue
Height165 mm
Width70 mm
Depth176 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2041-4MA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2041-4MA10 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Core specs and sourcing

Ambient temperature range during operation is -20 to +60 °C.

Any mounting position. Dimensions: 70 mm wide, 165 mm high, 176 mm deep. Screw-type terminals for the main circuit: accepts 2x (2.5…16 mm²) solid or stranded, or 1x (10…70 mm²) solid/stranded. Minimum side clearance: 30 mm; vertical clearance: 150 mm above and below.

Why this part for your storeroom

This is a current-production, widely used SIRIUS breaker — a critical spare for any panel with 3RV2-series motor starters. The 100 A rating and high interrupting capacity cover most medium-motor branch circuits. It's a fast mover, so keep one on the shelf for line-down situations.

Frequently asked questions

What are the key dimensions and mounting requirements?

Width 70 mm, height 165 mm, depth 176 mm. Mounts on 35 mm DIN rail with snap-on; any position. Allow 30 mm side clearance and 150 mm vertical clearance.

What conductor sizes does the screw terminal accept?

The main terminals accept 2x (2.5…16 mm²) solid or stranded, or 1x (10…70 mm²) solid/stranded.
