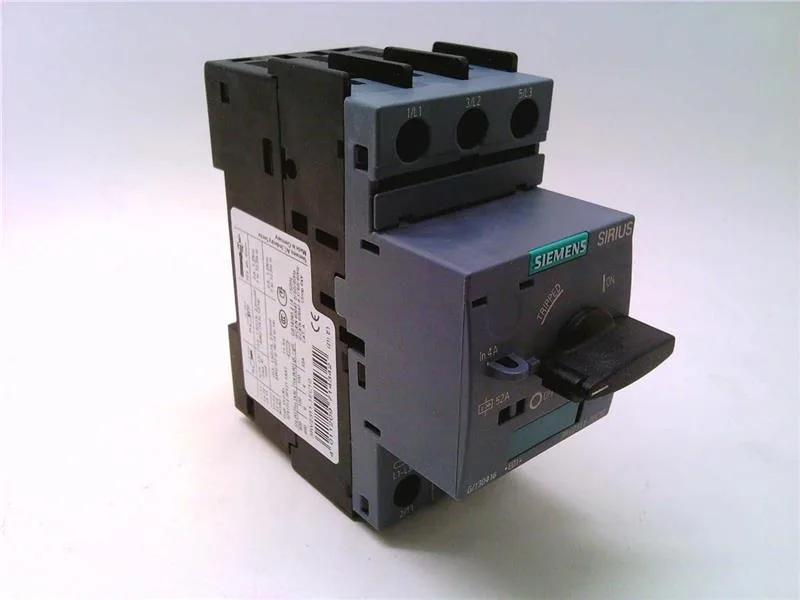

Siemens 3RV2311-1EC10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2311-1EC10 SIRIUS Circuit Breaker, 100 kA SCCR

MPN3RV2311-1EC10
Active

Siemens SIRIUS circuit breaker for starter combinations, 3RV2311-1EC10, 100 kA SCCR at 400 V, 32 A gL/gG backup, screw and snap-on 35 mm DIN-rail mount.

$34.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RV2311-1EC10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2311-1EC10 — Electrical
ParameterValue
Rated operational current (Ie)4 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)7.25 W
Power loss, per pole (AC, hot)2.4 W
3RV2311-1EC10 — Protection & Tripping
ParameterValue
Instantaneous short-circuit trip current52 A
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Short-circuit protectionYes
Phase-failure detectionNo
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2311-1EC10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2311-1EC10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0,75 ... 2,5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
3RV2311-1EC10 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2311-1EC10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2311-1EC10 — Specifications
ParameterValue
Design Of The ProductFor starter combinations

Product details

Backup fuse coordination is specified as gL/gG 32 A at 400 V and 500 V, and 25 A at 690 V. That means the upstream fuse must be sized to those limits to guarantee the breaker clears a fault inside its envelope — skip the fuse and you lose the SCCR rating.

Dimensions are 97 mm deep, 45 mm wide, and 97 mm tall — a 45 mm wide footprint on the DIN rail, so it occupies one standard 45 mm module slot. Terminal screws for the main contacts are M3, accepting 2x (0.75 to 2.5 mm²) solid or stranded, or 2x 4 mm². No ground-fault or phase-failure detection built in — that's handled by the contactor or an external relay in the starter combination.

Frequently asked questions

What is the closest second-source to 3RV2311-1EC10?

The 3RV2311-1CC10 is a close sibling in the same SIRIUS series, sharing the same 45 mm width and DIN-rail mount. The key difference is the SCCR and backup fuse coordination — verify your fault current requirements before swapping. No rewiring needed if the terminal assignments match.
