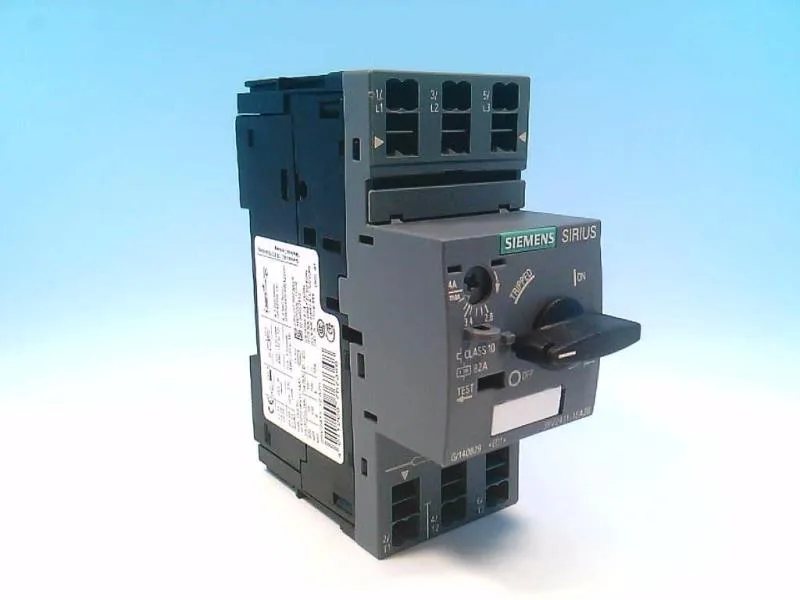

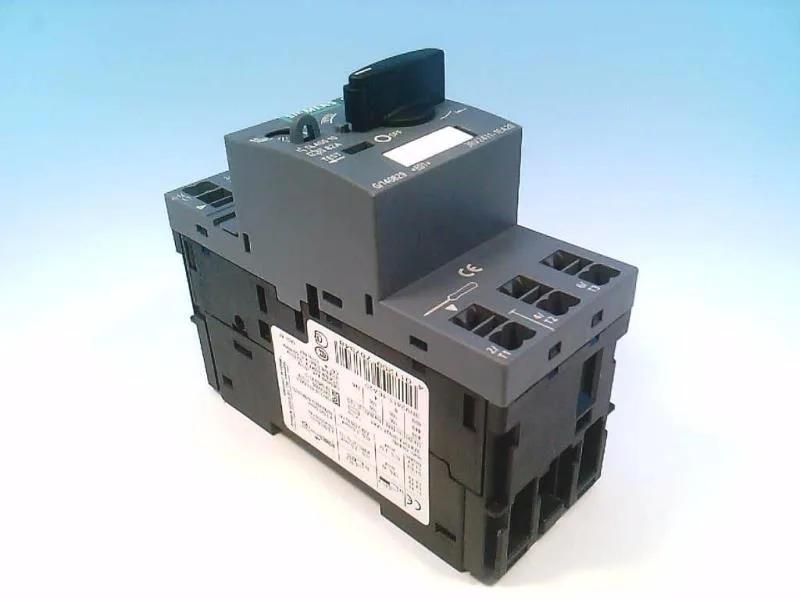

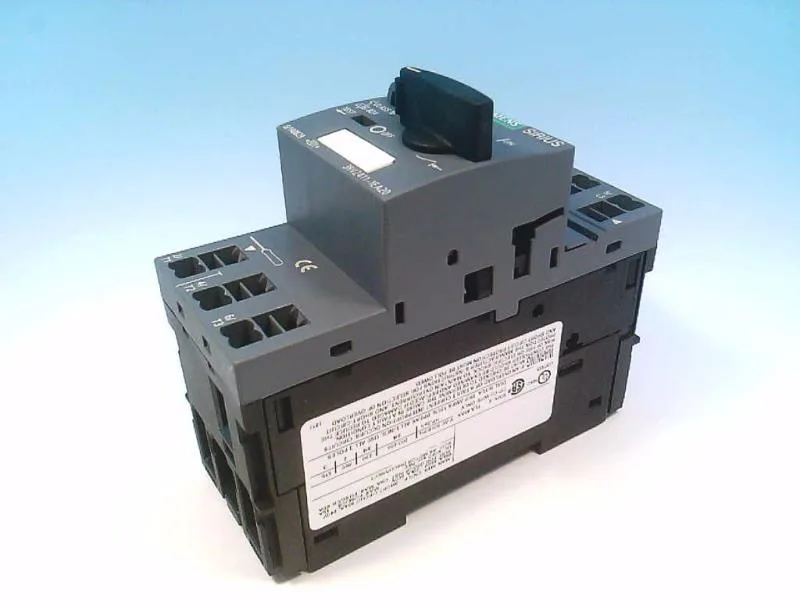

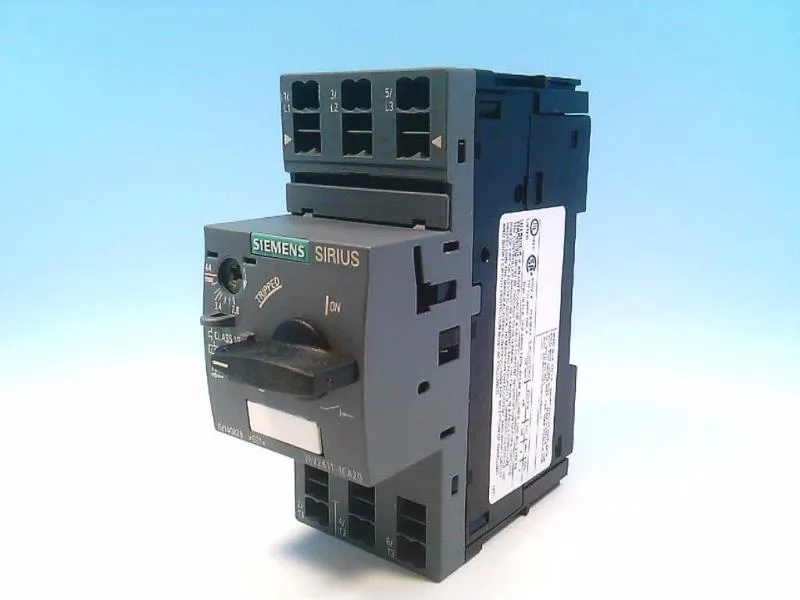

The Siemens 3RV2411-1EA20 is a SIRIUS circuit breaker specifically designed for transformer protection, with a rated value range of 20 to 690 V. It delivers a breaking capacity of 100 kA at both 240 V and 400 V, dropping to 4 kA at 690 V — the 100 kA figure at 400 V is the one that governs most industrial distribution panels, giving you headroom for high-fault installations. The Trip Class 10 characteristic means it trips fast enough to protect downstream transformer windings from sustained overloads during inrush, while still allowing normal magnetizing current peaks.
Siemens 3RV2411-1EA20 SIRIUS Circuit Breaker, 100 kA at 400
MPN3RV2411-1EA20
Active
Siemens SIRIUS circuit breaker for transformer protection, 3RV2411-1EA20, 100 kA breaking capacity at 400 V, Trip Class 10, 45 mm wide, snap-on DIN rail mounting, spring-loaded terminals.
$36.83Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 4 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 7.25 W |
| Power loss, per pole (AC, hot) | 2.4 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 2.8 ... 4 A |
| Instantaneous short-circuit trip current | 82 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 100 kA |
| Breaking capacity at 500 V (AC) | 100 kA |
| Breaking capacity at 690 V (AC) | 6 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 4 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | spring-loaded terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (0,5 ... 4 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 2.5 mm²) |
| Conductor range, AWG (main contacts) | 2x (20 ... 12) |
| Parameter | Value |
|---|---|
| Height | 106 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For transformer protection |
Product details
Frequently asked questions
What is the breaking capacity of 3RV2411-1EA20 at 400 V?
100 kA at 400 V rated value, which is the key rating for most industrial distribution panels and gives headroom for high-fault installations.
What is the closest functional second-source for 3RV2411-1EA20?
The 3RV2021-1FA15 is a functional sibling, but the 3RV2411-1EA20 is specifically designed for transformer protection and has a higher 100 kA interrupting rating at 400 V.
Where can I buy 3RV2411-1EA20?
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
