Siemens 3RV2711-0DD10 — Motor Protection Circuit Breakers (MPCB)

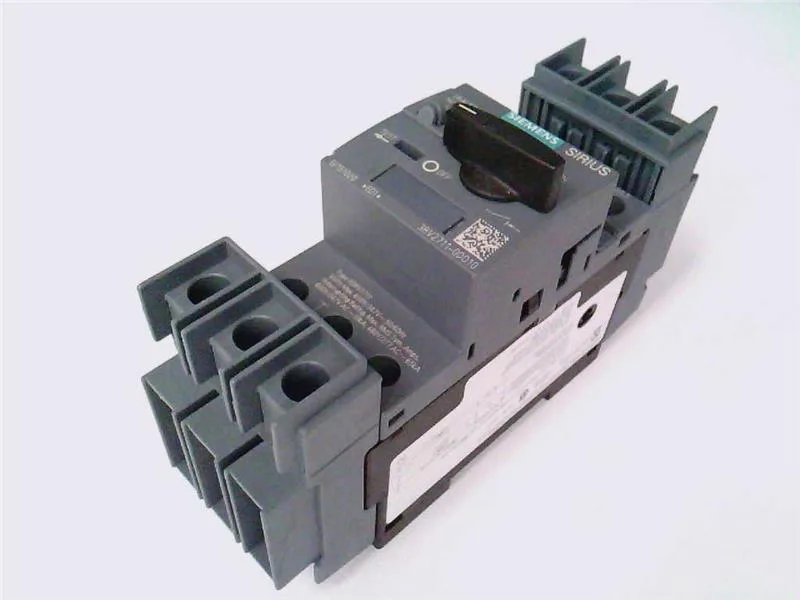

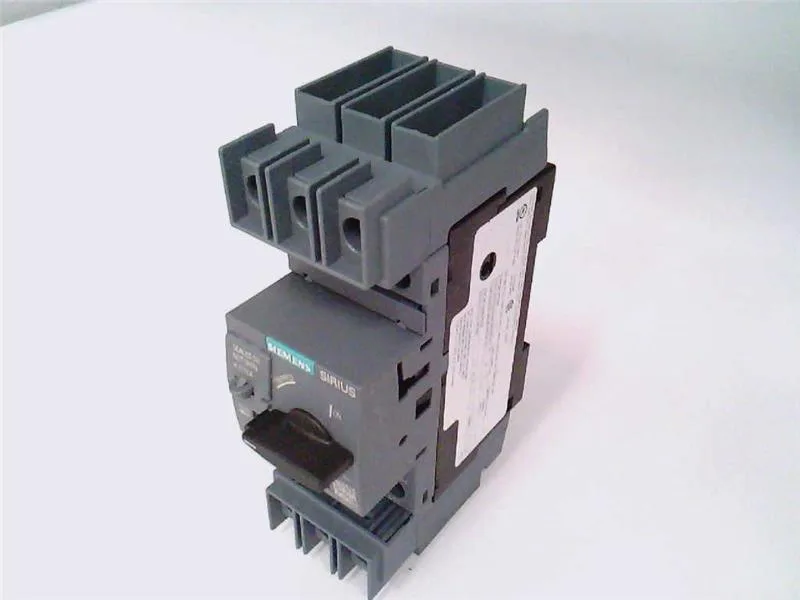

Siemens 3RV2711-0DD10 SIRIUS Circuit Breaker, 100 kA at 400

MPN3RV2711-0DD10
Active

Siemens SIRIUS circuit breaker, 3RV2711-0DD10, size S00, 100 kA breaking capacity at 400 V AC, screw and snap-on DIN rail mount, UL 489/CSA C22.2 No. 5.

$64.77Ref. price · indicative, final on quote
Siemens 3RV2711-0DD10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2711-0DD10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2711-0DD10 — Electrical
ParameterValue
Rated operational current (Ie)0.32 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV2711-0DD10 — Protection & Tripping
ParameterValue
Instantaneous short-circuit trip current4.2 A
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionNo
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2711-0DD10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV2711-0DD10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded1 ... 10 mm², max. 2x 10 mm²
Conductor cross-section, finely stranded with ferrule1 ... 16 mm², max. 6 + 16 mm²
Conductor range, AWG (main contacts)2x (14 ... 10)
3RV2711-0DD10 — Mechanical
ParameterValue
Height144 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2711-0DD10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2711-0DD10 — Specifications
ParameterValue
Design Of The ProductFor system protection according to UL 489/CSA C22.2 No. 5

Product details

The Siemens 3RV2711-0DD10 is a SIRIUS circuit breaker in size S00, designed for system protection per UL 489 and CSA C22.2 No. 5. Mechanical life on the main contacts is typically 100 000 operations. The breaker is rated for AC-3 switching up to 690 V at a maximum of 15 operations per hour, which suits motor-circuit protection in conveyor zones or pump panels where the load cycles several times a shift.

Mounting position is any orientation. Clearance requirements: 70 mm above and below, 30 mm to the side, zero forward or backward. Main contact screws are M4; use a Pozidriv size 2 tip or a 5–6 mm diameter screwdriver shaft.

Frequently asked questions

Where can I buy 3RV2711-0DD10 and how do I get a price?

This part is sourced to order against an RFQ through independent distribution. Submit a request for quote; availability and current pricing are confirmed at quote time.

What compliance documentation does this brand provide for 3RV2711-0DD10?

The breaker carries UL 489 and CSA C22.2 No. 5 listing for system protection. Standard Siemens documentation includes RoHS and REACH declarations; request them with the RFQ.

Will 3RV2711-0DD10 drop into a panel specified around 3RV2011-0AA10 without rewiring?

Both are size S00 breakers on a 35 mm DIN rail, so the footprint and rail position match. Terminal capacity and screw type are the same. The key difference is breaking capacity: the 3RV2711-0DD10 is rated 100 kA at 400 V, while the 3RV2011-0AA10 carries a lower interrupting rating — verify your fault-current study before swapping.
