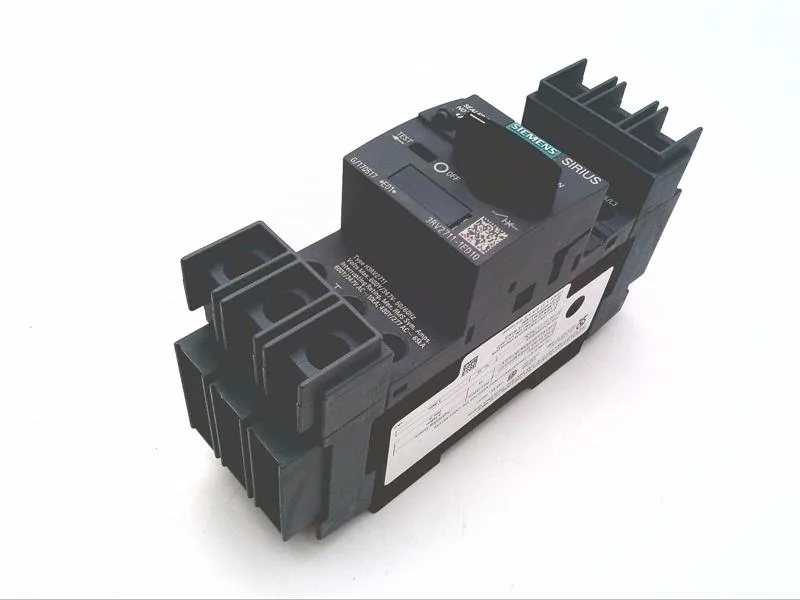

Siemens 3RV2711-1ED10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2711-1ED10 SIRIUS Circuit Breaker, 100 kA at 400

MPN3RV2711-1ED10
Active

Siemens SIRIUS, circuit breaker, Size S00, 3RV2711-1ED10, 100 kA breaking capacity at 400 V AC, screw-type terminals, DIN rail mount.

$69.85Ref. price · indicative, final on quote
Siemens 3RV2711-1ED10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2711-1ED10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2711-1ED10 — Electrical
ParameterValue
Rated operational current (Ie)4 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)7.25 W
Power loss, per pole (AC, hot)2.4 W
3RV2711-1ED10 — Protection & Tripping
ParameterValue
Instantaneous short-circuit trip current52 A
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionNo
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2711-1ED10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV2711-1ED10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded1 ... 10 mm², max. 2x 10 mm²
Conductor cross-section, finely stranded with ferrule1 ... 16 mm², max. 6 + 16 mm²
Conductor range, AWG (main contacts)2x (14 ... 10)
3RV2711-1ED10 — Mechanical
ParameterValue
Height144 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2711-1ED10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2711-1ED10 — Specifications
ParameterValue
Design Of The ProductFor system protection according to UL 489/CSA C22.2 No. 5

Product details

What this breaker does on the line

The Siemens 3RV2711-1ED10 is a SIRIUS Size S00 circuit breaker built for system protection per UL 489 and CSA C22.2 No. 5. The 100 kA holds at 240 V and 500 V too; at 690 V it drops to 4 kA (6 kA AC). For backup protection, the manufacturer specifies gG fuses: 32 A at 400/500 V, 25 A at 690 V. Rated voltage spans 20 to 690 V, covering most industrial control voltages. The motor-switching rating at AC-3 is 0.8 kW at 230 V, with a maximum of 15 operations per hour. No ground-fault or phase-failure detection built in — this is a straight thermal-magnetic or electronic overcurrent trip, not a multifunction motor manager.

Panel fit and clearances

The S00 frame takes a 45 mm wide footprint on the rail, 97 mm deep, 144 mm tall. Any mounting position works. Terminals accept 1 to 10 mm² solid or stranded (up to 2x 10 mm²), with M4 screws on the main contacts; use a Pozidriv size 2 tip or a 5–6 mm diameter screwdriver shaft.

Frequently asked questions

What is the breaking capacity of 3RV2711-1ED10 at 400 V?

100 kA at 400 V AC. The same rating applies at 240 V and 500 V. At 690 V it drops to 4 kA (6 kA AC).

What compliance standards does 3RV2711-1ED10 meet?

Designed for system protection per UL 489 and CSA C22.2 No. 5. It also carries the SIRIUS brand designation and mounts on standard 35 mm DIN rail per DIN EN 60715.

Where can I buy 3RV2711-1ED10 and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock count or price is published here.

Will 3RV2711-1ED10 drop into a panel built for 3RV2021-1FA15?

Both are S00 frame breakers on 35 mm DIN rail, so the footprint and rail clip are identical. But the 3RV2711-1ED10 is a UL 489 system-protection device, while the 3RV2021-1FA15 may have different trip curves or interrupting ratings — verify the panel's SCCR and coordination study before swapping.
