Siemens 3RV2711-1KD10 — Motor Protection Circuit Breakers (MPCB)

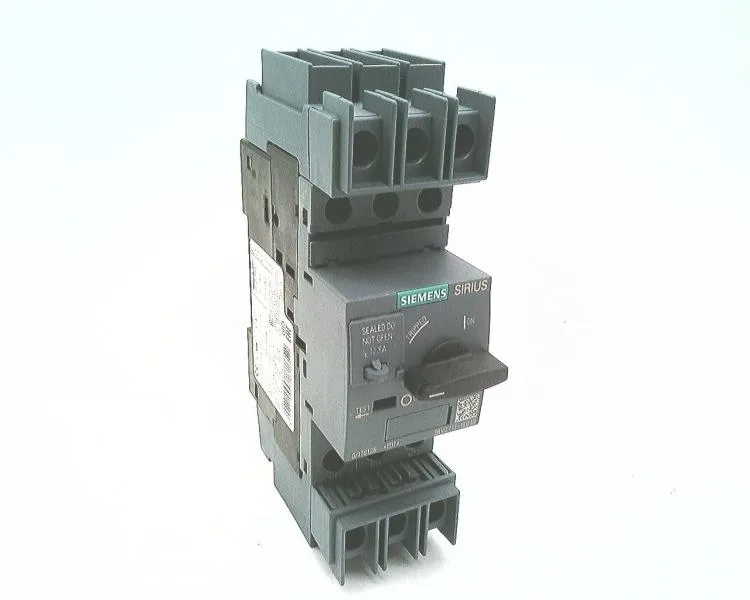

Siemens 3RV2711-1KD10 SIRIUS Circuit Breaker, 100 kA at 400

MPN3RV2711-1KD10
Active

Siemens SIRIUS circuit breaker, size S00, 3RV2711-1KD10, 100 kA SCCR at 400 V AC, UL 489/CSA C22.2 No. 5, screw/snap-on 35 mm DIN rail.

$79.21Ref. price · indicative, final on quote
Siemens 3RV2711-1KD10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2711-1KD10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2711-1KD10 — Electrical
ParameterValue
Rated operational current (Ie)12.5 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV2711-1KD10 — Protection & Tripping
ParameterValue
Instantaneous short-circuit trip current163 A
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)42 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionNo
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2711-1KD10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV2711-1KD10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded1 ... 10 mm², max. 2x 10 mm²
Conductor cross-section, finely stranded with ferrule1 ... 16 mm², max. 6 + 16 mm²
Conductor range, AWG (main contacts)2x (14 ... 10)
3RV2711-1KD10 — Mechanical
ParameterValue
Height144 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2711-1KD10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2711-1KD10 — Specifications
ParameterValue
Design Of The ProductFor system protection according to UL 489/CSA C22.2 No. 5

Product details

The Siemens SIRIUS 3RV2711-1KD10 is a size S00 circuit breaker designed for system protection per UL 489 and CSA C22.2 No. 5. The interrupting ratings are the headline: 100 kA at 240 V AC, 100 kA at 400 V AC, 42 kA at 500 V AC, and 6 kA at 690 V AC — meaning it can safely clear fault currents up to those levels without upstream damage, critical for high-fault industrial feeders.

Sizing and coordination

The gG fuse coordination limits are 63 A at 400 V, 50 A at 500 V, and 40 A at 690 V — these are the maximum upstream fuse ratings for selective coordination.

Panel integration

The width is a single 45 mm module, so it occupies one slot on a standard DIN-rail panel.

Frequently asked questions

Where can I buy 3RV2711-1KD10 and get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the closest functional second-source for 3RV2711-1KD10?

The 3RV2023-4CA10 is a functional peer in the same SIRIUS family, but it is a different size (S0 vs S00) and has different interrupting ratings. It will not drop into a panel wired for the S00 footprint without mechanical and electrical rework.

What compliance documentation does Siemens provide for 3RV2711-1KD10?

The part carries UL 489 and CSA C22.2 No. 5 listings for system protection. RoHS and REACH documentation is standard from Siemens for current-production SIRIUS components.
