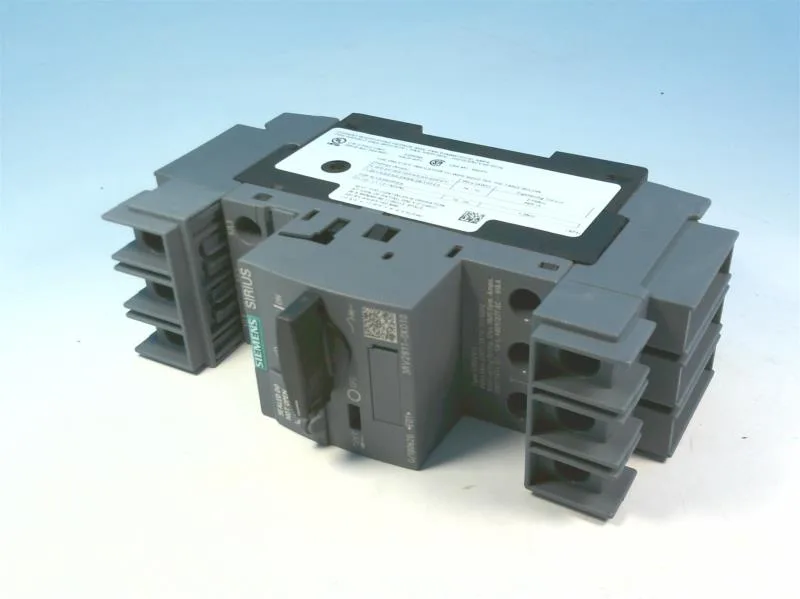

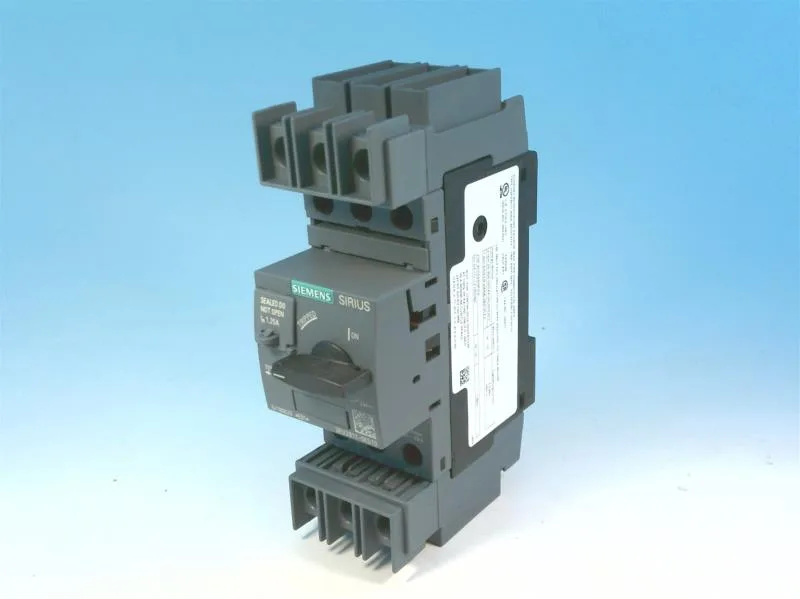

Siemens 3RV2811-0KD10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2811-0KD10 SIRIUS Circuit Breaker, 100 kA at 400

MPN3RV2811-0KD10
Active

Siemens SIRIUS circuit breaker 3RV2811-0KD10, Size S00, 45 mm wide, 100 kA breaking capacity at 400 V AC, for transformer protection per UL 489/CSA C22.2 No.5.

$74.93Ref. price · indicative, final on quote
Siemens 3RV2811-0KD10 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV2811-0KD10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2811-0KD10 — Electrical
ParameterValue
Rated operational current (Ie)1.25 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV2811-0KD10 — Protection & Tripping
ParameterValue
Instantaneous short-circuit trip current26 A
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionNo
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2811-0KD10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV2811-0KD10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded1 ... 10 mm², max. 2x 10 mm²
Conductor cross-section, finely stranded with ferrule1 ... 16 mm², max. 6 + 16 mm²
Conductor range, AWG (main contacts)2x (14 ... 10)
3RV2811-0KD10 — Mechanical
ParameterValue
Height144 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2811-0KD10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2811-0KD10 — Specifications
ParameterValue
Design Of The ProductFor transformer protection according to UL 489/CSA C22.2 No.5

Product details

The Siemens 3RV2811-0KD10 is a SIRIUS circuit breaker in the S00 frame size, designed specifically for transformer protection and listed to UL 489 / CSA C22.2 No.5. The breaking capacity is 100 kA at 400 V AC, and it holds that same 100 kA rating at 240 V, 500 V, and 690 V AC, so it handles high-fault utility feeds without cascading upstream. Rated voltage spans 20 to 690 V, with the AC-3 maximum switching voltage at 690 V — covers most motor and transformer circuits in industrial panels.

Main circuit terminals are M4 screw-type, accepting 1 to 10 mm² solid or stranded, up to 2 × 10 mm². Use a Pozidriv size 2 tip with a 5–6 mm shaft diameter.

Frequently asked questions

What compliance documentation does 3RV2811-0KD10 carry?

It is designed to UL 489 and CSA C22.2 No.5 for transformer protection. The SIRIUS brand typically provides RoHS and REACH declarations; confirm with the manufacturer for the specific certificate.
