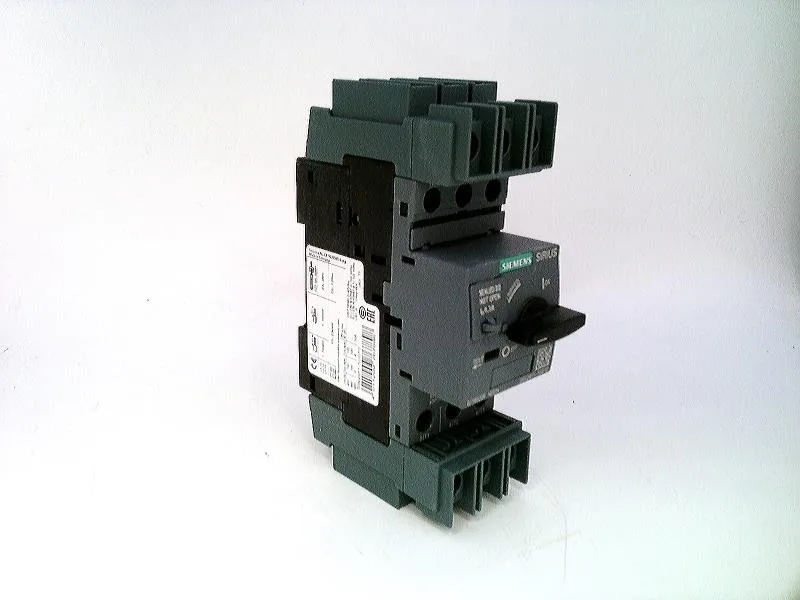

Siemens 3RV2811-1GD10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2811-1GD10 SIRIUS Circuit Breaker, 100 kA at 400

MPN3RV2811-1GD10
Active

Siemens SIRIUS circuit breaker, size S00, 3RV2811-1GD10, 100 kA breaking capacity at 400 V AC, for transformer protection per UL 489, screw and snap-on mounting on 35 mm DIN rail.

$74.93Ref. price · indicative, final on quote
Siemens 3RV2811-1GD10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2811-1GD10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2811-1GD10 — Electrical
ParameterValue
Rated operational current (Ie)6.3 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)7.25 W
Power loss, per pole (AC, hot)2.4 W
3RV2811-1GD10 — Protection & Tripping
ParameterValue
Instantaneous short-circuit trip current130 A
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionNo
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2811-1GD10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV2811-1GD10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded1 ... 10 mm², max. 2x 10 mm²
Conductor cross-section, finely stranded with ferrule1 ... 16 mm², max. 6 + 16 mm²
Conductor range, AWG (main contacts)2x (14 ... 10)
3RV2811-1GD10 — Mechanical
ParameterValue
Height144 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2811-1GD10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2811-1GD10 — Specifications
ParameterValue
Design Of The ProductFor transformer protection according to UL 489/CSA C22.2 No.5

Product details

What the 100 kA rating means for the panel

The Siemens 3RV2811-1GD10 is a SIRIUS circuit breaker sized S00, designed specifically for transformer protection per UL 489 and CSA C22.2 No.5.

Any mounting position is permitted. Clearance requirements: 70 mm upward and downward, 30 mm to the side, zero forward or backward. Main circuit terminals accept 1 to 10 mm² solid or stranded, up to 2×10 mm²; screwdriver shaft diameter 5 to 6 mm, Pozidriv size 2 tip.

Transformer-duty design

Unlike a standard motor-protective circuit breaker, this unit is engineered for transformer inrush and overload characteristics per UL 489. The gG fuse coordination values at 400 V are 50 A, at 500 V 40 A, and at 690 V 35 A — these define the maximum backup fuse for the breaker's short-circuit rating. No ground-fault or phase-failure detection built in; external protection is needed for those functions.
