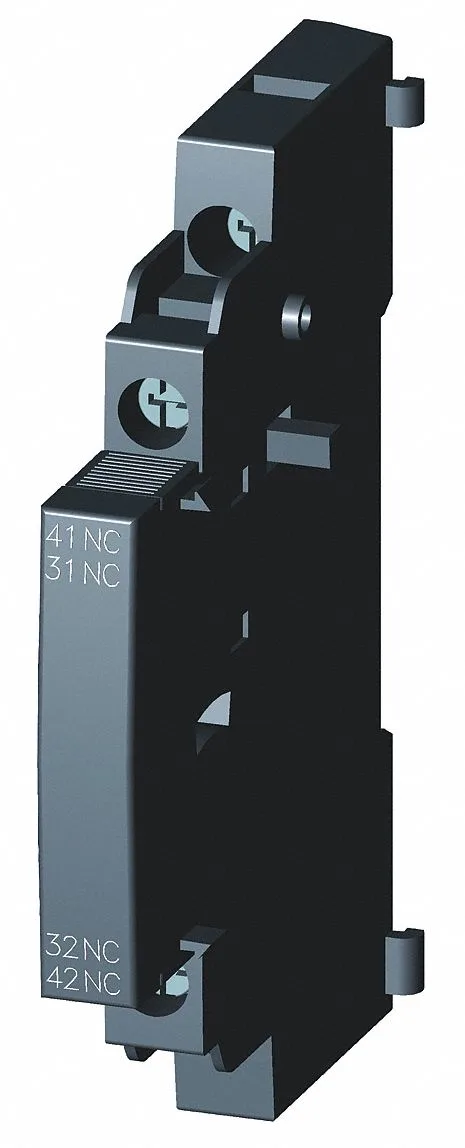

Siemens 3RV2901-1C
MPN3RV2901-1C
Active
Auxiliary switch can be mounted on the side 2 NC, screw terminal for circuit breaker 3RV2
$34.52Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | auxiliary switch, lateral |
| Frame size | S00, S0, S2, S3 |
| Parameter | Value |
|---|---|
| Conductor cross-section, solid / stranded | 0.5 ... 2.5 mm² |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Parameter | Value |
|---|---|
| Height | 90 mm |
| Width | 9.5 mm |
| Depth | 70 mm |
| Mounting method | plug-in fixing |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Parameter | Value |
|---|---|
| Design Of The Product | lateral auxiliary switches |
MPN
3RV2901-1C
