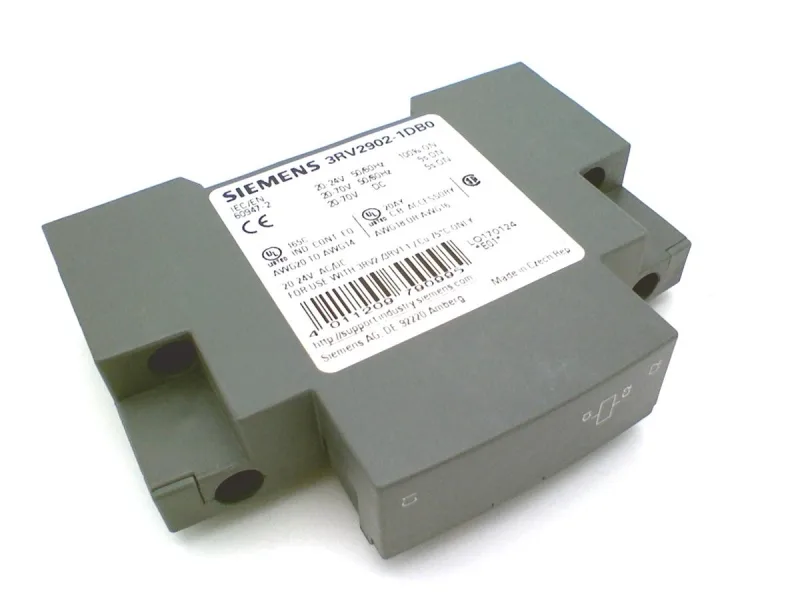

Siemens 3RV2902-1DB0
MPN3RV2902-1DB0
Active
Shunt release 20...24 V AC, 50/60 Hz, 100% ON period 20-70 V AC, 50/60 Hz, 5 s ON period 20-70 V DC, 5 s ON period with screw terminal for circuit breaker 3RV2
$17.78 – $50.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | shunt release |
| Frame size | S00, S0, S2, S3 |
| Parameter | Value |
|---|---|
| Rated voltage | 690 V |
| Parameter | Value |
|---|---|
| Height | 90 mm |
| Width | 19 mm |
| Depth | 68 mm |
| Mounting method | snap-on mounting |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
MPN
3RV2902-1DB0
