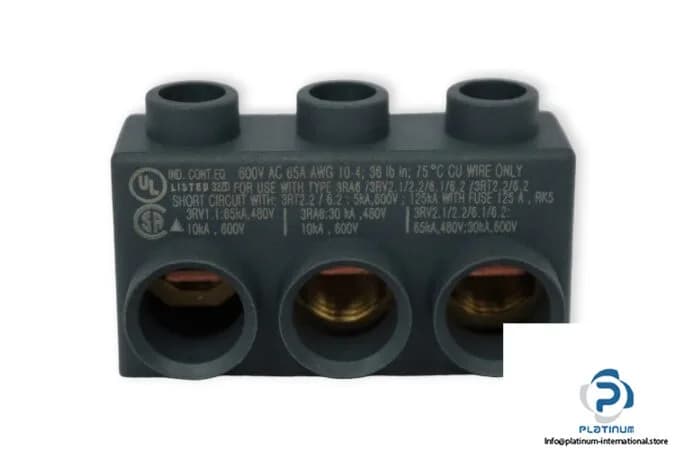

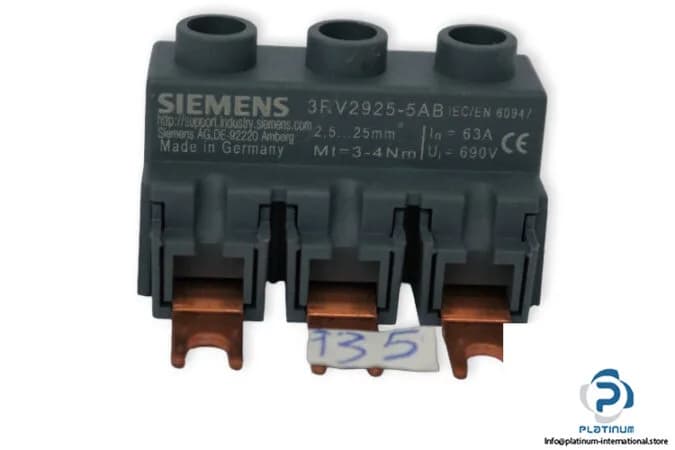

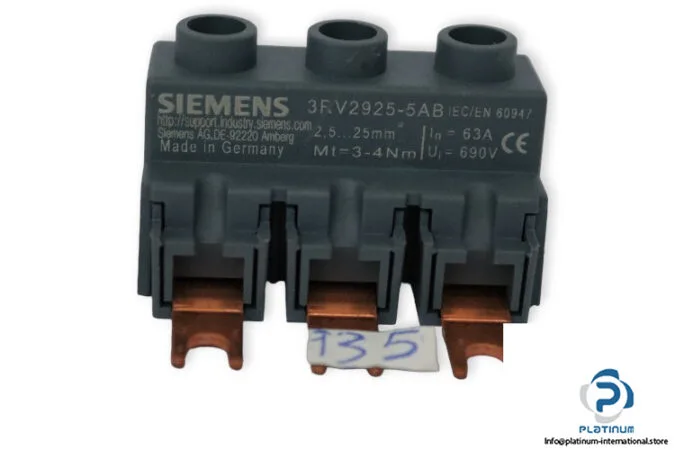

Siemens 3RV2925-5AB
MPN3RV2925-5AB
Active
3-phase supply terminal for 3-phase busbar connection from top Size S00/S0
$15.98 – $37.43Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | 3-phase supply terminal |
| Frame size | S00, S0 |
| Parameter | Value |
|---|---|
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Parameter | Value |
|---|---|
| Conductor cross-section, solid / stranded | 2.5 ... 16 mm² |
| Conductor cross-section, finely stranded with ferrule | 2.5 ... 16 mm² |
| Conductor range, AWG (main contacts) | 1x (10 ... 4) |
| Parameter | Value |
|---|---|
| Height | 39 mm |
| Width | 45 mm |
| Depth | 27 mm |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Parameter | Value |
|---|---|
| Design Of The Product | from above, size S0/S00 |
MPN
3RV2925-5AB
