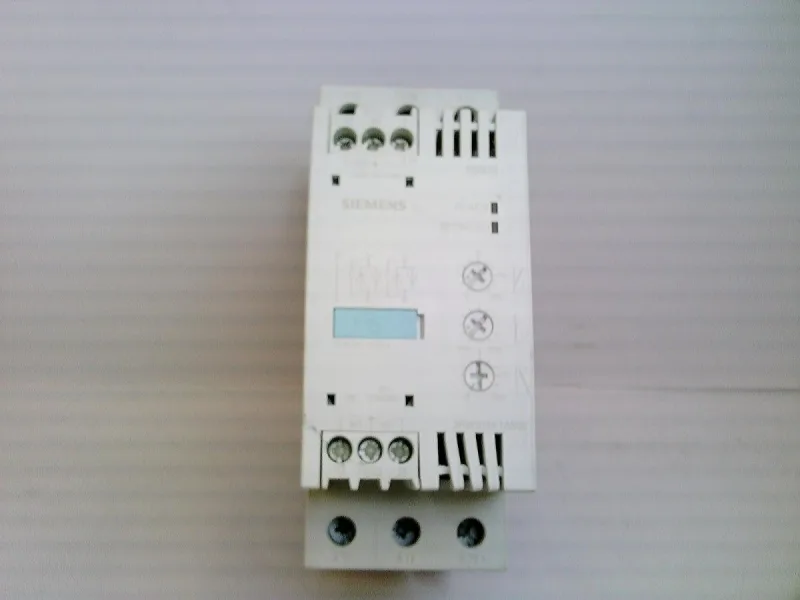

Siemens 3RW3034-1AB05
MPN3RW3034-1AB05
SIRIUS SOFT STARTER, SIZE S2, 32 A, 18,5 KW / 500 V, AC 460...575 V, UC 24 V SCREW CONNECTION
$2,865.89Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | Soft starter |
| Product brand name | SIRIUS |
| Parameter | Value |
|---|---|
| Rated operational current at 40 °C | 32A |
| Rated operational current at 50 °C | 27A |
| Rated operational current at 60 °C | 23A |
| Rated insulation voltage | 600V |
| Minimum settable current (% of Ie) | 9% |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC/DC |
| Rated voltage at 50 Hz | 24V |
| Rated voltage at 60 Hz | 24V |
| Main circuit terminal type | screw-type terminals |
| Control supply voltage tolerance, AC 50 Hz (max.) | 10% |
| Control supply voltage tolerance, AC 50 Hz (min.) | -10% |
| Control supply voltage tolerance, AC 60 Hz (max.) | 10% |
| Control supply voltage tolerance, AC 60 Hz (min.) | -10% |
| Control supply frequency tolerance (max.) | 10% |
| Control supply frequency tolerance (min.) | -10% |
| Operating frequency tolerance (max.) | 10% |
| Operating frequency tolerance (min.) | -10% |
| Parameter | Value |
|---|---|
| Motor overload protection | No |
| Thermistor motor protection | No |
| Adjustable current limitation | No |
| Inside-delta connection | No |
| Intrinsic device protection | No |
| Pollution degree | 3, acc. to IEC 60947-4-2 |
| Parameter | Value |
|---|---|
| Height | 160mm |
| Width | 55mm |
| Depth | 170mm |
| Mounting position | With vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° tiltable to the front and back |
| Mounting clearance, top | 60mm |
| Mounting clearance, bottom | 40mm |
| Mounting clearance, side | 30mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60°C |
MPN
3RW3034-1AB05
