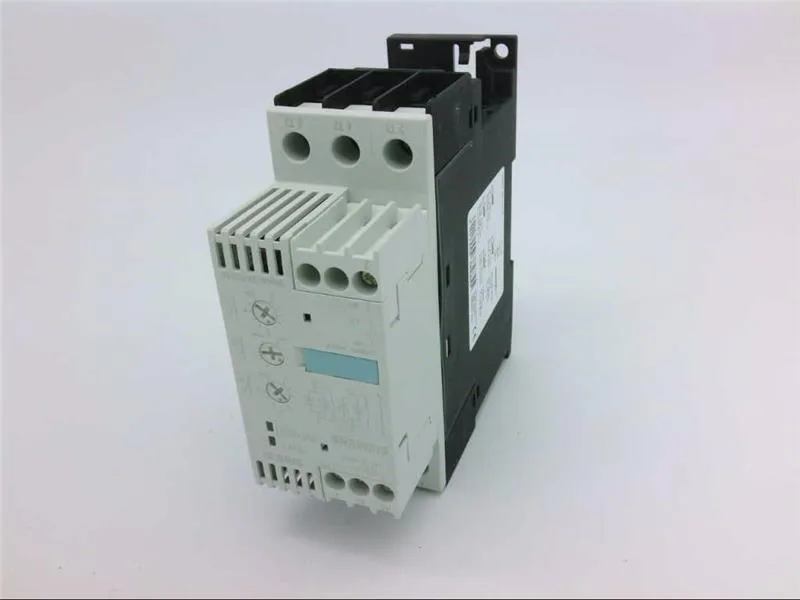

Siemens 3RW3124-1CB15
MPN3RW3124-1CB15
SIRIUS soft starter S0 12.5 A, 7.5 kW/500 V, 40 °C 460-575 V AC, 110-230 V AC/DC Screw terminals Two-ramp control
$250.77Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | soft starters for standard applications |
| Product brand name | SIRIUS |
Power & Motor Rating
| Parameter | Value |
|---|---|
| Rated operational current at 40 °C | 12.5A |
| Rated operational current at 50 °C | 11A |
| Rated operational current at 60 °C | 9A |
Control & Connection
| Parameter | Value |
|---|---|
| Control supply voltage type | AC/DC |
| Main circuit terminal type | screw-type terminals |
Protection & Features
| Parameter | Value |
|---|---|
| Motor overload protection | No |
| Thermistor motor protection | No |
Mechanical
| Parameter | Value |
|---|---|
| Height | 125mm |
| Width | 45mm |
| Depth | 125mm |
| Mounting clearance, top | 60mm |
| Mounting clearance, bottom | 40mm |
| Mounting clearance, side | 15mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60°C |
MPN
3RW3124-1CB15
