Siemens 3RW4028-1TB04 — Soft Starters

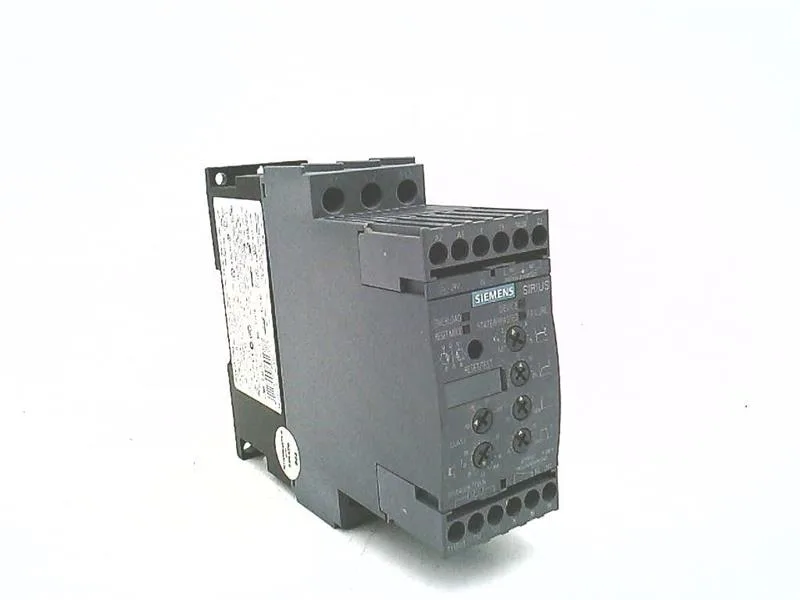

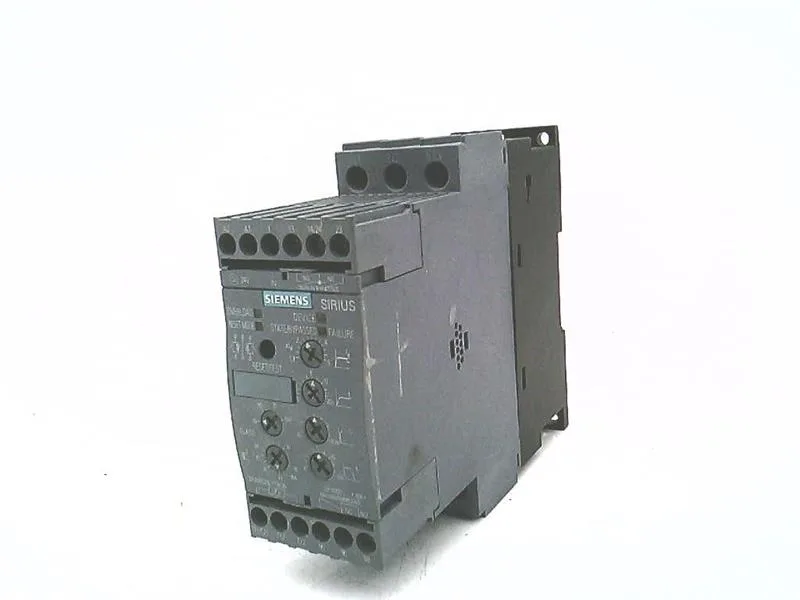

Siemens 3RW4028-1TB04 SIRIUS Soft Starter, 38 A, 45 mm

MPN3RW4028-1TB04
Active

Siemens SIRIUS 3RW4028-1TB04 soft starter, 38 A at 40 °C, 24 V control, S0 frame, 45 mm width, screw and snap-on mounting.

$477.52 – $626.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RW4028-1TB04 — Identification
ParameterValue
Product designationSoft starter
Product brand nameSIRIUS
3RW4028-1TB04 — Power & Motor Rating
ParameterValue
Rated operational current at 40 °C38A
Rated operational current at 50 °C34A
Rated operational current at 60 °C31A
Rated insulation voltage600V
Minimum settable current (% of Ie)20%
3RW4028-1TB04 — Control & Connection
ParameterValue
Control supply voltage typeAC/DC
Rated voltage at 50 Hz24V
Rated voltage at 60 Hz24V
Main circuit terminal typescrew-type terminals
Auxiliary contact rating (UL)B300 / R300
Control supply voltage tolerance, AC 50 Hz (max.)10%
Control supply voltage tolerance, AC 50 Hz (min.)-15%
Control supply voltage tolerance, AC 60 Hz (max.)10%
Control supply voltage tolerance, AC 60 Hz (min.)-15%
Control supply frequency tolerance (max.)10%
Control supply frequency tolerance (min.)-10%
Operating frequency tolerance (max.)10%
Operating frequency tolerance (min.)-10%
3RW4028-1TB04 — Protection & Features
ParameterValue
Motor overload protectionYes
Thermistor motor protectionYes
Adjustable current limitationYes
Inside-delta connectionNo
Intrinsic device protectionYes
Pollution degree3, acc. to IEC 60947-4-2
3RW4028-1TB04 — Mechanical
ParameterValue
Height125mm
Width45mm
Depth155mm
Mounting positionWith additional fan: With vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back Without additional fan: With vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° t
Fastening methodscrew and snap-on mounting
Mounting clearance, top60mm
Mounting clearance, bottom40mm
Mounting clearance, side15mm
3RW4028-1TB04 — Environmental
ParameterValue
Operating temperature range-25 ... +60°C
Ambient class during operation (IEC 60721)3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
Ambient class during transport (IEC 60721)2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

Product details

The Siemens 3RW4028-1TB04 is a SIRIUS soft starter in the S0 frame size, designed to ramp three-phase induction motors up to 38 A at 40 °C (34 A at 50 °C, 31 A at 60 °C) on a 400 V line. It's a current-production part — no lifecycle concerns for a new BOM line. The 45 mm width and screw/snap-on mounting mean it drops into a standard DIN-rail panel without extra bracketry, and the integrated bypass contact system pulls the thyristors out of the circuit once the motor is at speed, so you're not dissipating heat from the semiconductors during continuous run.

The S0 frame keeps the footprint compact — 45 mm wide, 125 mm high, 155 mm deep — and the 60 mm upward / 40 mm downward / 15 mm side clearance leaves room for adjacent devices in a dense panel.

Above that, derate to 34 A at 50 °C and 31 A at 60 °C. The 20 % minimum load means it won't regulate properly below that motor current, so it's not a fit for fractional-horsepower motors. The 600 V rated insulation voltage (pollution degree 3 per IEC 60947-4-2) covers 400 V and 480 V systems with margin. Control voltage is 24 V AC/DC at 50/60 Hz.

The auxiliary contacts accept 2x conductors from 20 to 14 AWG. The main power terminals accept 2x solid conductors from 0.5 to 2.5 mm². Maximum wire length to the motor is 300 m — keep that in mind for remote installations.

Frequently asked questions

What are the key ratings for this soft starter?

Rated 38 A at 40 °C, 34 A at 50 °C, 31 A at 60 °C. Control voltage 24 V AC/DC. Insulation voltage 600 V. Minimum load 20 %. Integrated bypass. S0 frame, 45 mm wide.

Does it have an integrated bypass?

Yes, the integrated bypass contact system engages once the motor reaches speed, taking the thyristors out of the circuit to reduce heat dissipation.

What mounting options does it support?

Screw and snap-on mounting onto a 35 mm DIN rail. With an additional fan, it can be rotated ±90° on a vertical surface; without the fan, rotation is limited to ±10°.

What is the maximum wire length to the motor?

300 m.
