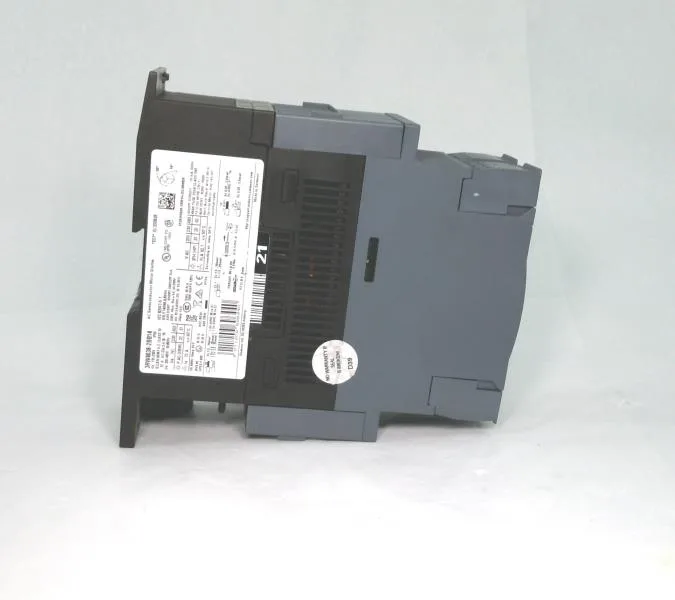

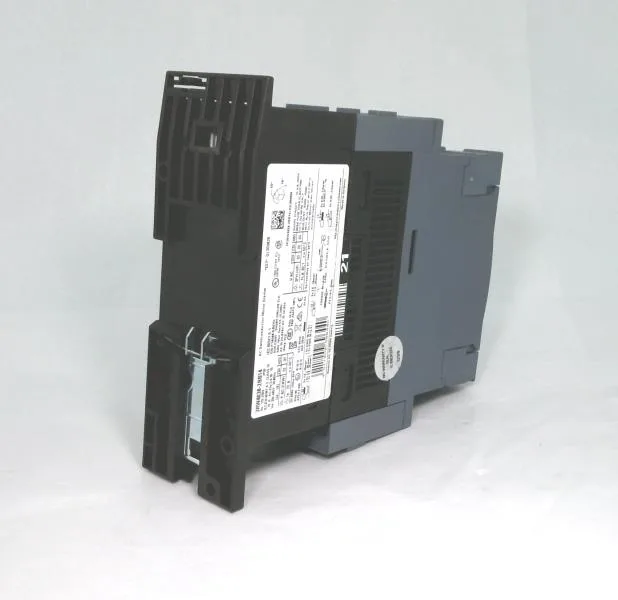

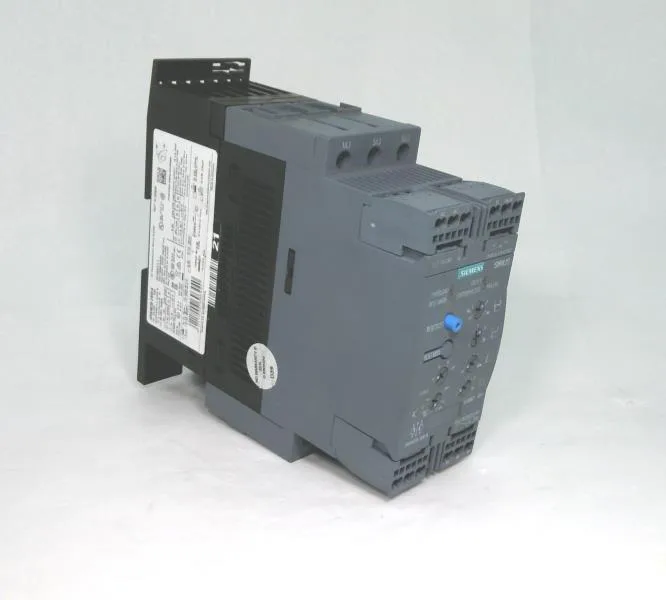

Siemens 3RW4038-2BB14

Siemens 3RW4038-2BB14 SIRIUS Soft Starter, 72 A, Size S2

MPN 3RW4038-2BB14
Active

Siemens SIRIUS soft starter, 3RW4038-2BB14, size S2, rated 72 A at 40 °C, 110...230 V DC control supply, with integrated bypass contactor.

$652.78 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RW4038-2BB14 specifications
ParameterValue
Mountingscrew and snap-on mounting
Depth170 mm
Width55 mm
Height160 mm

Product details

What the 72 A rating means for your motor load

The Siemens 3RW4038-2BB14 is a SIRIUS soft starter rated 72 A at 40 °C, which means it handles motor starting current for loads up to roughly 37 kW on a 400 V three-phase system — the current rating is the one that governs the real motor fit, not the frame size. The integrated bypass contactor means the thyristors are shorted out once the motor is up to speed, so heat dissipation in the cabinet drops to near zero during run — a real advantage for dense DIN-rail layouts where every watt counts.

Panel integration — DIN rail and clearances

Clearance rules: 60 mm upwards, 40 mm downwards, 30 mm at the side. If you add the optional fan, the mounting surface can tilt ±90° rotatable and ±22.5° front-to-back; without the fan, only ±10° rotatable and ±10° tilt.

Wiring and control connections

Main power circuit uses screw-type terminals accepting 2x (1.5... 25 mm²) stranded or 2x (0.25... 2.5 mm²) solid. Auxiliary and control circuits use spring-loaded terminals for 2x (24... 14) AWG. Control supply voltage is 110...230 V DC — note that's DC only, not AC, so don't feed it from a standard 230 V AC control transformer without a rectifier. The maximum motor cable length is 300 m.

MPN
3RW4038-2BB14
