Siemens 3RW5076-6AB14 — Soft Starters

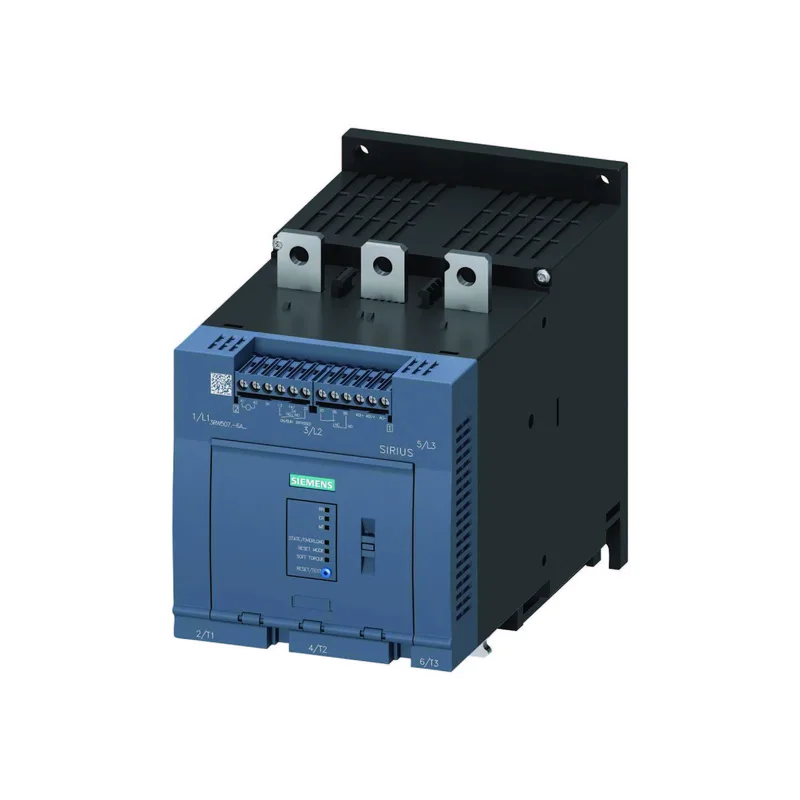

Siemens 3RW5076-6AB14 Soft Starter, 200 A, ATEX, 160 mm

MPN3RW5076-6AB14
Active

Siemens SIRIUS 3RW5076-6AB14 soft starter, 200 A minimum, 200–480 V rated, ATEX/UKEX/IECEx, Trip Class 10A/10E/20E, screw fixing, 160 × 230 × 282 mm.

$1,987.55 – $4,356.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RW5076-6AB14 — Identification
ParameterValue
Product designationSoft starter
Product brand nameSIRIUS
3RW5076-6AB14 — Power & Motor Rating
ParameterValue
Rated motor power at 400 V (40 °C)250 kW
Rated motor power at 230 V (40 °C)132 kW
Rated operational current at 40 °C470 A
Rated operational current at 50 °C416 A
Rated operational current at 60 °C380 A
Rated insulation voltage600 V
Minimum settable current (% of Ie)15 %; Relative to smallest settable Ie
Power loss during startup (50 °C)4 438 W
3RW5076-6AB14 — Control & Connection
ParameterValue
Control supply voltage typeAC
Main circuit terminal typebusbar connection
Control circuit wire range, solid1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
Control circuit wire range, finely stranded (with ferrule)1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
Analog outputYes; 4 ... 20 mA (default) / 0 ... 10 V (parameterizable with High Feature HMI)
Auxiliary contact rated current, AC-15 at 250 V3 A
Control supply voltage tolerance, AC 50 Hz (max.)10 %
Control supply voltage tolerance, AC 50 Hz (min.)-15 %
Control supply voltage tolerance, AC 60 Hz (max.)10 %
Control supply voltage tolerance, AC 60 Hz (min.)-15 %
Control supply frequency tolerance (max.)10 %
Control supply frequency tolerance (min.)-10 %
Operating frequency tolerance (max.)10 %
Operating frequency tolerance (min.)-10 %
3RW5076-6AB14 — Protection & Features
ParameterValue
Motor overload protectionYes; Electronic motor overload protection
Thermistor motor protectionNo
Adjustable current limitationYes
Intrinsic device protectionYes
Pollution degree3, acc. to IEC 60947-4-2
3RW5076-6AB14 — Mechanical
ParameterValue
Height230 mm
Width160 mm
Depth282 mm
Weight7.3 kg
Mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
Fastening methodscrew fixing
Mounting clearance, top100 mm
Mounting clearance, bottom75 mm
Mounting clearance, side5 mm
Mounting clearance, front10 mm
3RW5076-6AB14 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
Storage / transport temperature range-40 ... +80 °C
Max. installation altitude5 000 m; derating as of 1000 m, see Manual
Ambient class during operation (IEC 60721)3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
Ambient class during transport (IEC 60721)2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)
3RW5076-6AB14 — Specifications
ParameterValue
Trip ClassCLASS 10A / 10E (preset) / 20E; acc. to IEC 60947-4-2
Number Of Controlled Phases2
Utilization category according to IEC 60947-4-2AC-53a
Product Feature Integrated Bypass Contact SystemYes
Start-Up Ramp Time Of Soft Starter0 ... 20 s
Ramp-Down Time Of Soft Starter0 ... 20 s
3RW5076-6AB14 — Electrical
ParameterValue
Current Limiting Value [%] Adjustable130 ... 700 %
Starting Voltage [%]30 ... 100 %
Stopping Voltage [%]50 %; non-adjustable

Product details

The Siemens 3RW5076-6AB14 is a SIRIUS soft starter rated for a minimum set current of 200 A and a rated voltage of 200 to 480 V. It carries ATEX, UKEX, and IECEx approvals for explosive atmospheres, plus CE, UL, and CSA marks — so it clears both IEC and North American compliance gates on the same BOM line.

Trip class and motor protection

Trip class is configurable as CLASS 10A, 10E (preset), or 20E per IEC 60947-4-2. If you have a high-inertia load like a centrifuge or a long-ramp application, switching to 20E buys the extra thermal budget without changing hardware. Minimum load is 15 % relative to the smallest settable Ie — so it won't nuisance-trip on lightly loaded motors that draw well below the starter's floor.

Mounting and environmental

Fastened by screw fixing — no DIN-rail clip on this frame size. Dimensions are 160 mm wide, 230 mm high, 282 mm deep. Clearance requirements: 100 mm upwards, 10 mm forwards, 0 mm backwards, 75 mm downwards, 5 mm at the side. That 0 mm backwards means it can sit flush against a back panel, which saves depth in a tight enclosure. Shock resistance is 15 g / 11 ms, dropping to 12 g / 11 ms with potential contact lifting — fine for most industrial floor environments, but watch it on a vibrating compressor skid.

Frequently asked questions

What ATEX and UKEX certifications does 3RW5076-6AB14 carry?

ATEX, UKEX, and IECEx approvals are all listed as Yes, plus CE, UL, and CSA marks. That covers explosive-atmosphere installations in the EU, UK, and North America on one part number.

What fieldbus protocols does this soft starter support?

PROFIBUS, Modbus RTU, Modbus TCP, and EtherNet/IP are all native. PROFIenergy is supported when used with the PROFINET Standard communication module.

Where can I buy 3RW5076-6AB14?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm commitment.
