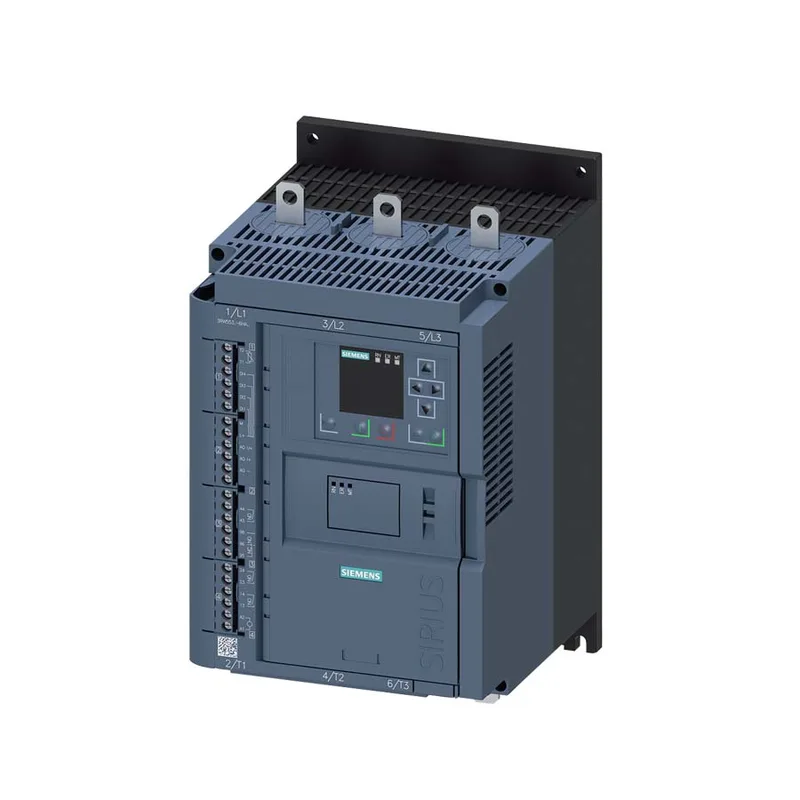

Siemens 3RW5526-1HA14 — Soft Starters

Siemens 3RW5526-1HA14 Soft Starter, ATEX, 200-480 V, Trip Cl

MPN3RW5526-1HA14
Active

Siemens SIRIUS 3RW55 soft starter, order code 3RW5526-1HA14, ATEX/IECEx certified, 200-480 V rated, trip class 10A/10E/20E/30E, screw terminals, UL/CSA/CE.

$1,469.39 – $2,313.00Ref. price · indicative, final on quote
Siemens 3RW5526-1HA14 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RW5526-1HA14 — Identification
ParameterValue
Product designationSoft starter
Product brand nameSIRIUS
3RW5526-1HA14 — Power & Motor Rating
ParameterValue
Rated motor power at 400 V (40 °C)37 kW
Rated motor power at 230 V (40 °C)22 kW
Rated operational current at 40 °C133 A
Rated operational current at 50 °C118 A
Rated operational current at 60 °C107 A
Rated insulation voltage480 V
Minimum settable current (% of Ie)10 %; Relative to set Ie
Power loss during startup (50 °C)921 W
3RW5526-1HA14 — Control & Connection
ParameterValue
Control supply voltage typeAC
Main circuit terminal typebox terminal
Control circuit wire range, solid1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
Control circuit wire range, finely stranded (with ferrule)1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
Analog outputYes; 4 ... 20 mA (default) / 0 ... 10 V
Auxiliary contact rated current, AC-15 at 250 V3 A
Auxiliary contact rating (UL)R300-B300
Control supply voltage tolerance, AC 50 Hz (max.)10 %
Control supply voltage tolerance, AC 50 Hz (min.)-15 %
Control supply voltage tolerance, AC 60 Hz (max.)10 %
Control supply voltage tolerance, AC 60 Hz (min.)-15 %
Control supply frequency tolerance (max.)10 %
Control supply frequency tolerance (min.)-10 %
Operating frequency tolerance (max.)10 %
Operating frequency tolerance (min.)-10 %
Operating voltage tolerance, inside-delta (max.)10 %
Operating voltage tolerance, inside-delta (min.)-15 %
3RW5526-1HA14 — Protection & Features
ParameterValue
Motor overload protectionYes; Full motor protection (thermistor motor protection and electronic motor overload protection) / When using the motor overload protection according to ATEX, an upstream contactor is required in inside-delta circuit.
Thermistor motor protectionYes; Type A PTC or Klixon / Thermoclick
Adjustable current limitationYes
Inside-delta connectionYes
Intrinsic device protectionYes
Pollution degree3, acc. to IEC 60947-4-2
3RW5526-1HA14 — Mechanical
ParameterValue
Height306 mm
Width185 mm
Depth203 mm
Weight7.15 kg
Mounting positionVertical (can be rotated +/- 90° and tilted forward or backward +/- 22.5°)
Fastening methodscrew fixing
Mounting clearance, top100 mm
Mounting clearance, bottom75 mm
Mounting clearance, side5 mm
Mounting clearance, front10 mm
3RW5526-1HA14 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
Storage / transport temperature range-40 ... +80 °C
Max. installation altitude5 000 m; Derating as of 1000 m, see catalog
Ambient class during operation (IEC 60721)3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
Ambient class during transport (IEC 60721)2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)
3RW5526-1HA14 — Specifications
ParameterValue
Trip ClassCLASS 10A / 10E (default) / 20E / 30E; acc. to IEC 60947-4-2
Number Of Controlled Phases3
Utilization category according to IEC 60947-4-2AC 53a
Product Feature Integrated Bypass Contact SystemYes
Start-Up Ramp Time Of Soft Starter0 ... 360 s
Ramp-Down Time Of Soft Starter0 ... 360 s
3RW5526-1HA14 — Electrical
ParameterValue
Current Limiting Value [%] Adjustable125 ... 800 %
Starting Voltage [%]20 ... 100 %
Stopping Voltage [%]50 %; non-adjustable

Product details

Compliance and Certification Overview

The Siemens 3RW5526-1HA14 soft starter carries ATEX and IECEx certification for use in potentially explosive atmospheres, alongside UL, CSA, and CE marking — a fully documented compliance package for global installations. Rated voltage spans 200 to 480 V, covering common low-voltage motor networks worldwide. Trip class is selectable among CLASS 10A, 10E (default), 20E, or 30E per IEC 60947-4-2, giving the commissioning engineer flexibility to match motor thermal characteristics without changing hardware.

Dimensions are 185 mm wide, 306 mm high, and 203 mm deep, with required clearances: 100 mm upward, 75 mm downward, 10 mm forward, 5 mm at the side, and 0 mm backward — panel layout must respect these for adequate ventilation and access. Screw terminals are standard; no special tooling required for wiring.

Functional Capabilities

Built-in features include voltage ramp start, torque control, breakaway pulse, pump ramp down, DC braking, and motor heating — covering soft starting, stopping, and protection for a wide range of motor-driven loads. Communication options include PROFIBUS, Modbus RTU, Modbus TCP, EtherNet/IP, and PROFINET with PROFIenergy support, plus an analog output configurable for 4-20 mA or 0-10 V. Diagnostic capabilities include an event list, error logbook, trace function, and remote reset — useful for fault isolation and remote troubleshooting. Accuracy Class 5 per IEC 61557-12 applies to the measurement functions, and a service factor of 1.15 is supported for overload settings.

Frequently asked questions

What compliance documentation does this brand provide for 3RW5526-1HA14 (RoHS, REACH, UL, IEC)?

The part carries UL, CSA, and CE marking, plus ATEX and IECEx certification for hazardous locations. RoHS and REACH declarations are standard with Siemens but are not detailed in this record.

What is 3RW5526-1HA14's listed ATEX certification?

ATEX certification is listed as Yes, confirming suitability for explosive atmospheres as defined by the ATEX directive.

What are the mounting dimensions and clearances for 3RW5526-1HA14?

Width 185 mm, height 306 mm, depth 203 mm. Required clearances: 100 mm upward, 75 mm downward, 10 mm forward, 5 mm at the sides, 0 mm backward.

MPN
3RW5526-1HA14
