Siemens 3RW5980-0HF00 — Soft Starters

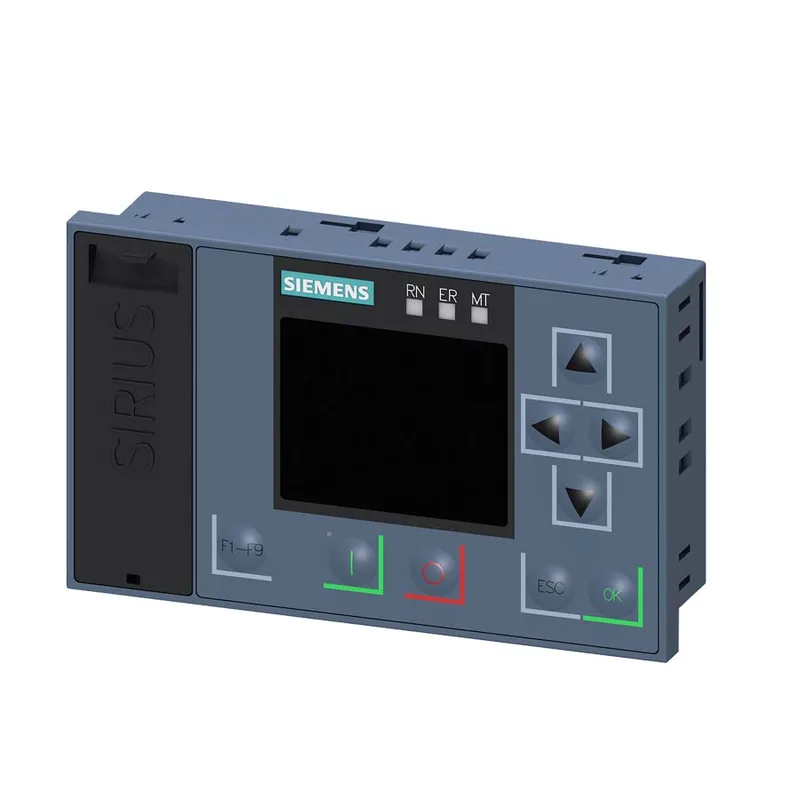

Siemens 3RW5980-0HF00 SIRIUS HMI Module for 3RW55 Soft Start

MPN3RW5980-0HF00
Active

Siemens SIRIUS HMI module, High-Feature design, for 3RW55 soft starter, snap-on mounting, 111 x 68 x 32.15 mm.

$347.00 – $384.93Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RW5980-0HF00 — Identification
ParameterValue
Product designationHMI module
Product brand nameSIRIUS
3RW5980-0HF00 — Mechanical
ParameterValue
Height68 mm
Width111 mm
Depth32.15 mm
Mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
Fastening methodsnap-on mounting
3RW5980-0HF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
Storage / transport temperature range-40 ... +80 °C
Ambient class during operation (IEC 60721)3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
Ambient class during transport (IEC 60721)2K2, 2C1, 2S1, 2M2 (max. height of fall 0.8 m)
3RW5980-0HF00 — Other specifications
ParameterValue
Of soft starter3RW55
Product categoryHMI modules
Design of the productHigh-Feature
Substance prohibitance02/15/2018
During storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

Product details

The Siemens 3RW5980-0HF00 is a SIRIUS HMI module designed specifically for the 3RW55 soft starter series. This High-Feature operator interface snaps onto a DIN rail alongside the soft starter, giving the panel builder a local display and control point without separate enclosure wiring. The module measures 111 mm wide by 68 mm tall by 32.15 mm deep, so it occupies roughly the same footprint as a contactor auxiliary — plan the DIN rail layout accordingly.

Snap-on mounting to a standard DIN rail, with the mounting position flexible: vertical surface with ±90° rotation or ±22.5° tilt front-to-back. That covers most cabinet layouts, including slanted sub-panels. Storage range extends to -40 to +80 °C, which is typical for spares held in unheated warehouses.

Frequently asked questions

What soft starter does this HMI module work with?

Designed for the Siemens 3RW55 soft starter series — it is the dedicated HMI module for that platform.

Where can I buy 3RW5980-0HF00?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
