Siemens 3SE2283-0GA43
MPN3SE2283-0GA43
Active

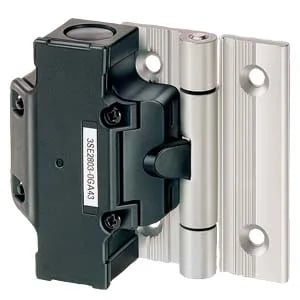

Hinge switch Molded-plastic enclosure with aluminum hinge 1 NO/2 NC, Slow-action contacts for 40 mm profiles Supplied with additional hinge and fixing material Actuating angle 4°
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Cable entry type | 2x (M20 x 1.5) |
| Type of electrical connection | screw-type terminals |
| Insulation voltage rated value | 250 V |
| Surge voltage resistance rated value | 4 kV |
| Thermal current | 2.5 A |
| Material of the enclosure | glass fiber reinforced thermoplast |
| Design of the interface | without |
| Design of the interface for Safety-Related communication | without |
| Shock resistance | 30g / 18 ms |
| Vibration resistance | 10 ... 200 Hz: 20g |
| Width of the sensor | 111.5 mm |
| Design of the housing | special design |
| Parameter | Value |
|---|---|
| At 24 V rated value | 1 A |
| At 125 V rated value | 4.2 A |
| At 230 V rated value | 2 A |
All specifications
| Parameter | Value |
|---|---|
| Design of the housing according to standard | No |
| Reference code according to IEC 81346-2 | B |
| Sensing distance | mechanical |
| During operation | -25 ... +65 °C |
| Mounting | screw fixing |
| Circuit principle | slow-action contacts |
| Protection class IP | IP65 |
| Length of the sensor | 92 mm |
| Substance prohibitance | 07/01/2006 |
| Design of the actuating element | rotary actuator |
| Design of the switching contact | mechanical |
| Design of the switching function | positive opening |
| Product function positive opening | Yes |
| Suitability for use safety switch | Yes |
| Finely stranded with core end processing | 1x (0,5 ... 1 mm²) |
| Number of switching contacts Safety-Related | 2 |
| Number of NC contacts for auxiliary contacts | 2 |
| Number of NO contacts for auxiliary contacts | 1 |
| Mechanical service life (Operating cycles) typical | 1 000 000 |
