Siemens 3SE2283-0GA53
MPN3SE2283-0GA53
Active

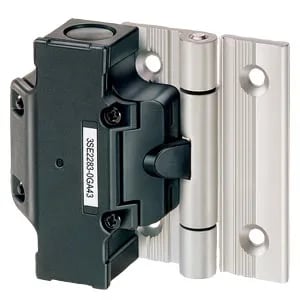

Hinge switch Molded-plastic enclosure with aluminum hinge 1 NO/2 NC slow-action contacts for 40 mm profiles Actuating angle 8° Supplied with additional hinge and fixing material
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | Safety hinge switches |
| Product brand name | SIRIUS |
Switching & Safety
| Parameter | Value |
|---|---|
| Positive opening function | Yes |
| Auxiliary NO contacts | 1 |
| Auxiliary NC contacts | 2 |
| Circuit principle | slow-action contacts |
| Switching function design | positive opening |
| Active principle | mechanical |
| Safety-related switching contacts | 2 |
| Suitable as safety switch | Yes |
| Switching contact design | mechanical |
| Safety-related interface connector | without |
Mechanical
| Parameter | Value |
|---|---|
| Actuating element design | rotary actuator |
| Mechanical service life (typ. operating cycles) | 1 000 000 |
| Enclosure material | glass fiber reinforced thermoplast |
| Fastening method | screw fixing |
| Length | 92 mm |
| Width | 111.5 mm |
| Housing design standard | special design |
Environmental
| Parameter | Value |
|---|---|
| IP protection rating | IP65 |
| Operating temperature range | -25 ... +65 °C |
Wiring
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Interface connector design | without |
| Conductor cross-section, finely stranded (with ferrule) | 1x (0,5 ... 1 mm²) |
| Cable entry type | 2x (M20 x 1.5) |
Electrical
| Parameter | Value |
|---|---|
| Rated insulation voltage | 250 V |
| Thermal current | 2.5 A |
| Rated impulse withstand voltage | 4 kV |
| Rated current at 24 V | 1 A |
| Rated current at 125 V | 4.2 A |
