Rated switching currents — the numbers that govern the circuit
The 3SE2902-0AB20: This foot switch carries a 16 A rated value at both 230 V and 400 V, which covers most control-circuit and small-motor loads in industrial panels. At 24 V the rating drops to 3 A, and at 250 V it is 0.25 A — the 250 V figure likely reflects a DC switching rating, so confirm the load type before committing the BOM line. The contact block provides 1 normally-open and 1 normally-closed auxiliary contact — enough for a single-pedal start/stop or enable function without an external relay.
IP65 metal enclosure — built for washdown and foot traffic
The metal enclosure carries IP65 protection — dust-tight and protected against water jets from any direction. This makes the 3SE2902-0AB20 suitable for wet-area foot switches on packaging lines, machine tools, or assembly stations where a plastic housing would crack or degrade. Cable entry is M20 x 1.5 — a standard metric gland size. The operating temperature range of -25 to +80 °C covers unheated warehouses and hot machine-side locations.
What ships in the carton — kit completeness check

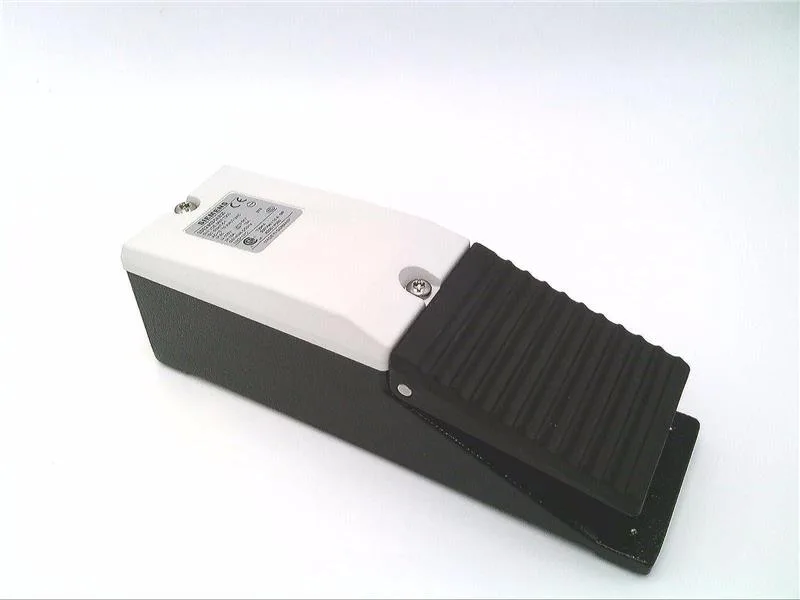

The 3SE2902-0AB20 ships as a single-pedal momentary-contact foot switch with a metal enclosure, 1 NO + 1 NC contact block, and an M20 x 1.5 cable entry gland. No latching mechanism, no interlock, no cover — this is a bare foot switch for applications where the operator holds the pedal down to maintain the circuit.
