Siemens 3SE2912-2AA20 — Limit Switches

Siemens 3SE2912-2AA20 SIRIUS Foot Switch, IP65, Latching

MPN3SE2912-2AA20
Active

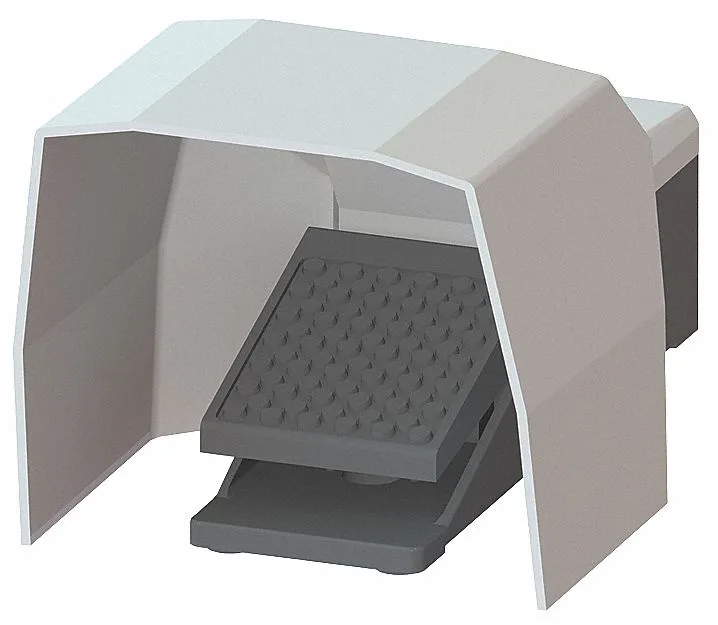

Siemens SIRIUS 3SE2912-2AA20 foot switch, 1-pedal with cover, latching, metal enclosure IP65, 1 NO + 1 NC, cable entry M20 x 1.5.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3SE2912-2AA20 — Identification
ParameterValue
Product designationfoot switch
Product brand nameSIRIUS
3SE2912-2AA20 — Switching & Safety
ParameterValue
Auxiliary NO contacts1
Auxiliary NC contacts1
Suitable as safety switchNo
3SE2912-2AA20 — Environmental
ParameterValue
IP protection ratingIP65
3SE2912-2AA20 — Electrical
ParameterValue
Rated current at 24 V3 A
3SE2912-2AA20 — Mechanical
ParameterValue
Enclosure materialmetal
Minimum actuating force30 N
3SE2912-2AA20 — Wiring
ParameterValue
Cable entry typeM20 x 1.5

Product details

What you're getting

The Siemens SIRIUS 3SE2912-2AA20 is a single-pedal foot switch in a metal IP65 enclosure, so it's built for the floor – dust, washdowns, and the occasional bump from a pallet jack won't kill it. It latches (stays on after you step) instead of momentary, which matters if you're holding a machine in cycle or keeping a test jig powered until you reset it. The cable entry is a standard M20 x 1.5 metric gland hole, and the terminals are one normally-open and one normally-closed contact – one NO and one NC out of the box, wired through the same pedal action.

MPN
3SE2912-2AA20
