Siemens 3SE5000-0AA60-1AJ0
MPN3SE5000-0AA60-1AJ0
Active

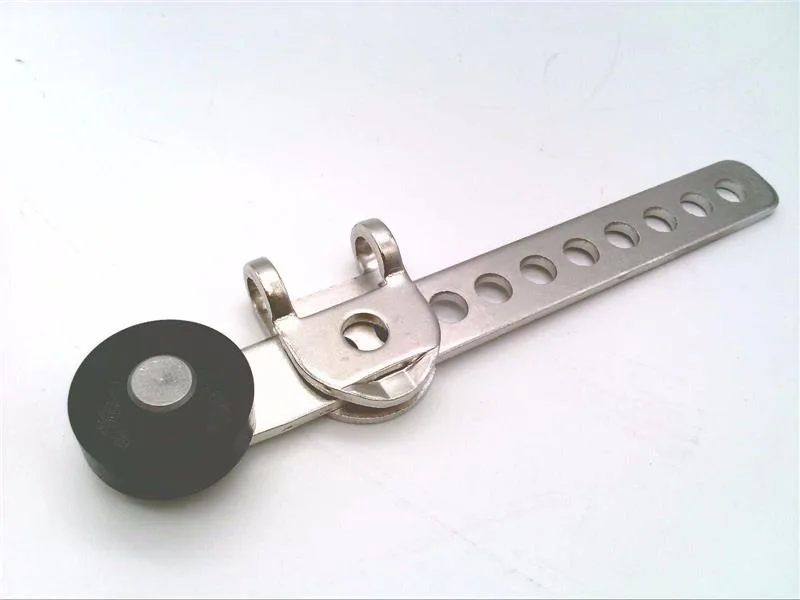

Adjustable-length Twist lever for position switch 3SE51/52 Metal lever 100 mm long Positive fit (grid hole) plastic roller 19 mm
$9.91Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Coating of the enclosure | Other types |
| Design of the interface | without |
| Design of the interface for Safety-Related communication | without |
| Mounting position | any |
| According to IEC 60068-2-6 | 0.35 mm/5g |
| According to IEC 60068-2-27 | 30g / 11 ms |
| Reference code according to IEC 81346-2 | T |
| During storage | -40 ... +90 °C |
| Sensing distance | mechanical |
| During operation | -40 ... +85 °C |
| Mounting | screw fixing |
| Shape of the switch head | roller |
| Substance prohibitance | 07/01/2006 |
| Design of the actuating element | Adjustable twist lever, adjustable-length metal lever with latching, plastic roller 19 mm |
| Outer diameter of the switch head | 19 mm |
| Product function positive opening | Yes |
| For railway applications according to EN 61373 | Category 1, Class B |
| Mechanical service life (Switching cycles) typical | 15 000 000 |
MPN
3SE5000-0AA60-1AJ0
