Siemens 3SE5000-0AD02
MPN3SE5000-0AD02
Active

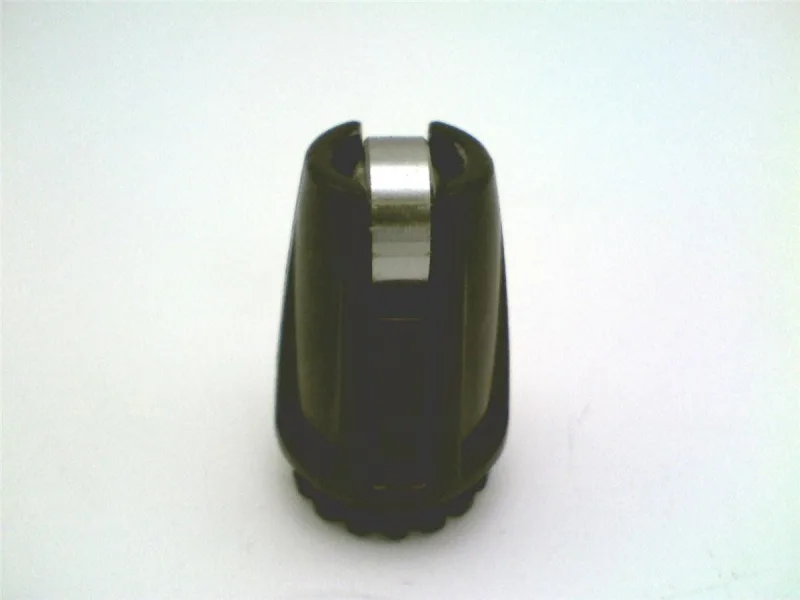

Actuator head for position switch 3SE51/52 Roller plunger, Form C, with Stainless steel roller 13 mm according to EN 50041, with 3 mm overtravel
$17.78 – $43.32Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Coating of the enclosure | Other types |
| Material of the enclosure of the switch head | metal |
| Design of the interface | without |
| Design of the interface for Safety-Related communication | without |
| Mounting position | any |
| According to IEC 60068-2-6 | 0.35 mm/5g |
| According to IEC 60068-2-27 | 30g / 11 ms |
| Standard-Compliant actuator head | EN 50041, design C |
| Reference code according to IEC 81346-2 | T |
| During storage | -40 ... +90 °C |
| Sensing distance | mechanical |
| During operation | -25 ... +85 °C |
All specifications
| Parameter | Value |
|---|---|
| Mounting | lockable plug-in fixing |
| Shape of the switch head | roller |
| Substance prohibitance | 07/01/2006 |
| Design of the actuating element | Roller plunger, high-grade steel roller |
| Outer diameter of the switch head | 13 mm |
| Product function positive opening | Yes |
| Mechanical service life (Operating cycles) typical | 15 000 000 |
| Minimum actuating force in directions of actuation | 20 N |
| Of the supplied actuator head for position switches | 3SE5000-0AD02 |
MPN
3SE5000-0AD02
