Siemens 3SE5000-0AV07-1AK2
MPN3SE5000-0AV07-1AK2
Active

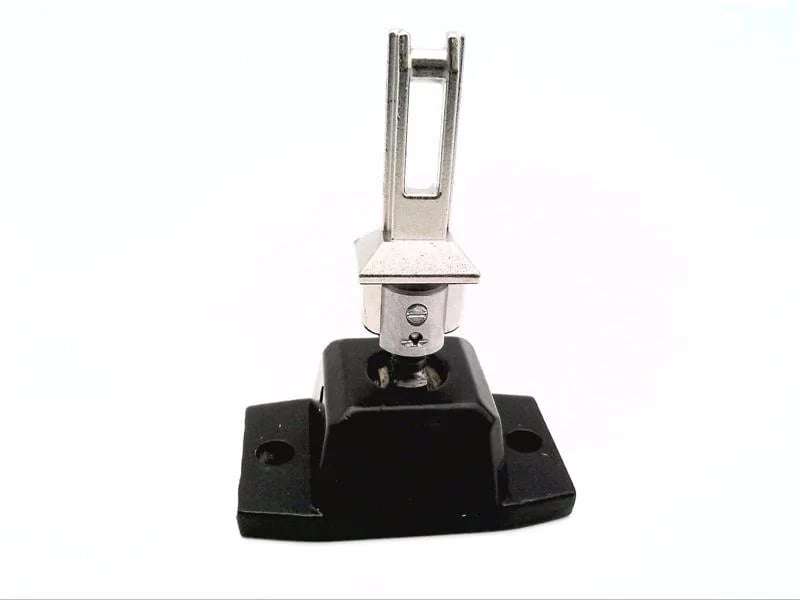

Separate actuator, universal radius actuator 'HEAVY DUTY' version vertically and horizontally adjustable, length = 67 mm for position switch with tumbler 3SE5312/3SE5322 and AS-i 3SF13 position switch with separate actuator 3SE51/3SE52 and AS-i with separate actuator 3SF11/3SF12
$40.64Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | actuator |
| Product brand name | SIRIUS |
Mechanical
| Parameter | Value |
|---|---|
| Actuating element design | universal actuator |
| Mechanical service life (typ. operating cycles) | 1 000 000 |
| Mounting position | any |
| Fastening method | screw fixing |
Switching & Safety
| Parameter | Value |
|---|---|
| Active principle | mechanical |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +85 °C |
| Storage temperature range | -40 ... +90 °C |
| Shock resistance (IEC 60068-2-27) | 30g / 11 ms |
Specifications
| Parameter | Value |
|---|---|
| According to IEC 60068-2-6 | 0.35 mm/5g |
Other specifications
| Parameter | Value |
|---|---|
| Substance prohibitance | 07/01/2006 |
| Reference code according to IEC 81346-2 | T |
MPN
3SE5000-0AV07-1AK2
