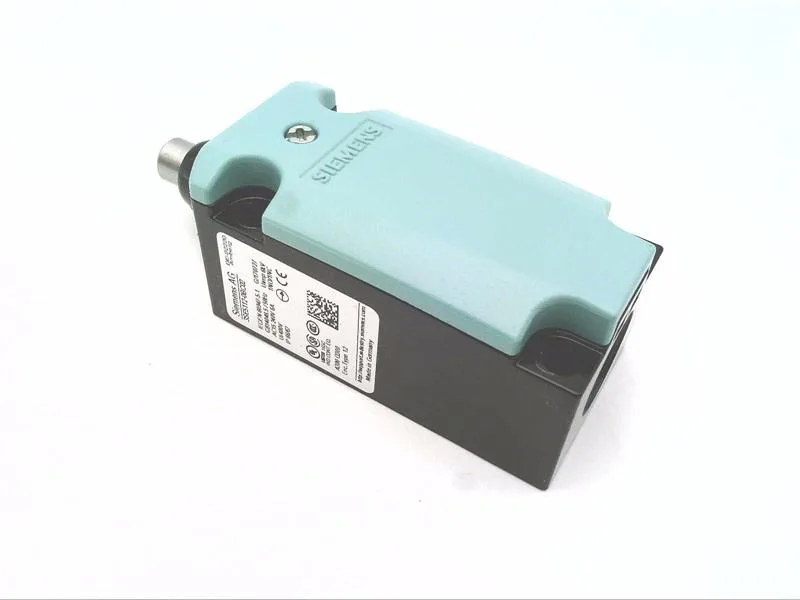

Siemens 3SE5112-0BC02
MPN3SE5112-0BC02
Active
Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC slow-action contacts Rounded plunger with 3 mm overtravel made of stainless steel
$34.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | Mechanical position switches |
| Product brand name | SIRIUS |
| Parameter | Value |
|---|---|
| Positive opening function | Yes |
| Auxiliary NO contacts | 1 |
| Auxiliary NC contacts | 1 |
| Circuit principle | slow-action contacts |
| Switching function design | positive opening |
| Active principle | mechanical |
| Safety-related switching contacts | 1 |
| Suitable as safety switch | Yes |
| Switching contact design | mechanical |
| Safety-related interface connector | without |
| Parameter | Value |
|---|---|
| Actuating element design | Rounded plunger, high-grade steel plunger |
| Standard-compliant actuator head | EN 50041, design B |
| Switch head shape | rounded |
| Repeat accuracy | 0.05 mm |
| Enclosure material | metal |
| Switch head enclosure material | metal |
| Mounting position | any |
| Fastening method | screw fixing |
| Length | 103.5 mm |
| Width | 40 mm |
| Minimum actuating force | 20 N |
| Enclosure coating | cathodic dip coating |
| Housing design standard | block, narrow |
| Parameter | Value |
|---|---|
| IP protection rating | IP66/IP67 |
| Operating temperature range | -25 ... +85 °C |
| Storage temperature range | -40 ... +90 °C |
| Shock resistance (IEC 60068-2-27) | 30g / 11 ms |
| Pollution degree | class 3 |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Interface connector design | without |
| Conductor cross-section, finely stranded (with ferrule) | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Conductor cross-section, solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Cable entry type | 1x (M20 x 1.5) |
| Parameter | Value |
|---|---|
| Rated insulation voltage | 400 V |
| Thermal current | 10 A |
| Rated operating frequency | 50 ... 60 Hz |
| Rated impulse withstand voltage | 6 kV |
| Rated current at 24 V | 3 A |
| Rated current at 125 V | 0.55 A |
| DIAZED gG fuse link, continuous current | 6 A |
| C-characteristic MCB, continuous current | 1 A; for a short-circuit current smaller than 400 A |
| Quick DIAZED fuse link, continuous current | 10 A; for a short-circuit current smaller than 400 A |
| Parameter | Value |
|---|---|
| Of The Supplied Switching Contacts | 3SE5000-0BA00 |
MPN
3SE5112-0BC02
