Siemens 3SE5112-0KD02 — Limit Switches

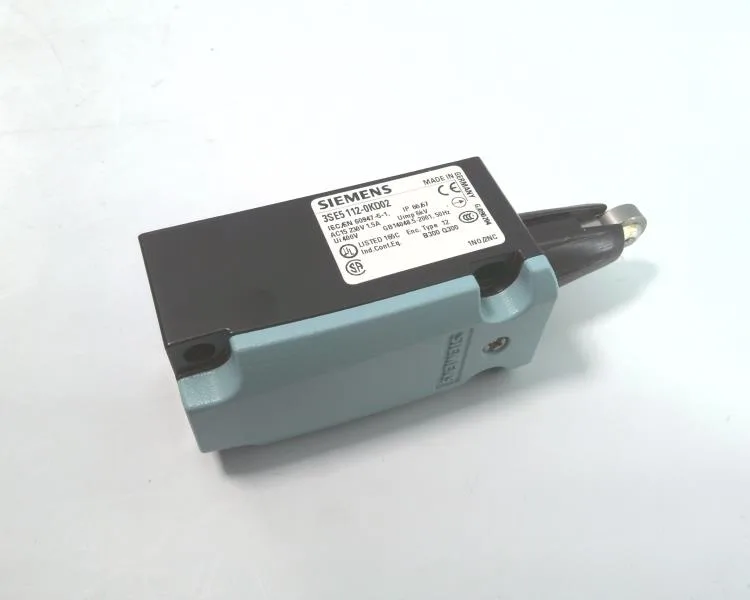

Siemens 3SE5112-0KD02 SIRIUS Mechanical Position Switch, Rol

MPN3SE5112-0KD02
Active

Siemens SIRIUS 3SE5112-0KD02 mechanical position switch, block narrow housing, roller plunger actuator, IP66/IP67, 10 A thermal current, positive opening contacts, EN 50041 design C.

$35.56Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3SE5112-0KD02 key specifications
ParameterValue
Cable entry type1x (M20 x 1.5)
Type of electrical connectionscrew-type terminals
Insulation voltage rated value400 V
Surge voltage resistance rated value6 kV
Thermal current10 A
Continuous current of the DIAZED fuse link gG6 A
Continuous current of the c characteristic MCB1 A; for a short-circuit current smaller than 400 A
Continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
Operating frequency rated value50 ... 60 Hz
Coating of the enclosurecathodic dip coating
Material of the enclosuremetal
Of the supplied empty enclosure with cover3SE5112-0AA00
3SE5112-0KD02 — By operating voltage
ParameterValue
At 24 V rated value3 A
At 125 V rated value0.55 A
At 240 V rated value6 A
At 250 V rated value0.27 A
At 400 V rated value0.12 A

All specifications

3SE5112-0KD02 additional specifications
ParameterValue
Material of the enclosure of the switch headmetal
Design of the interfacewithout
Design of the interface for Safety-Related communicationwithout
Mounting positionany
For AWG cables solid1x (20 ... 16), 2x (20 ... 18)
For AWG cables stranded1x (20 ... 16), 2x (20 ... 18)
Vibration resistance according to IEC 60068-2-60.35 mm/5g
Width of the sensor40 mm
Design of the housingblock, narrow
Design of the housing according to standardYes
According to IEC 60068-2-2730g / 11 ms
Standard-Compliant actuator headEN 50041, design C
Reference code according to IEC 81346-2B
Solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
During storage-40 ... +90 °C
Repeat accuracy0.05 mm
Sensing distancemechanical
During operation-25 ... +85 °C
Mountingscrew fixing
Circuit principleslow-action contacts
Degree of pollutionclass 3
Protection class IPIP66/IP67
Length of the sensor116.3 mm
Shape of the switch headroller
Of the supplied basic switch3SE5112-0KA00
Substance prohibitance07/01/2006
Design of the actuating elementRoller plunger, high-grade steel roller
Design of the switching contactmechanical
Design of the switching functionpositive opening
Product function positive openingYes
Suitability for use safety switchYes
Of the supplied switching contacts3SE5000-0KA00
Finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
Number of switching contacts Safety-Related2
Number of NC contacts for auxiliary contacts2
Number of NO contacts for auxiliary contacts1
Mechanical service life (Operating cycles) typical15 000 000
Minimum actuating force in directions of actuation20 N
Of the supplied actuator head for position switches3SE5000-0AD02

Product details

The Siemens 3SE5112-0KD02 is a SIRIUS mechanical position switch with a roller plunger actuator — a positive-opening limit switch built to EN 50041 design C. The roller is high-grade steel, the housing is metal with cathodic dip coating, and the whole thing seals to IP66/IP67. That means it handles washdown environments and outdoor exposure without a secondary enclosure. Rated thermal current is 10 A, with switching capacities at 24 V (3 A), 240 V (6 A), and 400 V (0.12 A) — the 240 V figure is the one you'll most often see on a motor-control circuit. The contacts are slow-action with positive opening, so they meet the safety-circuit requirement for forcibly separating welded contacts.

Mounts in any position via screw fixing. The cable entry is a single M20 x 1.5 gland — standard for panel knockouts. Wiring is screw-type terminals accepting 1x (0.5–1.5 mm²) solid or 2x (0.5–0.75 mm²) solid, or AWG equivalents. Strip length and torque are per the terminal marking; the terminals are sized for the listed cross-sections, not for paralleling heavier loads. The supplied basic switch inside is 3SE5112-0KA00 — so if you ever need to replace just the switching element (not the head or housing), that's the sub-part number.

Frequently asked questions

Where can I buy 3SE5112-0KD02 and how is it quoted?

It's sourced through independent distribution and quoted to order against an RFQ. Availability and current pricing are confirmed at quote time — no blanket stock count or price on the page.

What is the 3SE5112-0KD02's enclosure rating and what does it mean?

IP66/IP67 — dust-tight and protected against powerful water jets (IP66) and temporary immersion (IP67). Suitable for washdown zones and outdoor mounting without an extra cover.

Does the 3SE5112-0KD02 have positive opening contacts?

Yes. The switching function is positive opening — meaning the contacts are mechanically forced open even if they weld. That's a safety-circuit requirement per IEC 60947-5-1.

What actuator head does the 3SE5112-0KD02 use?

It has a roller plunger actuator with a high-grade steel roller, compliant with EN 50041 design C. The roller is replaceable if worn.
