Siemens 3SE6605-2BA01
MPN3SE6605-2BA01
Active

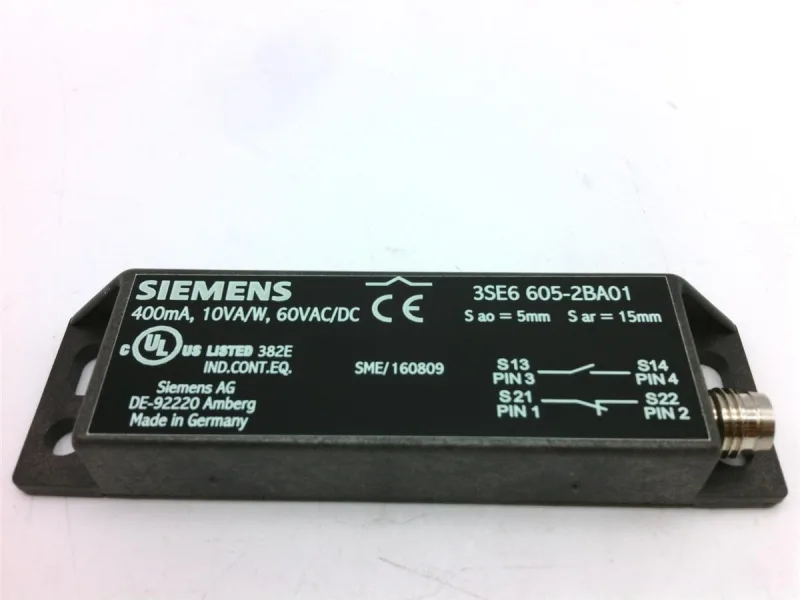

magnetically-operated switch, contact block, rectangular large 25 x 88 mm, contacts 1 NC/1 NO,plug M8, pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14. required solenoid 3SE6704-2BA or with increased operating distance 8 mm 3SE6701-2BA.
$50.80Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | Magnetically operated switch |
| Product brand name | SIRIUS |
Switching & Safety
| Parameter | Value |
|---|---|
| Auxiliary NO contacts | 1 |
| Auxiliary NC contacts | 1 |
| Circuit principle | reed switches |
| Switching function design | NC contact and NO contact |
Mechanical
| Parameter | Value |
|---|---|
| Actuating element design | magnet |
| Enclosure material | plastic |
| Fastening method | screw fixing |
| Length | 88 mm |
| Width | 25 mm |
| Housing design standard | block |
Environmental
| Parameter | Value |
|---|---|
| IP protection rating | IP67 |
Wiring
| Parameter | Value |
|---|---|
| Electrical connection type | M8 connector, 4-pole |
