Siemens 3SE7140-1BD00-0AS0
MPN3SE7140-1BD00-0AS0

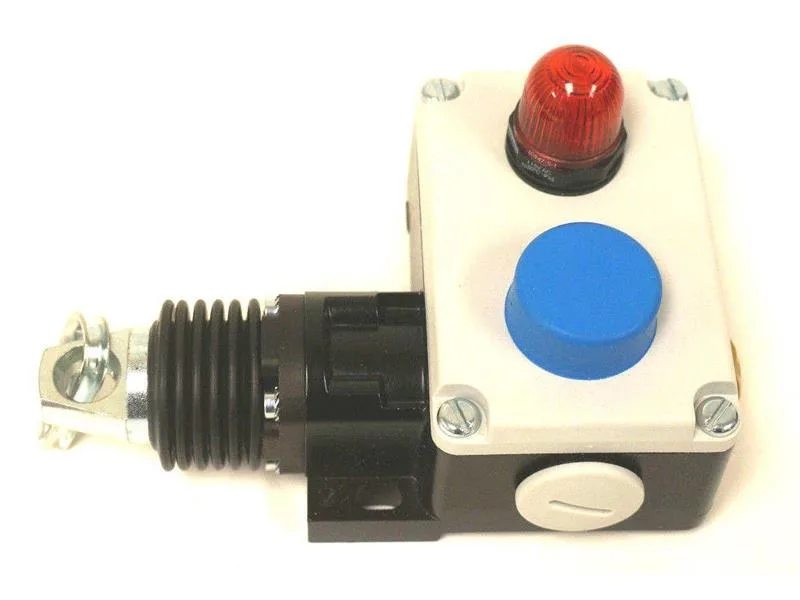

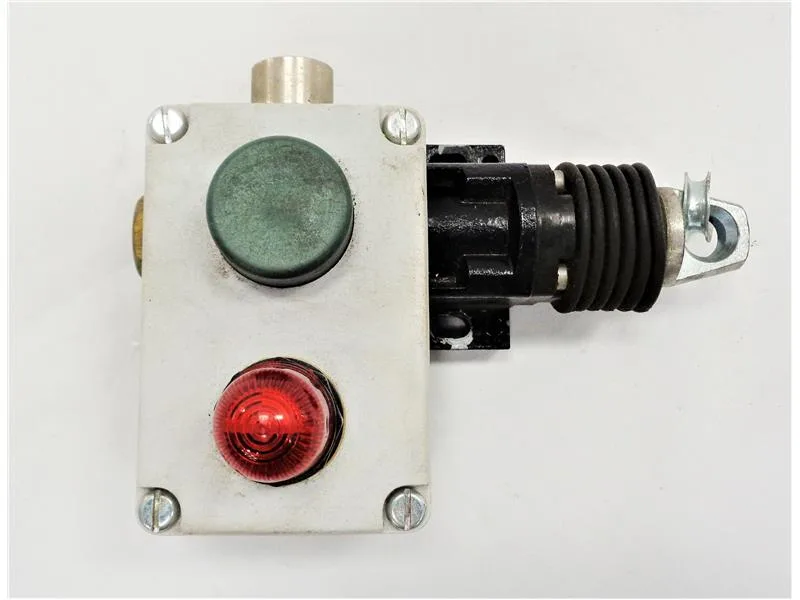

Safety cable-operated switch Metal enclosure, Rope length 50m 2xM25x1.5; 1 NO/1 NC, Latching, only Bowden wire function, Pushbutton release, Red LED, 115 V
$217.17Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | cable-operated switch |
| Product brand name | SIRIUS |
| Parameter | Value |
|---|---|
| Auxiliary NO contacts | 1 |
| Auxiliary NC contacts | 1 |
| Circuit principle | Jump function |
| Safety-related switching contacts | 1 |
| Parameter | Value |
|---|---|
| IP protection rating | IP65 |
| Pollution degree | class 3 |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Conductor cross-section, finely stranded (with ferrule) | 2x (0.5 ... 2.5 mm²) |
| Conductor cross-section, solid | 2x (0.5 ... 2.5 mm²) |
| Cable entry type | 2x M25 x 1,5 |
| Parameter | Value |
|---|---|
| Rated insulation voltage | 400 V |
| Thermal current | 6 A |
| Rated impulse withstand voltage | 6 kV |
| Rated current at 24 V | 3 A |
| DIAZED gG fuse link, continuous current | 6 A |
| Parameter | Value |
|---|---|
| Enclosure material | metal |
| Fastening method | screw fixing |
| Enclosure coating | painted |
