Siemens 3SE7160-1AE04
MPN3SE7160-1AE04
Active

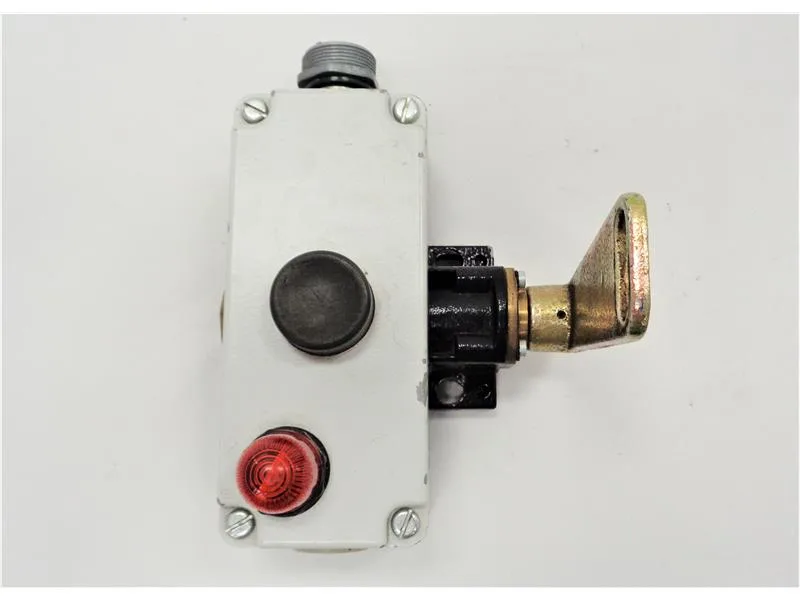

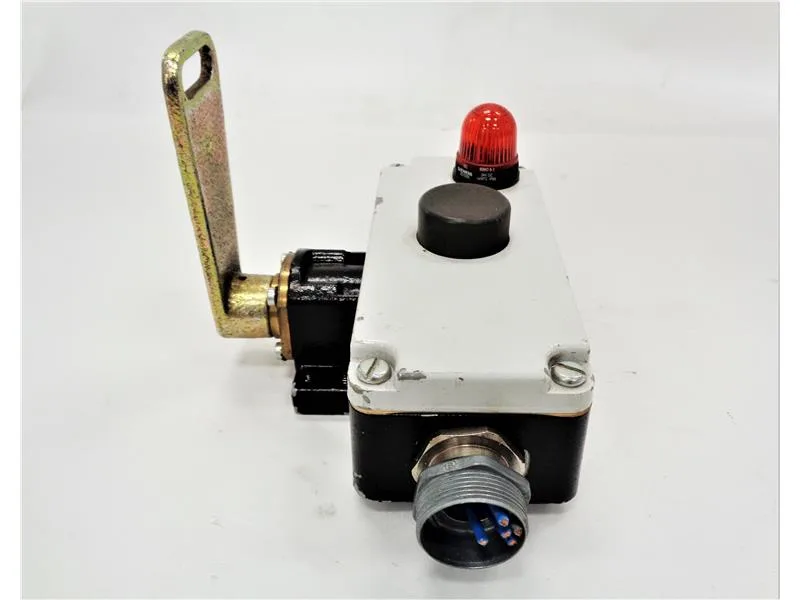

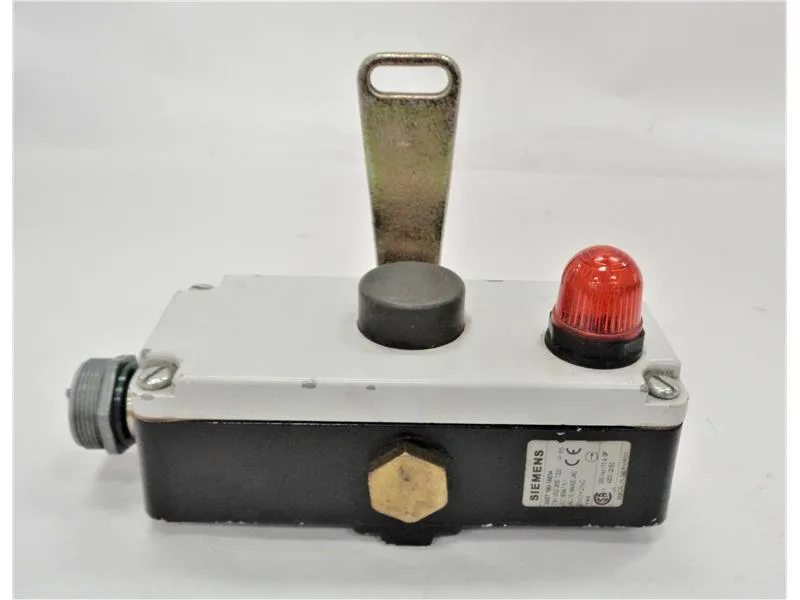

Cable-operated switch and lever Metal enclosure, 2 x M25 x 1.5; 2 NO+2 NC, latching according to EN13850 and pushbutton release with LED lamp red DC 24 V, 2-sided operation, for wire lengths up to 2 x 100 m
$311.15Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | cable-operated switch |
| Product brand name | SIRIUS |
Switching & Safety
| Parameter | Value |
|---|---|
| Auxiliary NO contacts | 2 |
| Auxiliary NC contacts | 2 |
| Circuit principle | Jump function |
| Safety-related switching contacts | 2 |
Environmental
| Parameter | Value |
|---|---|
| IP protection rating | IP65 |
| Pollution degree | class 3 |
Wiring
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Conductor cross-section, finely stranded (with ferrule) | 2x (0.5 ... 2.5 mm²) |
| Conductor cross-section, solid | 2x (0.5 ... 2.5 mm²) |
| Cable entry type | 2x M25 x 1,5 |
Electrical
| Parameter | Value |
|---|---|
| Rated insulation voltage | 400 V |
| Thermal current | 6 A |
| Rated impulse withstand voltage | 6 kV |
| Rated current at 24 V | 3 A |
| DIAZED gG fuse link, continuous current | 6 A |
Mechanical
| Parameter | Value |
|---|---|
| Mechanical service life (typ. operating cycles) | 100 000 |
| Enclosure material | metal |
| Fastening method | screw fixing |
| Enclosure coating | painted |
MPN
3SE7160-1AE04
