Siemens 3SF5813-2DE20 — Safety Interlock Switches

Siemens 3SF5813-2DE20 AS-i E-Stop, IP67, 4I/3O, pull-to-unla

MPN3SF5813-2DE20

Siemens AS-Interface emergency stop enclosure, 3SF5813-2DE20, IP67, A/B slave 4I/3O, pull-to-unlatch, integrated LED, 22 mm mounting, 65 x 85 x 154 mm.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3SF5813-2DE20 — Safety Function
ParameterValue
Actuating element designEMERGENCY STOP mushroom pushbutton / illuminated pushbutton switch
3SF5813-2DE20 — Contacts
ParameterValue
Auxiliary NC contacts1
Auxiliary NO contacts2
3SF5813-2DE20 — Mechanical
ParameterValue
Enclosure materialmetal
Housing designAS-Interface enclosure with standard equipment
3SF5813-2DE20 — Environmental
ParameterValue
Ingress protection (IP rating)IP67
Operating temperature range-25 ... +70 °C
Storage temperature range-40 ... +80 °C

Product details

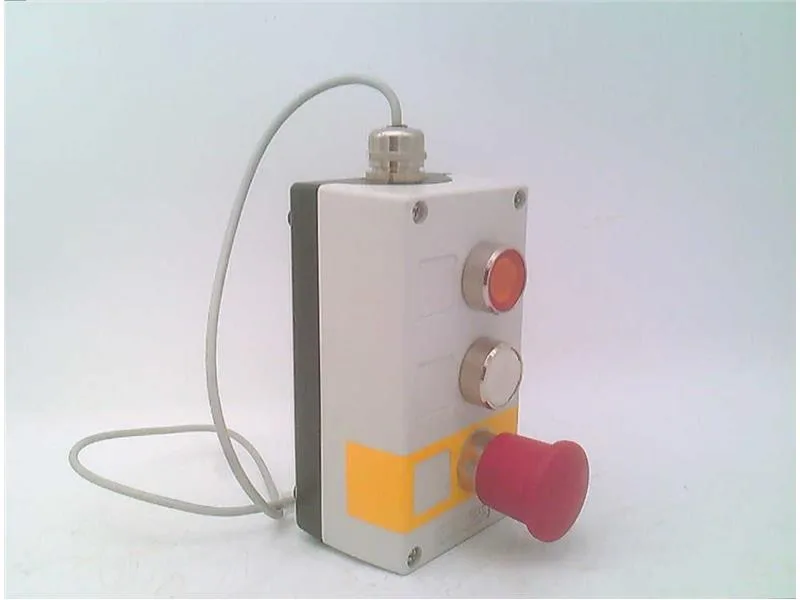

The Siemens 3SF5813-2DE20 is a fully integrated AS-Interface emergency stop station — an IP67-rated metal enclosure housing the E-stop mushroom pushbutton, illuminated pushbutton switch, and an A/B slave with 4 inputs and 3 outputs. The pull-to-unlatch mechanism means it won't reset accidentally; you have to physically pull the actuator to clear the stop condition, which is the standard expectation for a guarded machine restart.

IP67 means the enclosure and the operator elements handle washdown and dust ingress — this unit is meant for the line-side environment, not a climate-controlled cabinet. The 22 mm mounting diameter is the standard panel cutout for the operator; the rectangular metal enclosure (65 mm deep, 85 mm wide, 154 mm tall) mounts vertically on a floor or machine frame, not a DIN rail. The A/B slave type (4I/3O) is AS-Interface v3.0 compatible, so it works on both standard A and extended B addressing schemes — no gateway swap needed if you're upgrading an older A-only network.

Frequently asked questions

Where can I buy 3SF5813-2DE20 and get current pricing?

Sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm number.

What does the IP67 rating mean for this emergency stop?

IP67 means the enclosure and operator elements are dust-tight and protected against temporary immersion in water — suitable for washdown environments and outdoor machine stations without a secondary cover.

Does 3SF5813-2DE20 have a pull-to-unlatch mechanism?

Yes, the unlocking device is a pull-to-unlatch mechanism — the E-stop must be physically pulled out to clear the stop condition, preventing accidental reset.
