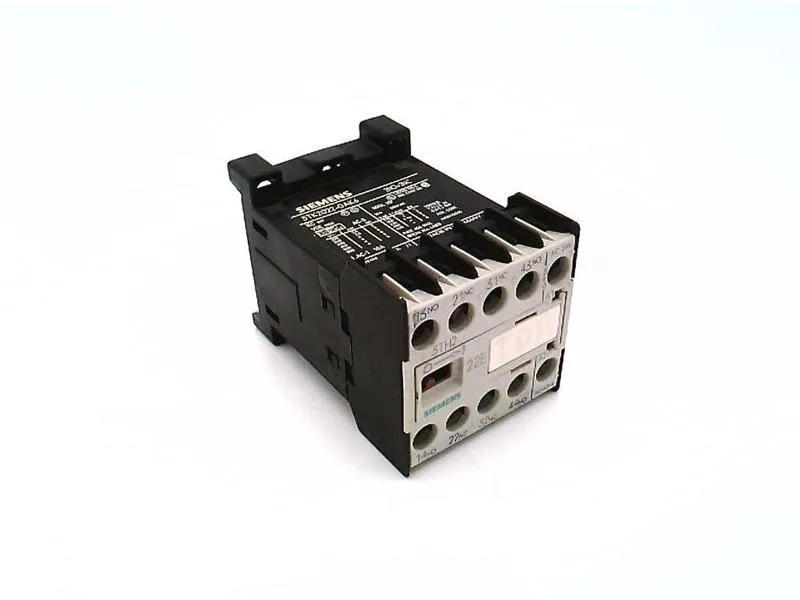

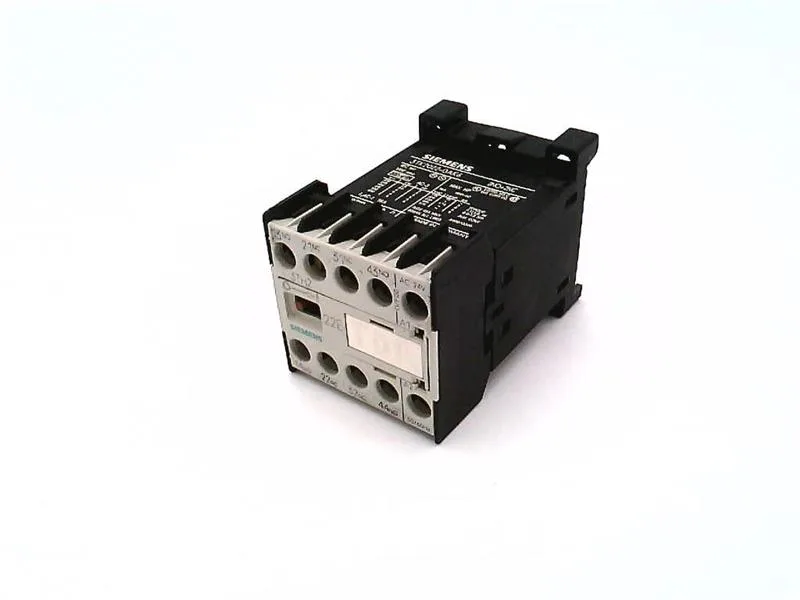

Siemens 3TK2022-0AK6
MPN3TK2022-0AK6
Miniature contactor, Screw terminal, 2 NO + 2 NC Snap-on mounting standard mounting rail 120 V AC 60 Hz/110 V AC 50 Hz AC operation!!! Phased-out product!!! Successor is SIRIUS 3RT23/25
$35.56Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | 0 |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 110 V |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 2 |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Mounting method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 48 mm |
| Depth | 68 mm |
MPN
3TK2022-0AK6
