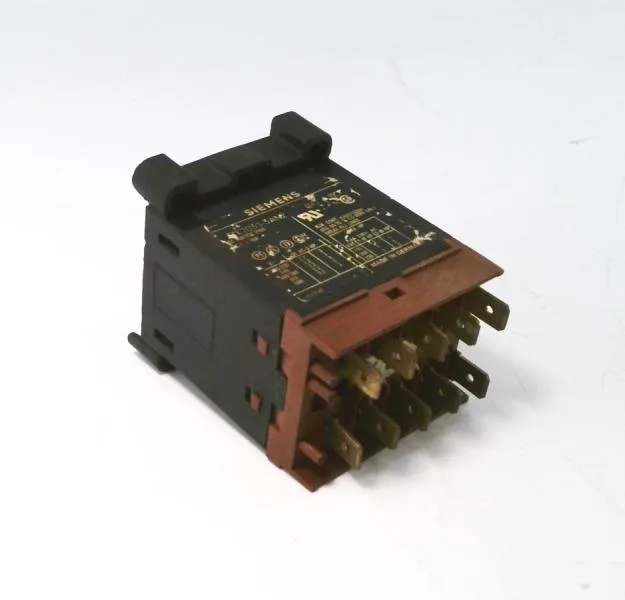

Siemens 3TK2031-3AN2
MPN3TK2031-3AN2
Miniature contactor, flat connector terminal 3 NO + 1 NC Snap-on mounting standard mounting rail 220 V AC 50/60 Hz AC operation!!! Phased-out product!!! Successor is SIRIUS 3RT23/25
$72.01Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | 0 |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 220 V |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 3 |
| Parameter | Value |
|---|---|
| Main circuit connection | tab terminals 6,3 mm |
| Aux. / control circuit connection | tab terminals 6.3 mm |
| Mounting method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 48 mm |
| Depth | 64.5 mm |
MPN
3TK2031-3AN2
