What this relay carries

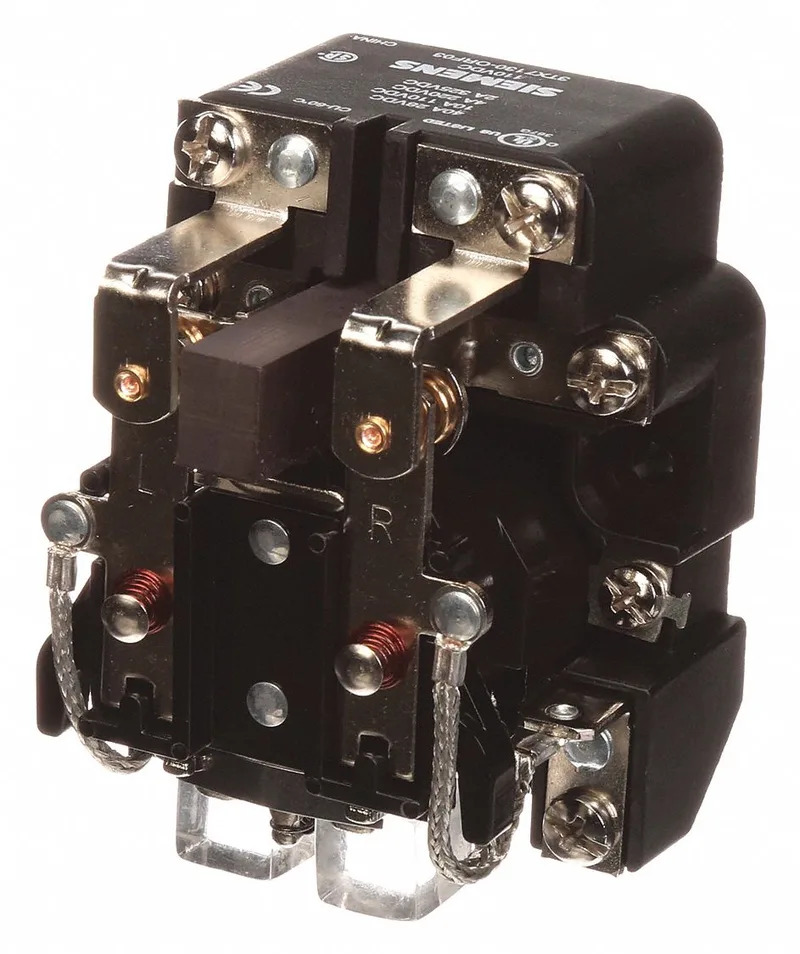

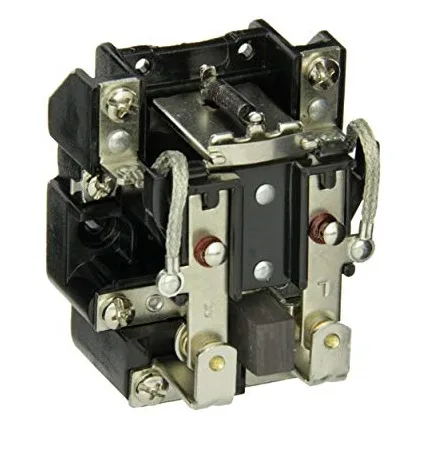

The Siemens 3TX7130-0RF03 is an open power relay from the 3TX71 Series, rated for 40 A continuous current with DPDT contact arrangement. Coil pulls in at 110 VDC — a common DC bus voltage in industrial control panels, so it integrates directly without a separate DC-DC converter for the coil supply. DC contact rating is 40 A at 120 V, which covers most medium-current DC load switching in process skids or conveyor sections. The 1/3 hp at 120 V AC rating confirms it can handle fractional-horsepower motor loads, though the 40 A DC figure is the headline for DC applications. Dielectric strength is specified at 1,500 Vrms between contacts and 2,200 Vrms between coil and contact, and between poles — this gives reasonable isolation for a 110 VDC coil circuit switching 120 VDC loads in the same enclosure.
Durability and mounting
Rated for 100,000 electrical operations and 1,000,000 mechanical operations — the electrical endurance is the limiting factor in a cycling application (e.g., a valve actuator or heater contactor cycling multiple times per hour). Surface-mount style means it bolts to a panel or subplate, not a DIN rail; plan for screw-terminal access and clearance for the 40 A wire gauge. No status indicator and no push-to-test button are fitted — this is a bare relay for panel builders who add their own pilot lights or test circuitry. The absence of those features keeps the footprint compact and the part count lower in a custom panel design.
