Siemens 3TX7130-0RF13 — Motor Control Accessories

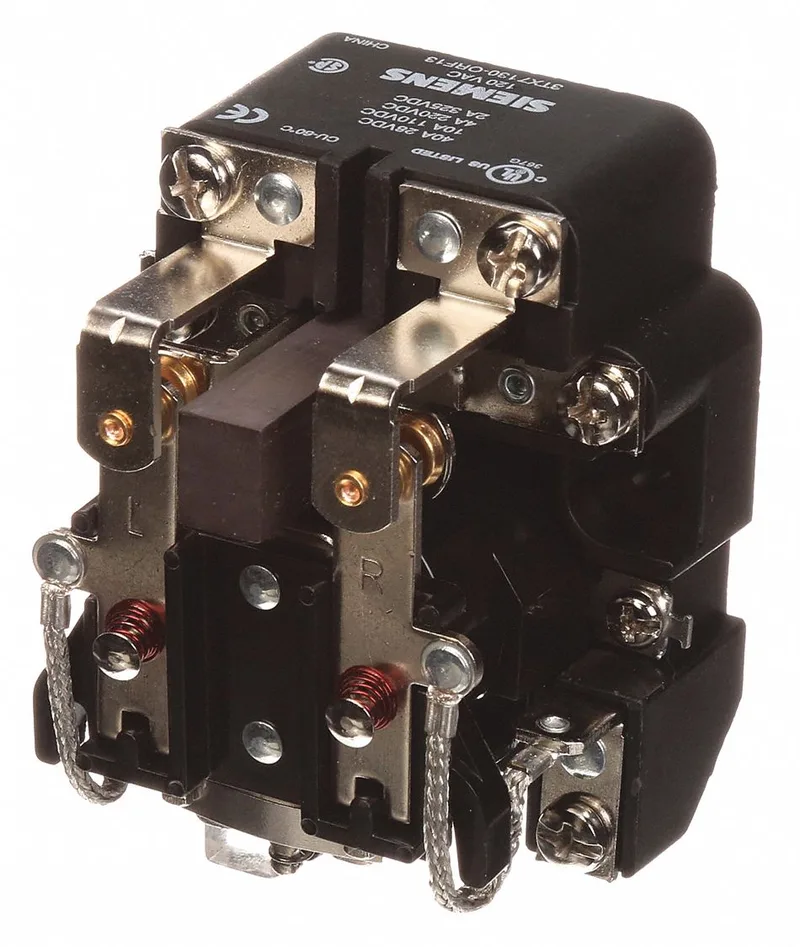

Siemens 3TX7130-0RF13 Plug-In Relay, DPDT, 30 A, 120V AC Coi

MPN3TX7130-0RF13

Siemens 3TX7130-0RF13 plug-in relay, surface mount, DPDT, 30 A current rating, 120V AC coil, motor rated.

$117.65 – $121.81Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3TX7130-0RF13 — Specifications
ParameterValue
Motor ratedYes
Coil voltage120V AC
Contact formDPDT
Current rating30 A
Status indicatorNo Indicator
Contact rating40 A @ 120V
Push-To-Test buttonNo Test Button
Horsepower @ 120V ACNot Rated
Horsepower @ 240V ACNot Rated
Relay mounting styleSurface
Number of pins (Terminals)1

Product details

Relay ratings and fit

The Siemens 3TX7130-0RF13 is a plug-in relay with DPDT contacts rated 30 A continuous, and contact rating of 40 A at 120V AC — so it handles motor loads and general-purpose switching up to that current. Coil is 120V AC, surface-mount package with one pin/terminal. No status indicator or push-to-test button, so plan for external indication if needed.

Surface-mount style suits panel or enclosure baseplates where DIN-rail isn't used. Motor-rated (yes) means it's suitable for switching small motor loads directly — confirm inrush vs. rating for your specific motor.

Frequently asked questions

How do I get current pricing and availability for 3TX7130-0RF13?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — send your quantity for a firm price.

What is the coil voltage and contact rating for 3TX7130-0RF13?

Coil voltage is 120V AC. DPDT contacts are rated 30 A continuous, with a contact rating of 40 A at 120V AC.

MPN
3TX7130-0RF13
