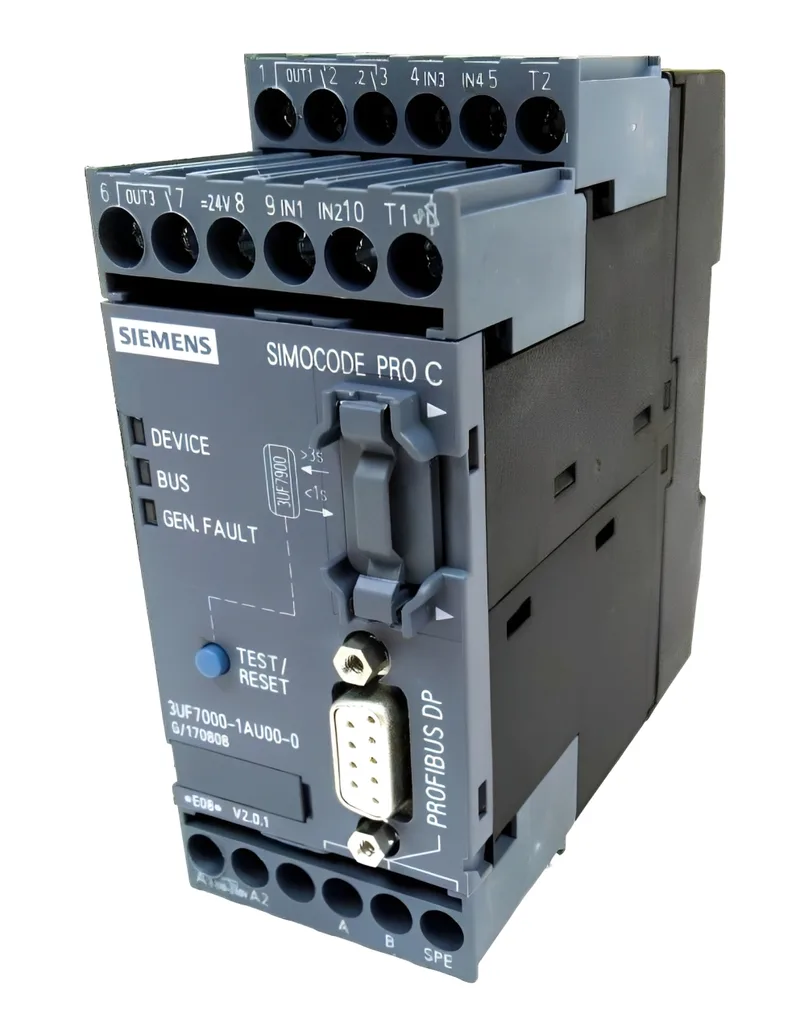

Siemens SIMOCODE pro C control unit, order code 3UF7000-1AU00-0, 110-240 V AC/DC supply, 4 digital inputs, relay output, screw and snap-on mounting.
| Parameter | Value |
|---|---|
| Diagnostics function | Yes |
| Parameter | Value |
|---|---|
| IP protection degree | IP20 |
| Storage temperature range | -40 ... +80 °C |
| Transport temperature range | -40 ... +80 °C |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 111 mm |
| Depth | 95 mm |
The 3UF7000-1AU00-0: Rated supply 110-240 V AC/DC, 50/60 Hz. At 24 V the unit draws 2 A; at 120 V it draws 6 A. The 0.85 initial value suggests a startup inrush margin the field supply must hold.
Screw and snap-on mounting onto DIN rail. Dimensions 111 x 45 x 95 mm (H x W x D) with 40 mm clearance top and bottom, 0 mm left and right. Storage -40 to +80 °C; operation in 5-95 % humidity.
Budget planning and comparing across distributors before purchase.
Immediate availability determines if the order can be fulfilled quickly.
Technical validation of fit, pinout, and electrical ratings for design engineers.
Critical for maintenance and sourcing when the part is obsolete or unavailable.
Ensures compatibility with existing system power supply before installation.
Confirms network compatibility for integration into PLC communication architecture.
