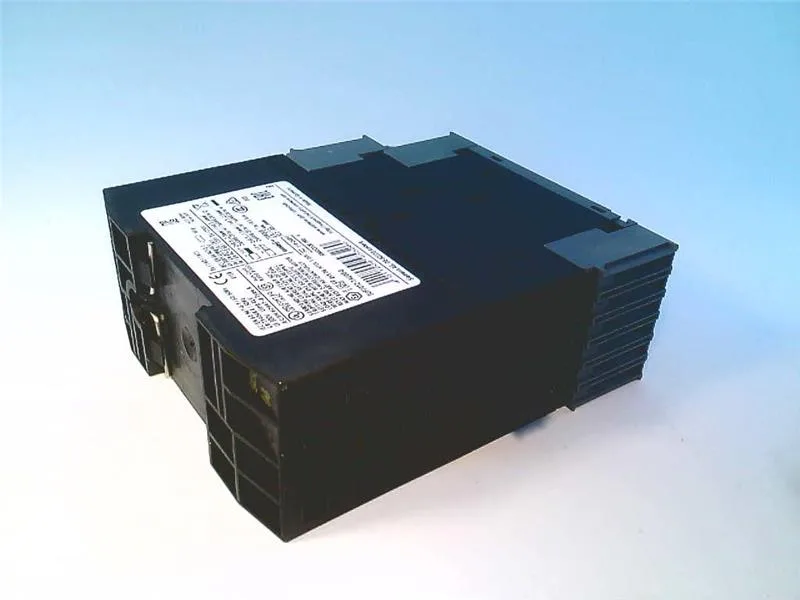

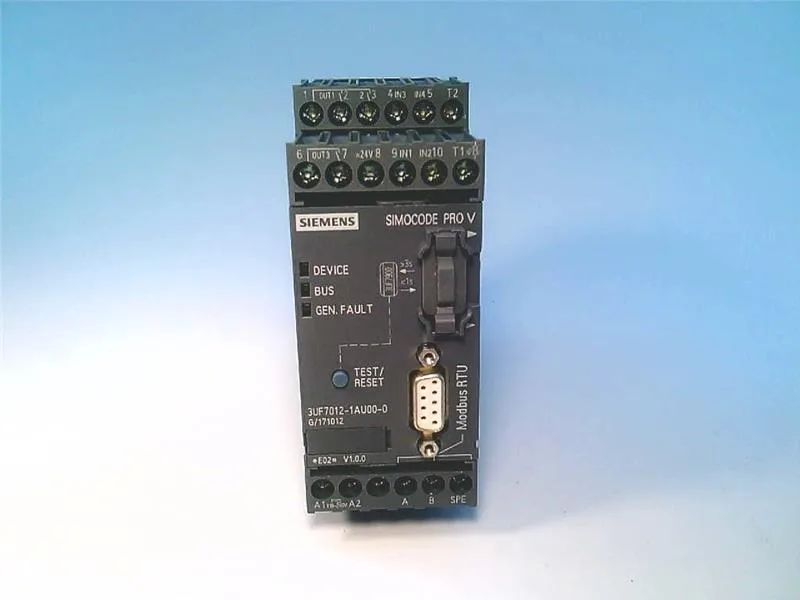

Siemens SIMOCODE PRO V MR Modbus RTU basic unit, 3UF7012-1AU00-0, 110-240 V AC/DC supply, 4 digital inputs, relay output, screw and snap-on mounting, 45 mm width.
| Parameter | Value |
|---|---|
| Diagnostics function | Yes |
| Parameter | Value |
|---|---|
| IP protection degree | IP20 |
| Storage temperature range | -40 ... +80 °C |
| Transport temperature range | -40 ... +80 °C |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 111 mm |
| Depth | 124 mm |
The 3UF7012-1AU00-0: The 111 mm height and 124 mm depth leave clearance for wiring ducts and adjacent modules in a standard enclosure.
Rated supply is 110 to 240 V AC/DC at 50/60 Hz — the same rail voltage that powers many control transformers and distribution blocks in a panel, so no separate 24 VDC power supply is needed for the basic unit. Four digital inputs and one relay output are integrated on the basic unit.
The basic unit includes one relay output, rated 6 A at 50 °C and 5 A at 60 °C.
Stock levels and lead time are confirmed at quote time.
No official cross-reference or direct successor is listed for the 3UF7012-1AU00-0. Confirm the BOM position and I/O count before substituting with any other SIMOCODE variant.
