Key specs for panel fit

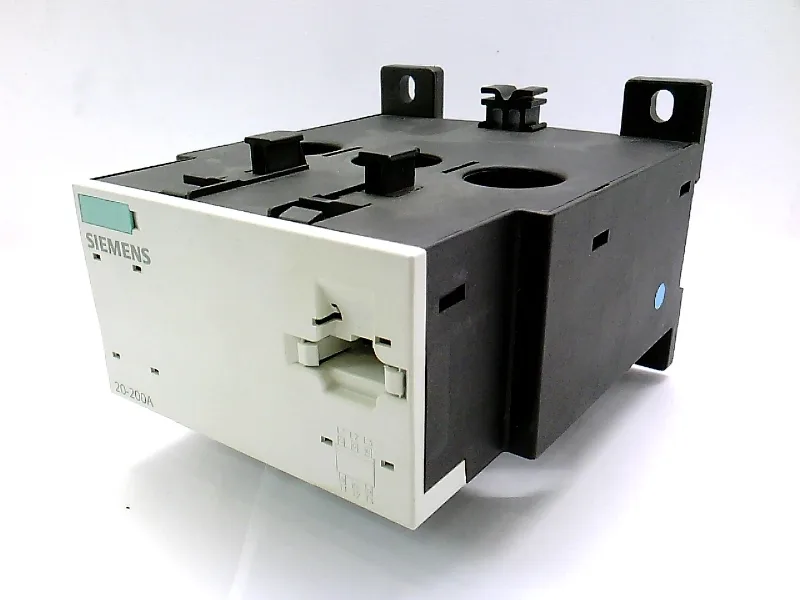

The Siemens 3UF7103-1BA00-0 SIRIUS current measuring module detects motor current and provides overload protection with a Class 5E trip characteristic, handling AC supplies from 110 to 690 V at 50 or 60 Hz. Rated for -25 to +60 °C operation, derating above 2 000 m altitude (max 3 000 m at +50 °C, 4 000 m at +40 °C). Store and transport range: -40 to +80 °C. The module accepts solid/stranded conductors 16 to 95 mm² (with end processing) or AWG 6 kcmil to 300 kcmil. Direct DIN-rail or stand-alone mounting in any position.
