Siemens 3UF7210-1AA00-0 — Motor Management Systems

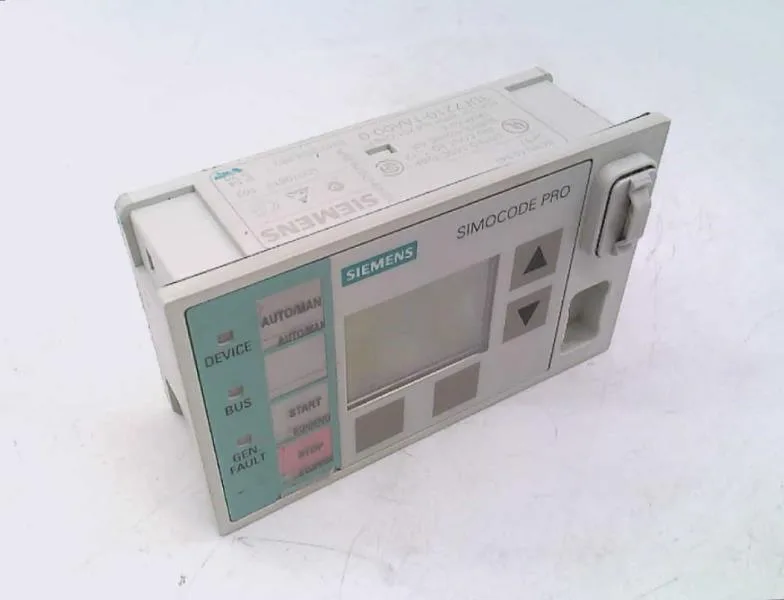

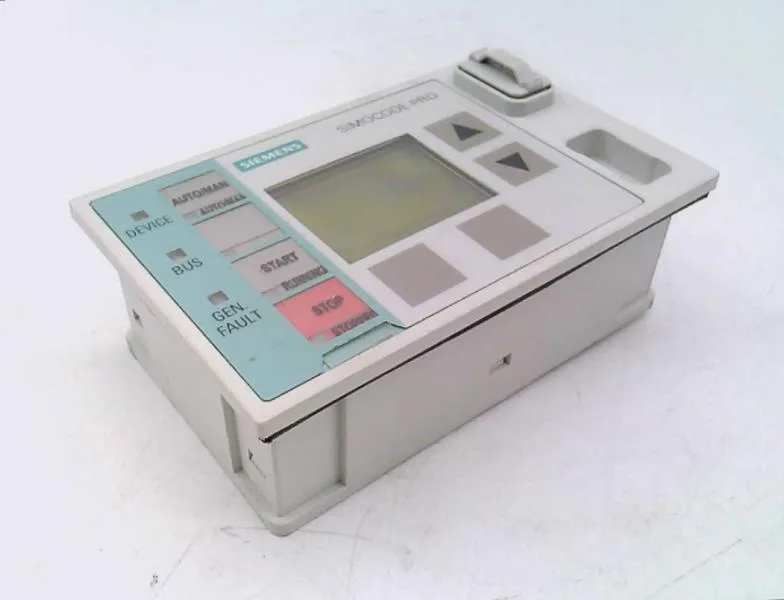

Siemens 3UF7210-1AA00-0 SIRIUS Operator Panel Display

MPN3UF7210-1AA00-0

Siemens SIRIUS operating module with display, 3UF7210-1AA00-0, front panel mounting, IP54 front, 44 mm depth, 96 mm width, 60 mm height.

$214.48Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3UF7210-1AA00-0 key specifications
Parameter	Value
Insulation voltage rated value	300 V
Surge voltage resistance rated value	4 000 V
Mounting position	any
Due to conductor-earth surge acc. to IEC 61000-4-5	2 kV
Vibration resistance	1-6 Hz / 15 mm; 6-500 Hz / 2 g
EMC immunity acc. to IEC 60947-1	corresponds to degree of severity 3
EMC emitted interference acc. to IEC 60947-1	class A
Depth	44 mm
Width	96 mm
Height	60 mm
During storage acc. to IEC 60721	1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
Due to burst acc. to IEC 61000-4-4	1 kV

All specifications

3UF7210-1AA00-0 additional specifications
Parameter	Value
During operation acc. to IEC 60721	3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
During transport acc. to IEC 60721	2K2, 2C1, 2S1, 2M2
Reference code acc. to IEC 81346-2	A
Field-based interference acc. to IEC 61000-4-3	10 V/m
1 maximum	2 000 m
2 maximum	3 000 m; max. +50 °C (no protective separation)
3 maximum	4 000 m; max. +40 °C (no protective separation)
During storage	-20 ... +70 °C
During operation	0 ... 60 °C
During transport	-20 ... +70 °C
Mounting	front panel mounting
Substance prohibitance	01.07.2006 00:00:00
Protection class IP on the front	IP54

Product details

Siemens SIRIUS operating module with display for SIMOCODE pro V, order code 3UF7210-1AA00-0. Plugs onto the basic unit or extension module through the control cabinet door. Front IP54 rated, 7 LED status indicators and 4 freely assignable keys for manual override. Mounting is front panel, sized 96 mm wide by 60 mm tall with a 44 mm depth behind the panel.

Environmental fit and mounting

Operating temperature 0... 60 °C. Altitude: full rating at 2 000 m, derated to max. +50 °C at 3 000 m, and to max. +40 °C at 4 000 m. Vibration 1-6 Hz / 15 mm; 6-500 Hz / 2 g.
