Operator panel for SIMOCODE pro V — front-mount local control

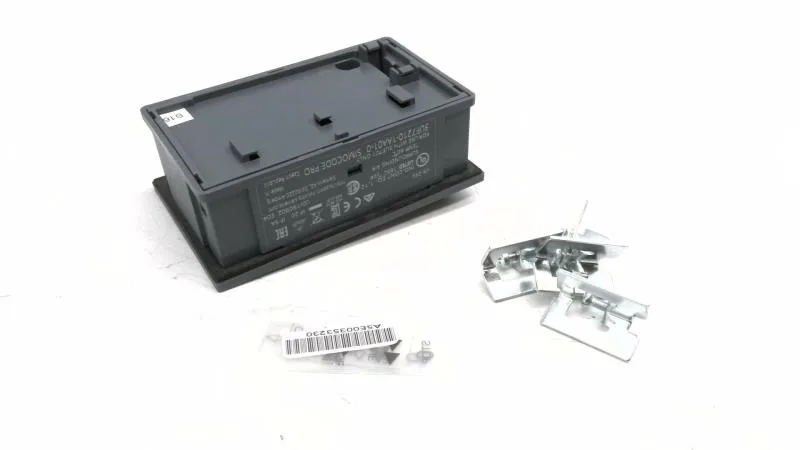

The 3UF7210-1AA01-0: This is a SIRIUS operating module with display, part of the SIMOCODE pro V motor management system. It mounts on the control cabinet door or front plate, providing seven LEDs for status indication and four freely assignable keys for manual control. Color is titanium gray. Rated voltage 300 V, surge voltage resistance 4 kV. EMC immunity severity 3, burst immunity 1 kV. Emissions class A.
Panel cutout and mounting
Fastens via front plate mounting (screw‑type). Required mounting position is vertical. Overall dimensions: 96 mm wide, 60 mm high, 44 mm deep — the depth matters for cabinet door clearance; plan for at least 50 mm behind the panel if wiring exits straight back. Protection class IP54 on the front face; suitable for wash‑down areas if the rest of the enclosure matches.
Environment and reliability
Operating temperature 0…60 °C, storage ‑20…+70 °C. Altitude capability: full rating to 2 000 m, derated to 50 °C at 3 000 m and 40 °C at 4 000 m (no protective separation). Vibration resistance: 1‑6 Hz / 15 mm, 6‑500 Hz / 2 g.
Active sourcing
Lifecycle stage is active. Lead time quoted to order via RFQ.
