What this module does on the line

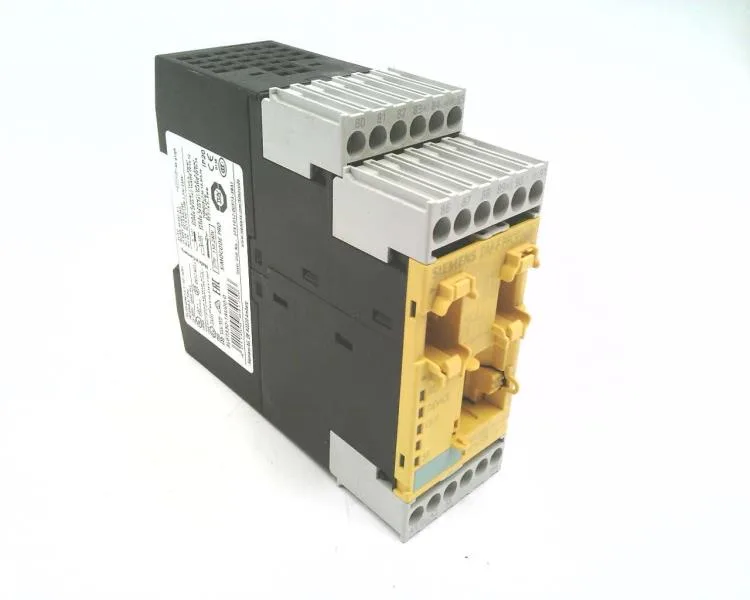

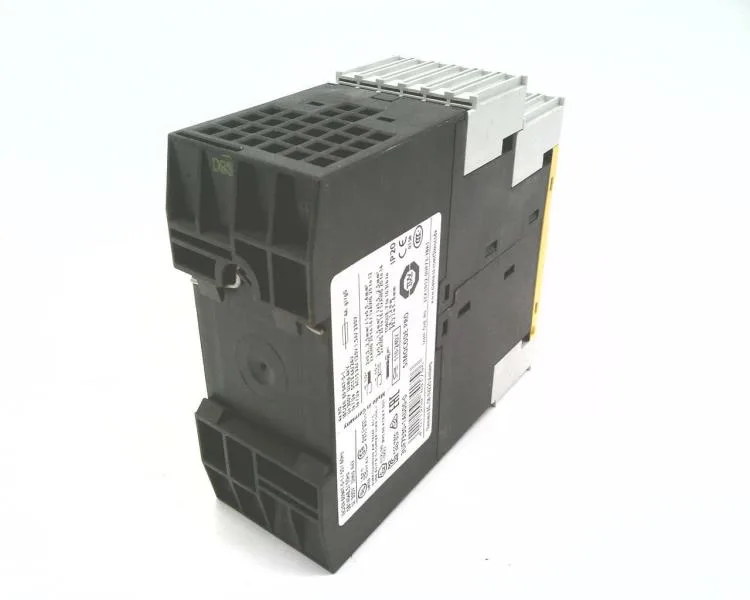

The 3UF7330-1AU00-0 is a Siemens PLC I/O expansion module packing 4 digital inputs and 2 relay outputs into a 45 mm wide housing that screws or snaps onto a DIN rail. It runs on a 110-240 VAC supply, so it fits panels where the control transformer feeds the I/O rack directly without a separate 24 VDC bus for the module. The relay outputs handle 4 A at 24 V, 3 A at 120 V, and 0.11 A at 250 V — enough for direct switching of small contactors, pilot lights, or solenoid valves without an interposing relay.
Mounting and panel fit
Mounts in any orientation via screw or snap-on onto a standard DIN rail — the 45 mm width and 106 mm height leave room for adjacent modules in a crowded enclosure. Operating range is -25 to +60 °C, with storage from -40 to +80 °C — fine for unheated plant floors or climate-controlled cabinets. Altitude derating applies: full spec to 2,000 m, then derate to 3,000 m at +50 °C and 4,000 m at +40 °C — relevant for high-altitude installations like mining or mountain sites.
