Siemens 3UG3013-1BL60 — Process / Temperature Controllers

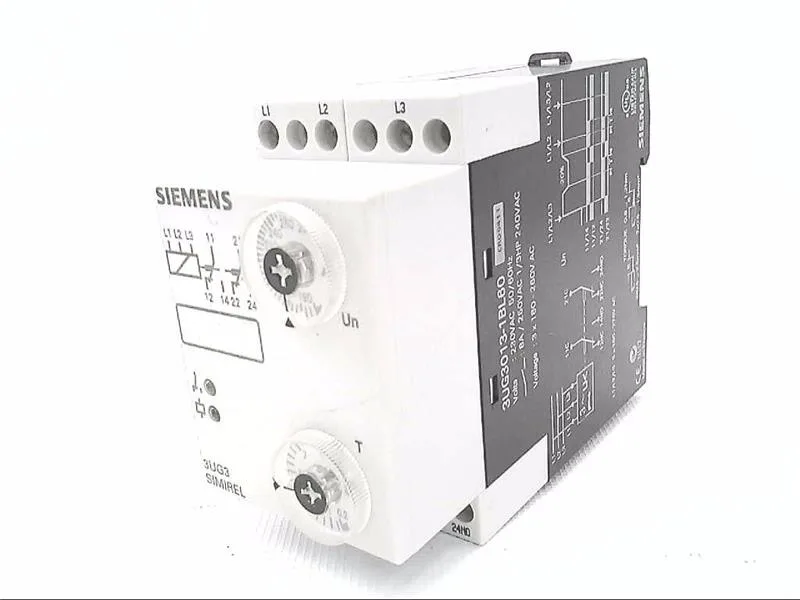

Siemens 3UG3013-1BL60 SIRIUS Monitoring Relay, 3-Phase 180-2

MPN3UG3013-1BL60

Siemens SIRIUS 3UG3013-1BL60, discontinued 3-phase voltage monitoring relay, 45 mm, undervoltage detection, 2 changeover contacts, AC 3x180…260 V 50/60 Hz, screw connection.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3UG3013-1BL60 — Identification
ParameterValue
Product line / brand nameSIRIUS
3UG3013-1BL60 — Other specifications
ParameterValue
Reference code acc. to DIN EN 81346-2K

Product details

The 3UG3013-1BL60: The relay monitors three-phase voltage in the range 180…260 V AC, 50/60 Hz. That means it is sized for nominal 230 V line-to-line systems with undervoltage detection; it will not work on 400 V supplies without a step-down transformer. The two changeover contacts (CO) give one normally-open and one normally-closed set per contact, suitable for signalling an alarm or tripping a downstream contactor. Screw terminals accept standard panel wiring.

Three-phase voltage monitoring relays like this one are installed in motor control centres, pump panels, and conveyor systems to protect equipment from phase loss, undervoltage, or phase sequence reversal. The reference code K per DIN EN 81346-2 confirms its role as a monitoring/control device in industrial schematics.

Frequently asked questions

What replaces the 3UG3013-1BL60?

The official replacement type is the 3UG4513-1BR20. That part should be verified for the same 3-phase voltage range and mounting footprint before specifying.

What are the key ratings of the 3UG3013-1BL60?

It monitors 3-phase voltage 3x180…260 V AC at 50/60 Hz, has 2 changeover contacts, screw connection, and a 45 mm housing.
